WEMHÖNER - Variopress Basic 1000SDE-PRE-WEM-2018-00001

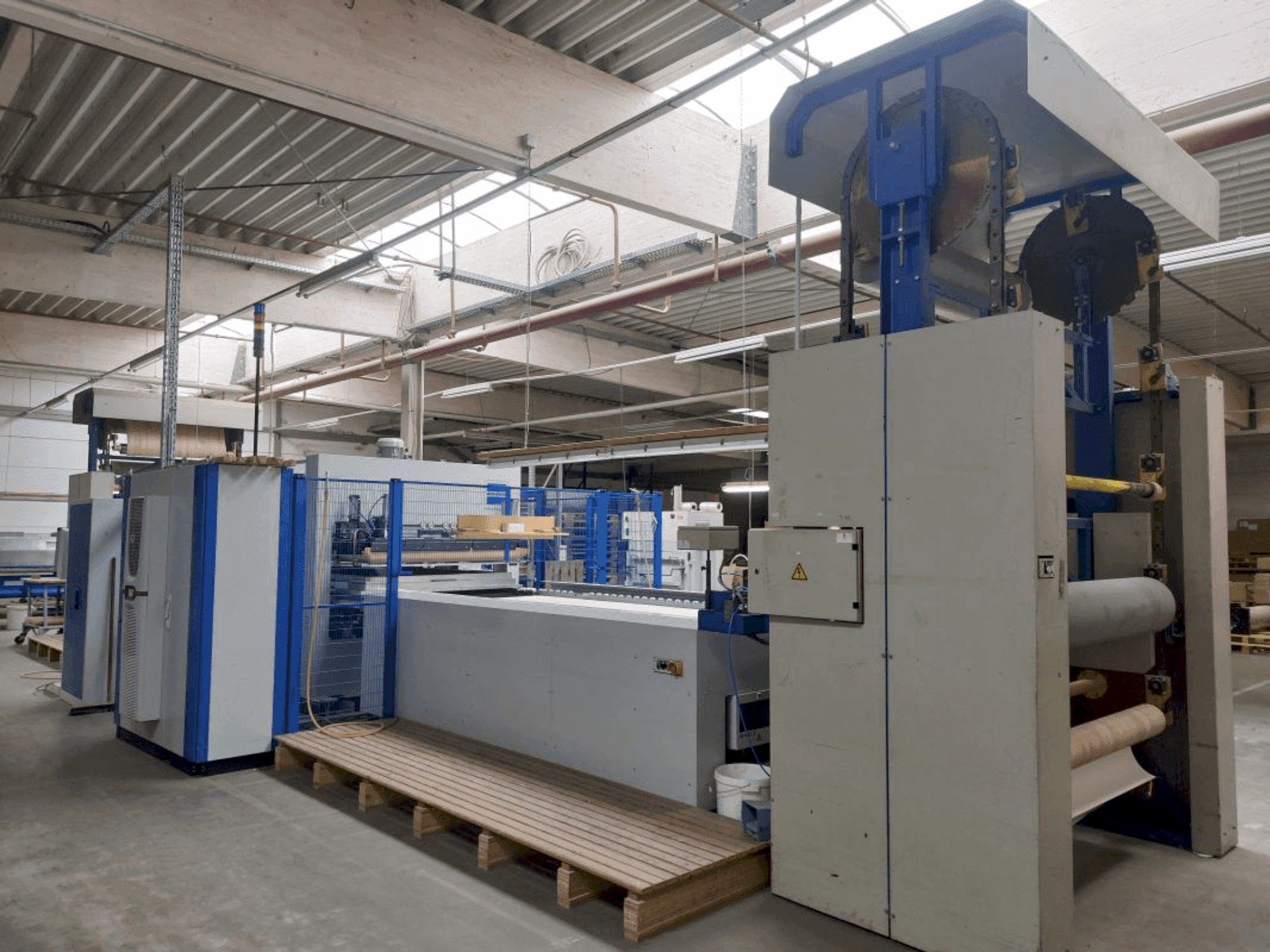

Name: WEMHÖNER Variopress Basic 1000S
Brand: WEMHÖNER
SKU: DE-PRE-WEM-2018-00001
Price: 53070 GBP
Availability: InStock

£ 53,070

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Wood Working
➤ Used WEMHÖNER Variopress Basic 1000S | Laminating Press

Show in original language

used vacuum press with 3 paternoster magazines Brand: Wemhöner Type: Variopress - Basic Year of construction: 2018 Technical data Heating plate format (mm) 2850 x 1550 Electric heating plate design Aluminum heating plate top Total pressing force (kN) 2400 Chamber pressure max. (bar) 6 Operating temperature max. 180 degrees Celsius Batch or workpiece size max. (mm) approx. 2460 x 1180 Thermoplastic film in rolls Width of the film: approx. 1430 mm Thickness of the film (mm) approx. 0.25 - 1 Pressure chamber height (mm) max. up to 180 Connection values: Installed power (kW) approx. 46 Required air pressure (bar) approx. 8 Including 3 x paternoster magazines for film rolls

Overview

brand: WEMHÖNER
year: 2018
MODEL: Variopress Basic 1000S
application type: Pressing / Laminating
Location: Germany
machine type: Laminating Press
control unit brand: SIEMENS

Technical Information - WEMHÖNER Variopress Basic 1000S

Control Unit

Control Brand: SIEMENS
Control Model: SIMATIC HMI

Additional Information

Additional equipment

Including: 3 x paternoster magazines for film rolls

Machine Benefits

Technical Machine Benefits

Heating plate format (mm): 2850 x 1550
Electric heating plate design: aluminum heating plate top
Total pressing force (kn): 2400 / chamber pressure max (bar): 6 / operating temperature max: 180 degrees celsius / batch or workpiece size max (mm): approx. 2460 x 1180
Thermoplastic film in rolls, width of the film: approx. 1430 mm / thickness of the film (mm): approx. 0. 25 - 1 / pressure chamber height (mm): max. Up to 180
Connection values: installed power (kw): approx. 46 / required air pressure (bar): approx. 8

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
