MASTER - PUR-1400PL-PRE-MAS-2016-00001

Process: Single-sided lamination with PUR hot melt adhesive

Applications: Furniture panels, interior components, wall panels, decorative boards

Suitable substrates: MDF, particleboard, plywood, PVC boards, gypsum boards, other wood-based panels

Compatible surface materials: Acrylic sheets (high gloss & super matt), PET foil, PVC foil, HPL, CPL, decorative paper

Working width: 1,400 mm

Maximum panel size: 2,800 × 1,300 mm

Panel thickness: 2–40 mm

Production speed: 5–17 m/min

Output capacity: 3–5 panels/min

Maximum productivity: up to approx. 1,200 panels per 8-hour shift

Installed motor power: 21.49 kW

Heating power: 51.7 kW

Overall machine dimensions: approx. 16 × 2.5 × 2 m

Required installation area: minimum 6 × 22 m

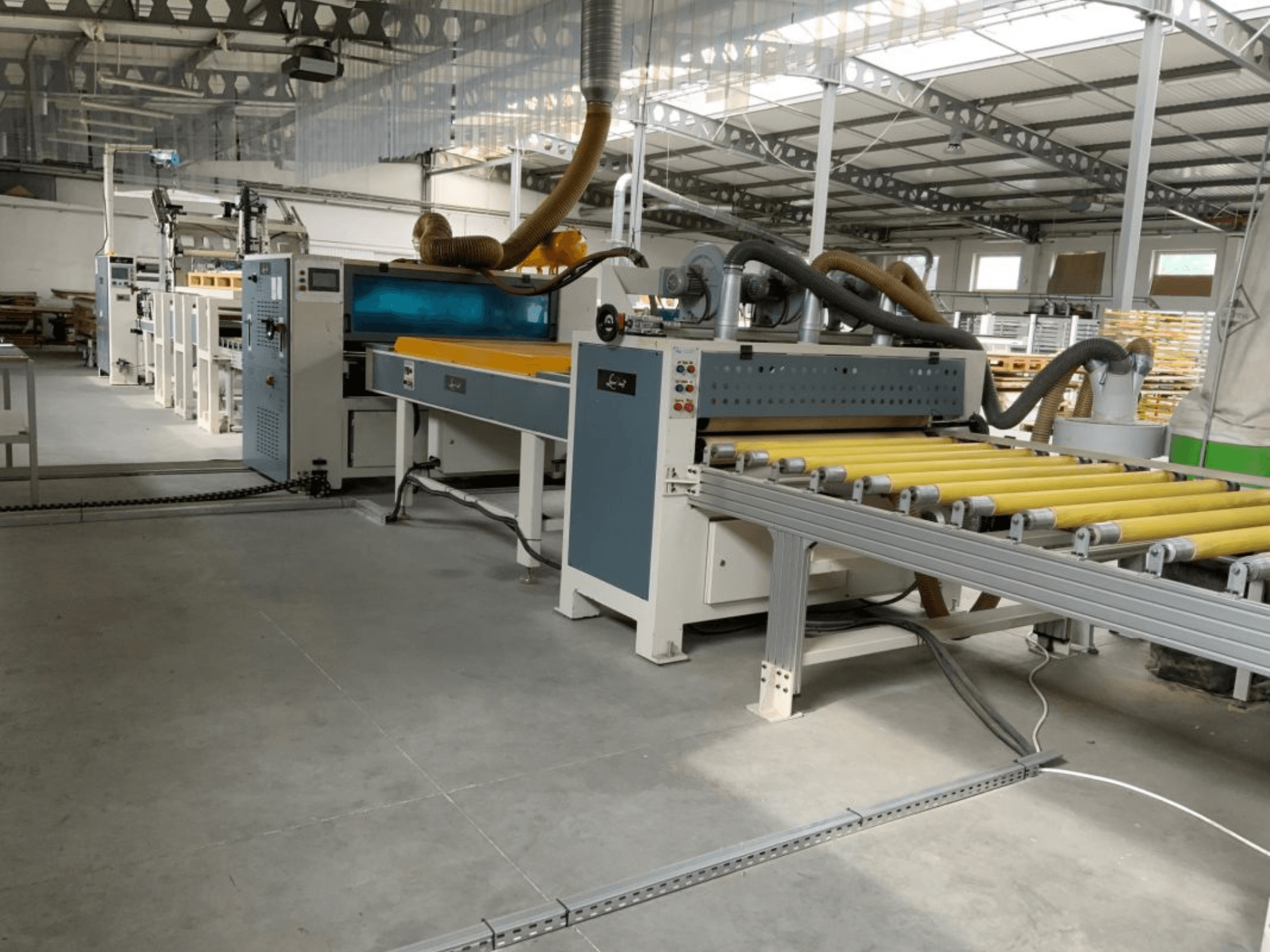

Line includes:

• Automatic loading system with roller conveyor

• Panel cleaning brush unit

• Infrared (IR) preheating oven

• 3-roll PUR adhesive application system

• Decorative material feeding station

• Pressure roller laminating press

• Discharge conveyor

• 208-litre PUR hot melt adhesive melting unit

Advantages: Excellent laminating quality, uniform PUR application, suitable for high-gloss and super-matt acrylic, low adhesive consumption, stable continuous operation, high efficiency, easy operation and maintenance

Condition: Used
