Barberan - PUR 46 LDE-PRE-BAR-2008-00001
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Wood Working
- ➤ Used Barberan PUR 46 L For Sale | gindumac.com

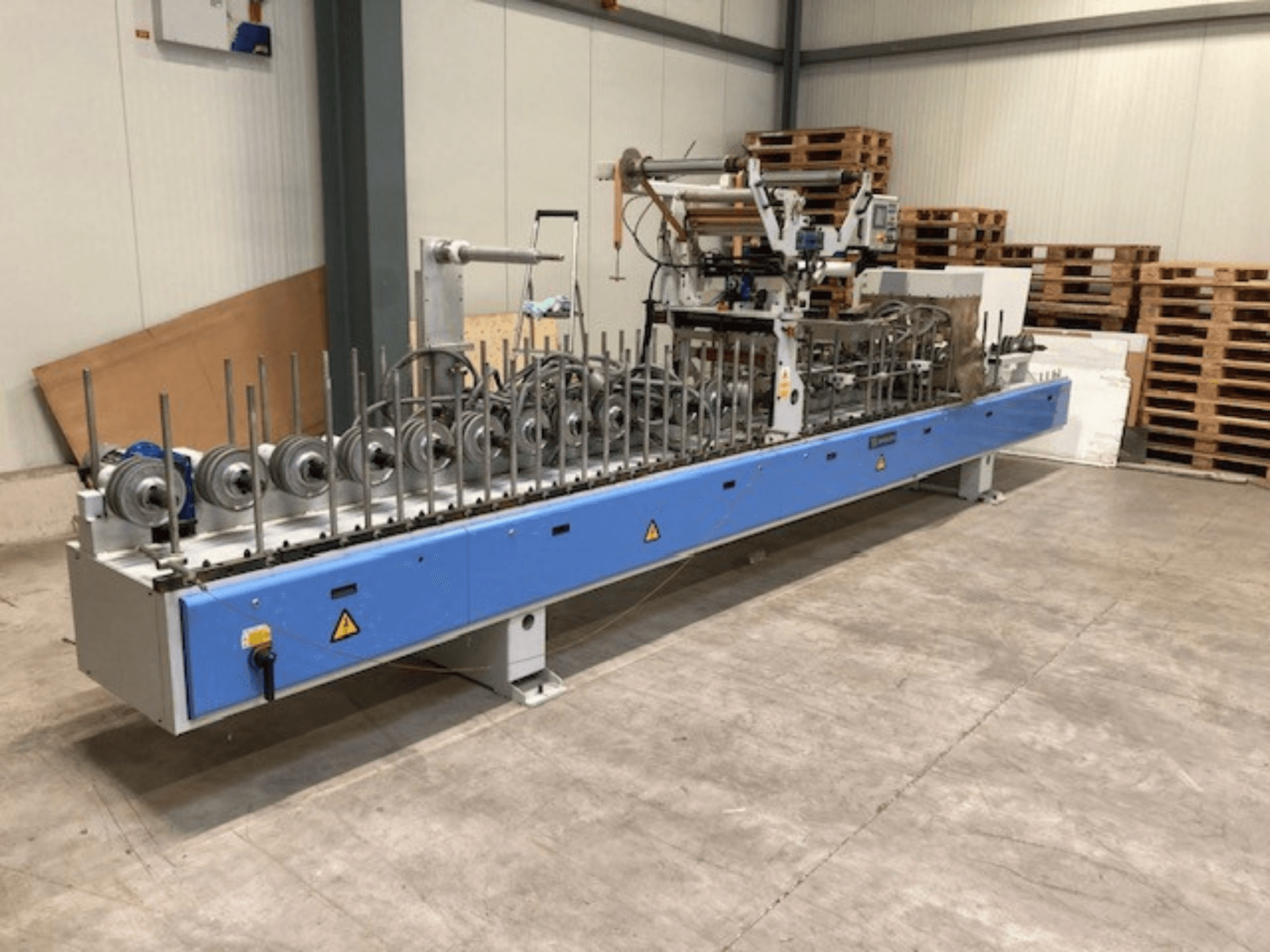

Laminating press manufactured in 2008. This Barberan PUR 46 L features a total power of 45.5 kW and operates at a voltage of 400 V. The machine dimensions are approximately 7000 × 1350 × 2100 mm, with a weight of around 2200 kg. If you are looking to get high-quality laminating capabilities, consider the Barberan PUR 46 L machine we have for sale. Contact us for further details regarding this machine.
Overview
- brand: Barberan
- year: 2008
- MODEL: PUR 46 L
- application type: Pressing / Laminating
- Location: Germany
- machine type: Laminating Press
Technical Information - Barberan PUR 46 L
Dimensions
- Machine Height: 2100 mm
- Machine Length: 7000 mm
- Machine Weight: 2200 kg
- Machine Width: 1350 mm
Additional Information
Total power: 45.5 kW
Power supply voltage: 400 V
Operating voltage: 110 V
Current type: AC
Frequency: 50 Hz
Motor protection: IP55
Air pressure: 6 bar
Air consumption (primer): 100 NL/min
Air consumption: 40 NL/min
Extraction diameter: Ø100 mm
Air flow rate: 700 m³/h
Additional equipment
Pre-melter: approx. 200 kg; dimensions approx. 1050 × 820 × 1830 mm
Flame treatment unit with ozone filter: approx. 500 kg
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
