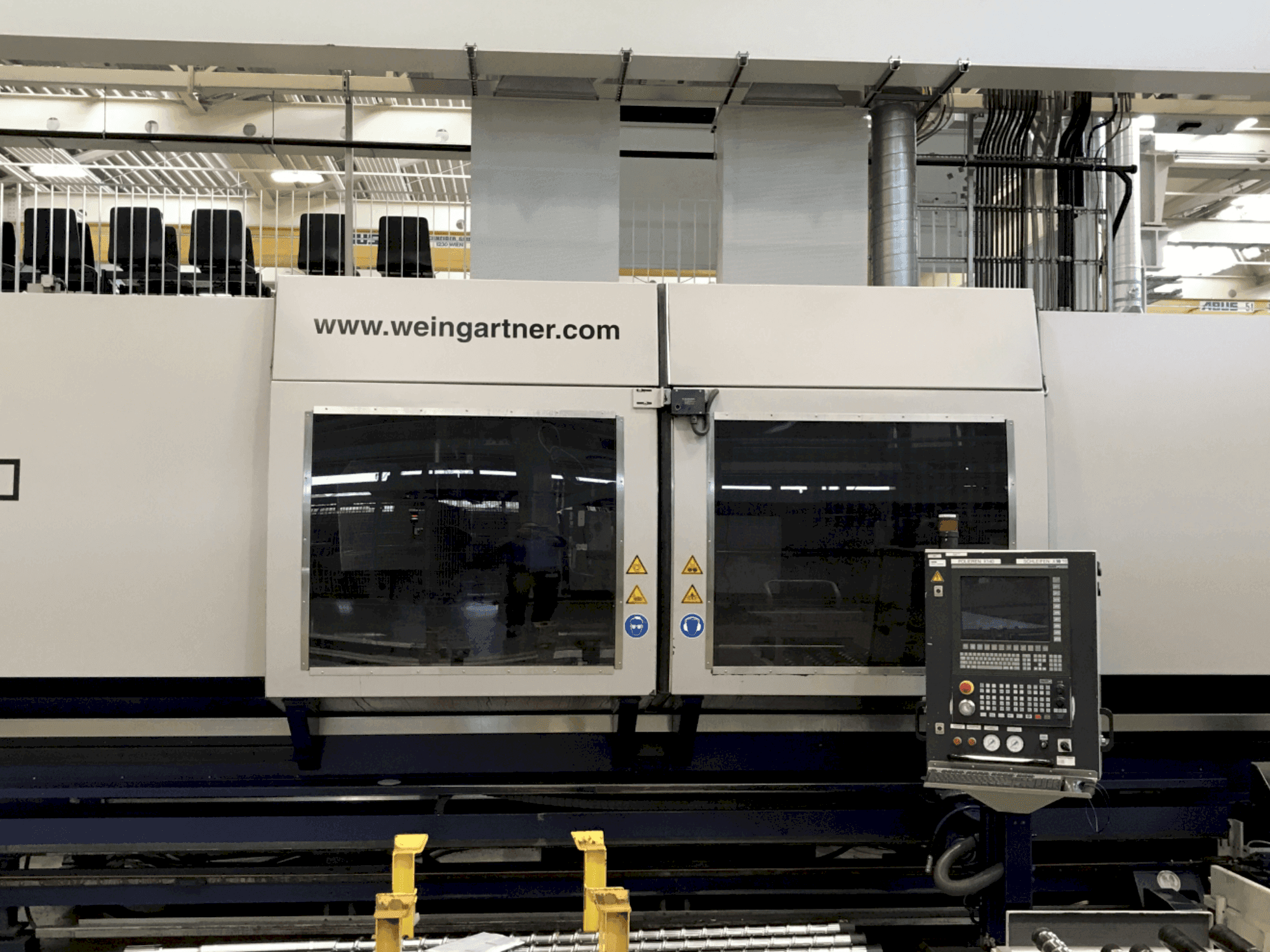

This 5-Axis WEINGÄRTNER Finish 450/3000 grinding machine, manufactured in 2009, integrates a NUM Axium Power control system for precision operations. It features a manual 3-jaw chuck with a 128mm passage diameter and a workpiece capacity of up to 320mm in diameter and 3000mm in length, with a maximum weight of 3500kg including support. The machine’s work spindle offers speeds tailored to the workpiece diameter, enhancing versatility. Buy this WEINGÄRTNER Finish 450/3000 grinding machine for specialized finishing tasks. For more information about this grinding machine, please reach out to us.
Overview
- brand: Weingartner
- year: 2009
- MODEL: Finish 450/3000
- application type: Grinding
- Location: Austria
- machine type: Grinding machines
- availability: Immediately
- control unit brand: NUM
- GINDUMAC ID: AT-GRI-WEI-2009-00001
Technical Information
General Data
- Measurements width: 4500 mm
- Measurements depth: 6000 mm
- Measurements height: 2900 mm
- Machine weight: 12900 kg
Control Unit
- Brand: NUM
- Model: Axium Power
Main drive
- Number of spindles: 1
- Spindle speed range: 120 rpm 1/MIN
- Number of axis: 5
Movement
- X-AXIS Movement: 200 mm
- X-AXIS Rapid traverse: 5m/min
- Z-AXIS Movement: 3500 mm
- Z-AXIS Rapid traverse: 15m/min
- W-Axis Movement: 3500 mm
- W-Axis Rapid traverse: 10 m/min
Workpiece
- Workpiece weight: 3500 kg
Additional Equipment
- - 3-jaw chuck with passage diameter 128mm
- - Coolant system with 300L tank
- - Sanding belt and sisal disk for surface finishing
Additional Information
- Technical Machine Benefits:
- - A-axis: swivel range +/- 70°
- - Workpiece diameter max: 320 mm
- - Workpiece length max: 3000 mm
- - Advanced control system for precision grinding.
- - Multiple rapid traverse options to reduce non-cutting time.
- Qualitative Machine Benefits:
- - High precision and versatility in handling different sizes and weights of workpieces.
- - Stability and accuracy in grinding operations, enhanced by specific design features such as pneumatic weight compensation.
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
