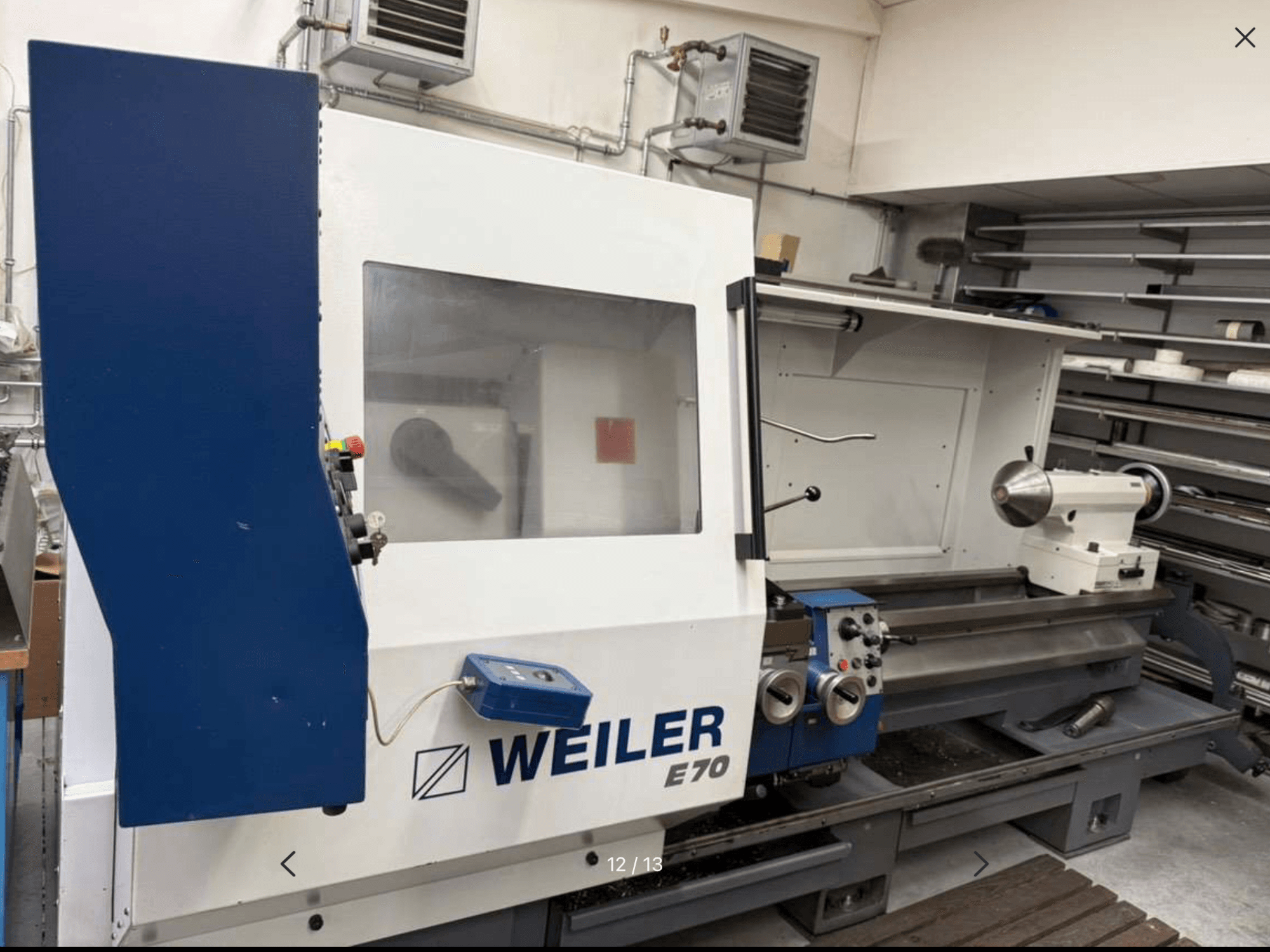

Horizontal turning machine manufactured in 2008. This Weiler E70 / 2000 features a swing over bed of 720 mm and a maximum workpiece weight of 2,500 kg. It includes a steady rest, tailstock, and faceplate, providing versatility for various applications. With a spindle speed range of 1 – 1,800 rpm and a robust main drive power of 37 kW, this machine is designed for precision. If you are looking to get high-quality turning capabilities, consider the Weiler E70 / 2000 machine we have for sale. Contact us for further details.
Overview
- brand: Weiler
- year: 2008
- MODEL: E70 / 2000
- production hours: 22491
- application type: Turning
- Location: Austria
- machine type: Horizontal Turning Machine
Technical Information - Weiler E70 / 2000
Dimensions
- Machine Height: 1930 mm
- Machine Length: 4250 mm
- Machine Weight: 5500 kg
- Machine Width: 2120 mm
Movement
- Number of Axes: 2
- X-axis Travel: 410 mm
Technical Specification
- Spindle Power: 37 kW
- Spindle Speed: 1800 RPM
Additional Information
Working range and capacities:
Swing over bed: 720 mm
Swing over cross slide: 430 mm
Center height: 360 mm
Distance between centers: 1,000 / 2,000 / 3,000 / 4,000 / 6,000 mm
Bed width: 480 mm
Max workpiece weight (unsupported): 2,500 kg
Max workpiece weight (with steady rest): 3,800 kg
Spindle and headstock:
Spindle bore (standard): 106 mm
Spindle bore (options): 128 / 165 / 216 / 262 / 317 mm
Spindle nose: DIN 55027 size 11
Max torque at spindle: 3,150 Nm
Feeds and movement:
Z-axis rapid traverse: 10,000 mm/min (10 m/min)
X-axis rapid traverse: 5,000 mm/min (5 m/min)
Feed force (Z): 20,000 N
Feed force (X): 10,000 N
Tailstock:
Quill diameter: 115 mm
Quill stroke: 225 mm
Inner taper: MK 6 (Morse Taper)
Threading capabilities:
Metric threads: 0.1–400 mm
Inching threads: 1/4–56 TPI
Module threads: 0.125–28 mm
DP threads: 1–224 DP
Hours: 22,491 h
Additional equipment
Steady rest
Tailstock
Faceplate
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
