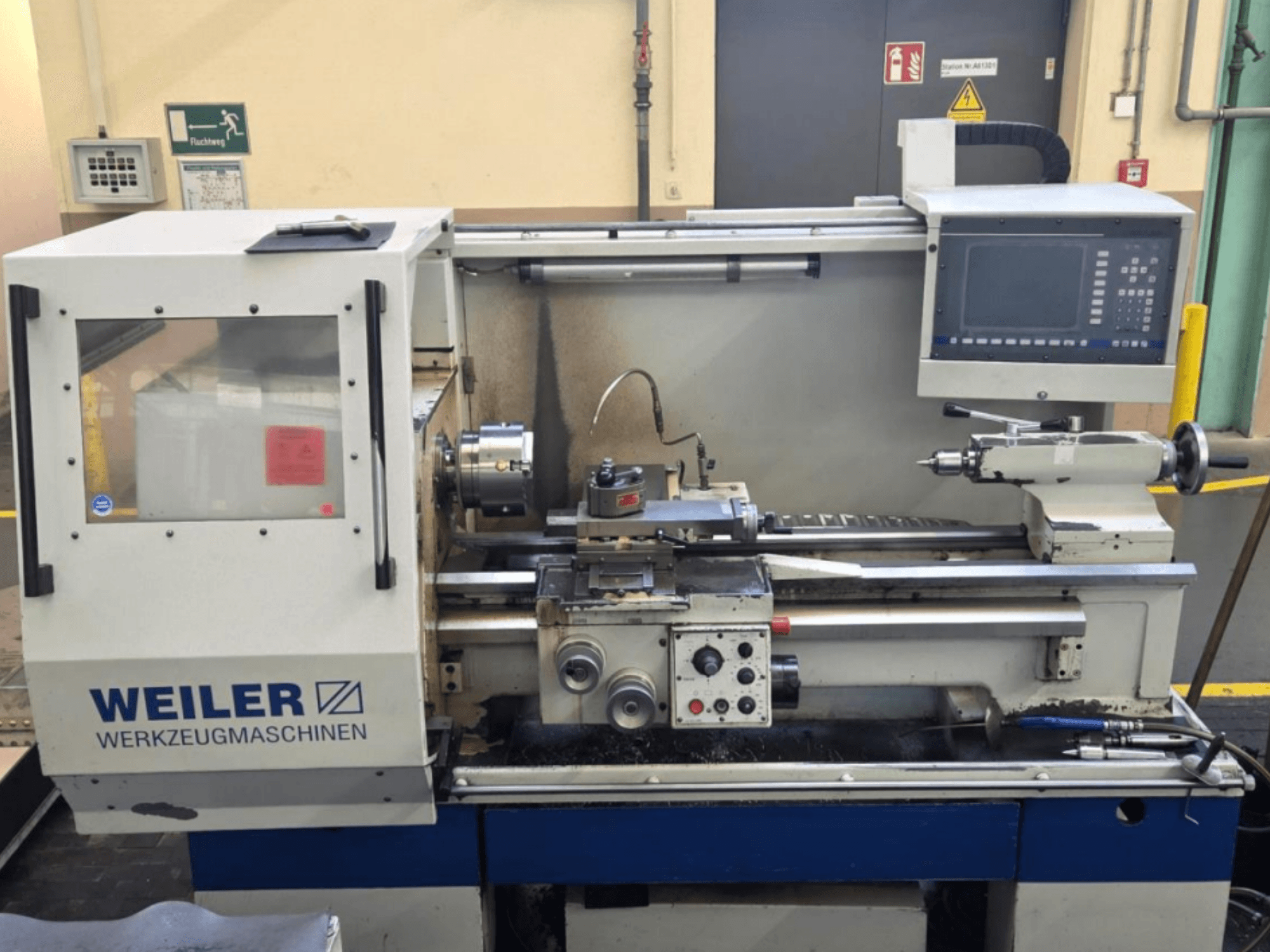

Horizontal turning machine manufactured in 1999. This Weiler E35 D features a Siemens Sinumerik 810D control with Weiler D1 user software and a 12.1-inch TFT color flat screen. It includes a coolant unit with a flow rate of 30 l/min and a tool holder for quick-change operations. If you are looking to get high-quality turning capabilities, consider the Weiler E35 D machine we have for sale. Contact us for further details.
Overview
- brand: Weiler
- year: 1999
- MODEL: E35 D
- production hours: 59343
- application type: Turning
- Location: Germany
- machine type: Horizontal Turning Machine
- control unit brand: SIEMENS
Technical Information - Weiler E35 D
Control Unit
- Control Brand: SIEMENS
- Control Model: Sinumerik 810D
Dimensions
- Machine Height: 1700 mm
- Machine Length: 2300 mm
- Machine Weight: 2100 kg
- Machine Width: 1400 mm
Movement
- Number of Axes: 2
- X-axis Travel: 230 mm
- Z-axis Travel: 950 mm
Technical Specification
- Counter Spindle: No
- Driven Tools: No
- Spindle Speed: 30000 RPM
- Through-spindle Coolant: No
Additional Information
Control: Siemens Sinumerik 810D with Weiler D1 user software
Center distance: 950 mm
Turning length: 950 mm
Swing over bed: 410 mm
Swing over cross slide: 200 mm
Bed width: 330 mm
Cross slide travel: 230 mm
Top slide travel: 120 mm
Tailstock quill diameter: 65 mm
Tailstock quill stroke: 120 mm
Tailstock internal taper: MK 4
Feed force (longitudinal/transverse): 8000 N / 5000 N
Rapid traverse (longitudinal/transverse): 10/5 m/min
Tool cross-section: 25x25 mm
Display: 12.1-inch TFT color flat screen
Drive power (60/100% duty cycle): 11/9 kW
Dimensions (L x W x H): 2300 mm x 1400 mm x 1700 mm
Weight: 2100 kg
Spindle speed range (1st stage): 1-750 rpm
Spindle speed range (2nd stage): 4-3000 rpm
Max. torque at spindle: 700 Nm
Spindle mount (DIN 55027): Size 6
Spindle diameter (front bearing): 90 mm
Spindle bore: 54 mm
Spindle taper: MK 6
Operating voltage: 400 V
Control voltage: 24 V
Connected load: 14 kW
Nominal current: 26 A
Frequency: 50 Hz
Main fuses: 35 A
Coolant unit: 30 l/min at 0.4 bar
Tool holder: Multifix quick-change size B
Features: Teach-in functions; graphic-supported contour programming; V-24 interface; electronic handwheel for manual contour following
Additional equipment
Included accessories: 1 change holder; fixed center point; spindle plug; key set; manuals; chip protection wall; movable splash guard; chuck guard with limit switch monitoring
Optional equipment included: Fixed steady rest with roller jaws (12–150 mm); adjustable hollow spindle stop; lever-operated collet chuck for DIN 6343-48 (173E)
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
