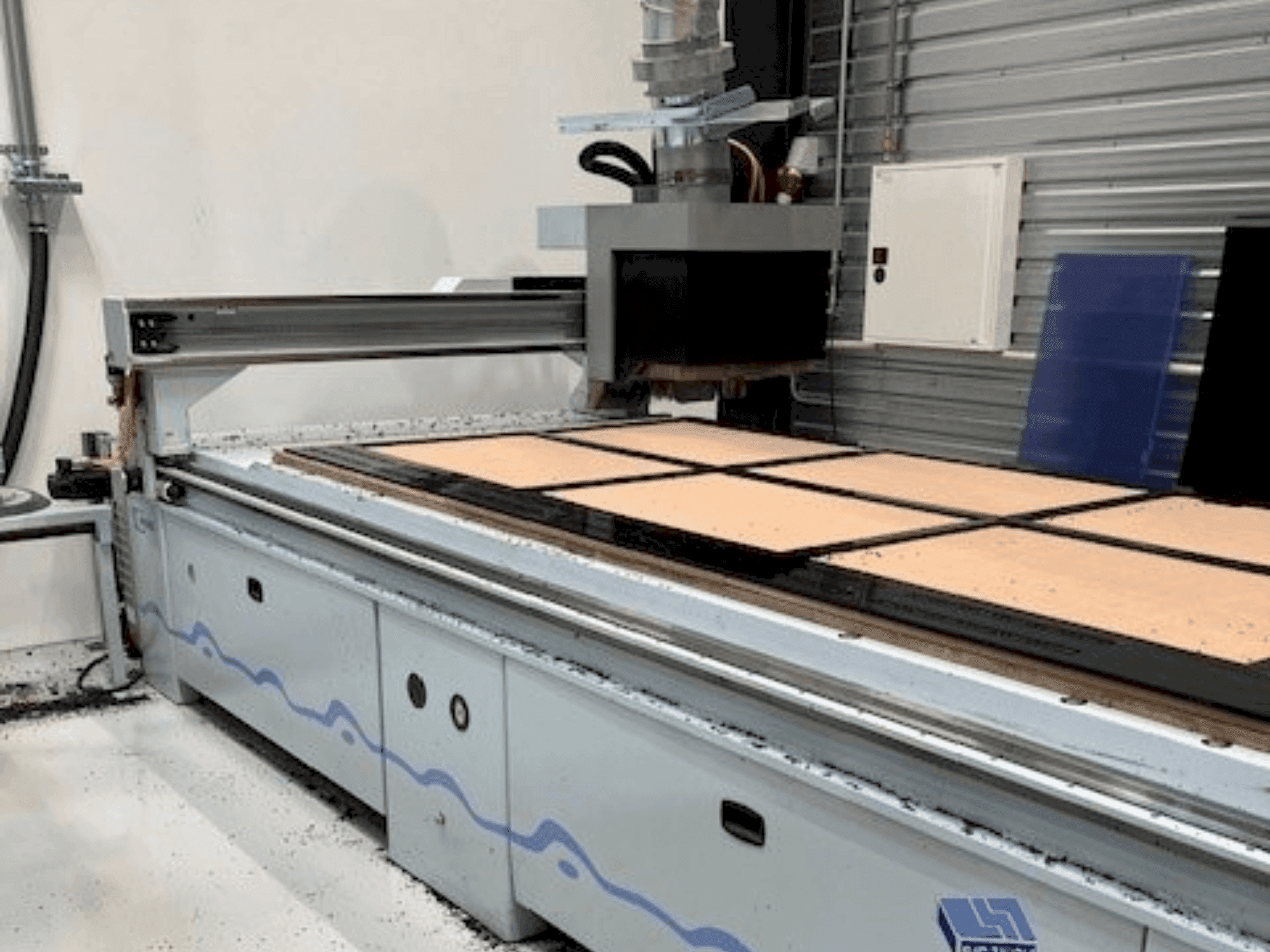

Front view of Weeke Optimat BHP Vantage 34M machine
Front view of Weeke Optimat BHP Vantage 34M machine

Weeke - Optimat BHP Vantage 34MDK-CNC-WEE-2008-00001

£ 34,695
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This 3-axis Weeke Optimat BHP Vantage 34M was manufactured in 2008. Ideal for precision CNC routing, this machine offers robust construction and reliable performance. If you are looking to get high-quality routing capabilities, consider the Weeke Optimat BHP Vantage 34M machine we have for sale. Contact us for more information.

Overview

  • brand: Weeke
  • year: 2008
  • MODEL: Optimat BHP Vantage 34M
  • application type: CNC Wood Machining
  • Location: Denmark
  • machine type: CNC Router

Technical Information - Weeke Optimat BHP Vantage 34M

Movement

  • Number of Axes: 3
  • X-axis Travel: 3780 mm
  • Y-axis Travel: 1951 mm
  • Z-axis Travel: 155 mm

Additional Information

Machine Benefits

Technical Machine Benefits

  • Work table dimensions: 3100 x 1550 mm
  • Max workpiece thickness: 80 mm
  • Design: stable gantry design with dust-protected linear guide system
  • Drive technology: maintenance-free motors and automatic central lubrication

Extra Information

Tools Drilling Unit Specs: Spindle Speed: 1500 - 7500 rpm Drive Power: 2.7 kW Max Drill Diameter: 35 mm Milling Spindle Specs: High Spindle Speed: 1250 - 24000 rpm Max Power: up to 7.5 / 9 kW in continuous/intermittent operation (S1/S6-50%) Control Unit Control System: Modern PC-based control Hardware: Operating System: Windows XP Embedded TFT Flat Screen: 17 inches Connectivity: USB, EtherNet 10/100 MBIT RJ45 Table Matrix Table: 10'/5', with grooves for templates and vacuum suction cups Vacuum System: 500/600 m³/h, 50/60 Hz Finally, the machine offers a comprehensive software suite for CNC programming and operation, including woodWOP and 3D NC simulation capabilities.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
