➤ Used SCM ACCORD 20 - CNC Router For Sale | gindumac.com

Show in original language

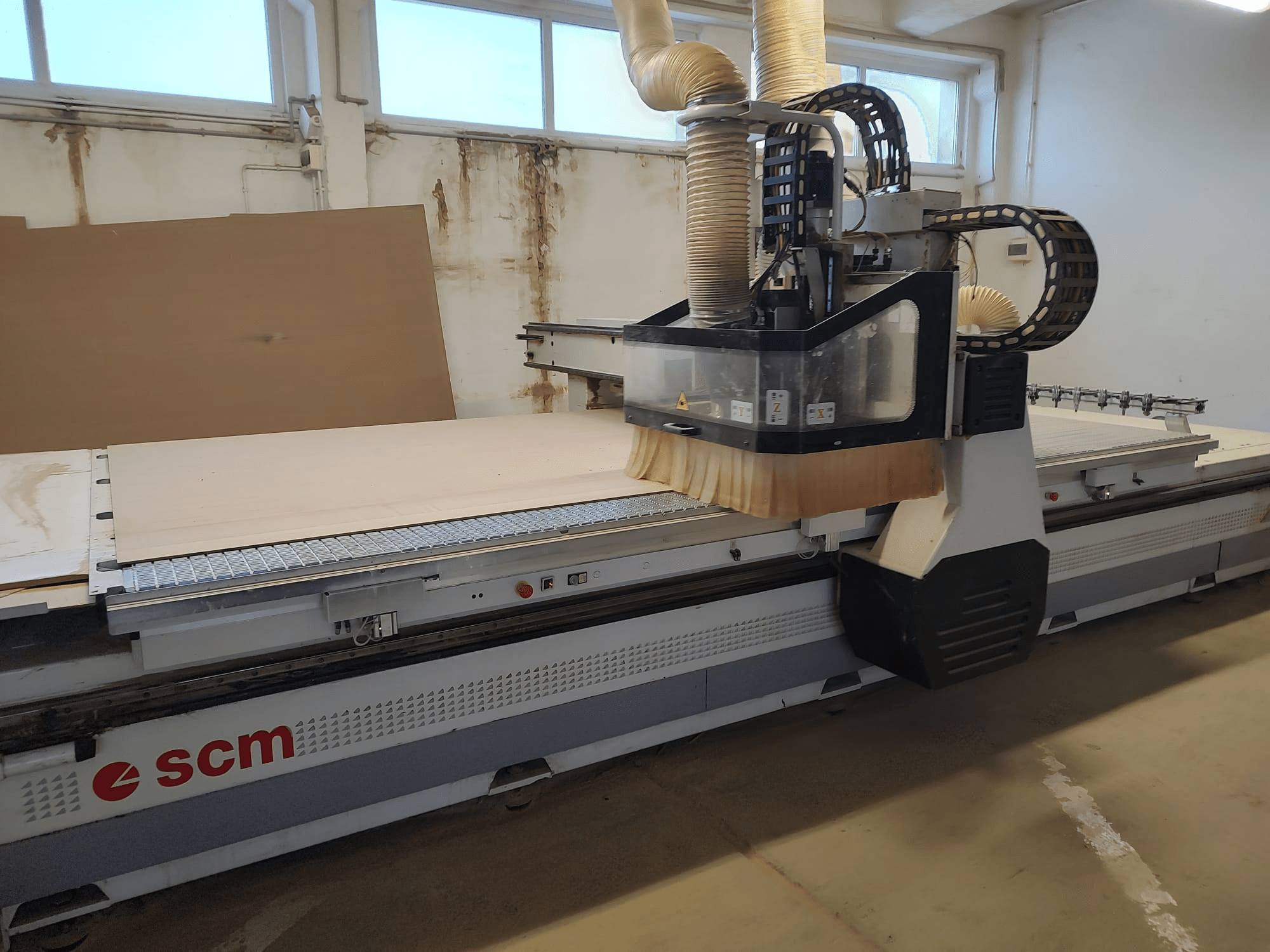

This 3-axis SCM Accord 20 CNC router was manufactured in 2010. It features a working area with dimensions of 4250 mm in the X-axis and 2280 mm in the Y-axis, making it suitable for nesting production and wood processing. The machine includes a powerful electrospindle with a speed range of 600 to 24,000 rpm and a side tool magazine with 10 positions. If you are looking to get high-quality milling capabilities, consider the SCM Accord 20 CNC router we have for sale. Contact us for further details.

Overview

brand: SCM
year: 2009
MODEL: ACCORD 20
application type: CNC Wood Machining
Location: Poland
machine type: CNC Router

Technical Information - SCM ACCORD 20

Dimensions

Machine Weight: 6300 kg

Movement

Number of Axes: 3
X-axis Travel: 4250 mm
Y-axis Travel: 2280 mm
Z-axis Travel: 150 mm

Technical Specification

Spindle Power: 18 kW
Spindle Speed: 24000 RPM

Additional Information

Typical applications: nesting production; windows and doors manufacturing; stair components production
Table size (L x W): 4200 x 2300 mm
Controlled axes: 3 (X, Y, Z)
Axis drives: Brushless motors
Rapid traverse: X 75 m/min; Y 75 m/min; Z 15 m/min
Lubrication: Automatic central lubrication system
Work table: Nesting table; large-format multifunctional aluminum matrix; pressed aluminum construction mounted directly to the base; designed for vacuum clamping of large panels
Main spindle: 1 electrospindle, HSK F63 tool holder; 600–24,000 rpm; 11 kW inverter; up to approx. 18 kW in working range (12,000–18,000 rpm); CW/CCW rotation; air cooling with fan; pneumatic tool clamping
Tool changer: Side tool magazine TR-10; 10 positions; 130 mm spacing; max 8 kg per position; automatic tool change
Workpiece clamping: Vacuum (nesting table); 2 vacuum pumps, 250 m³/h each

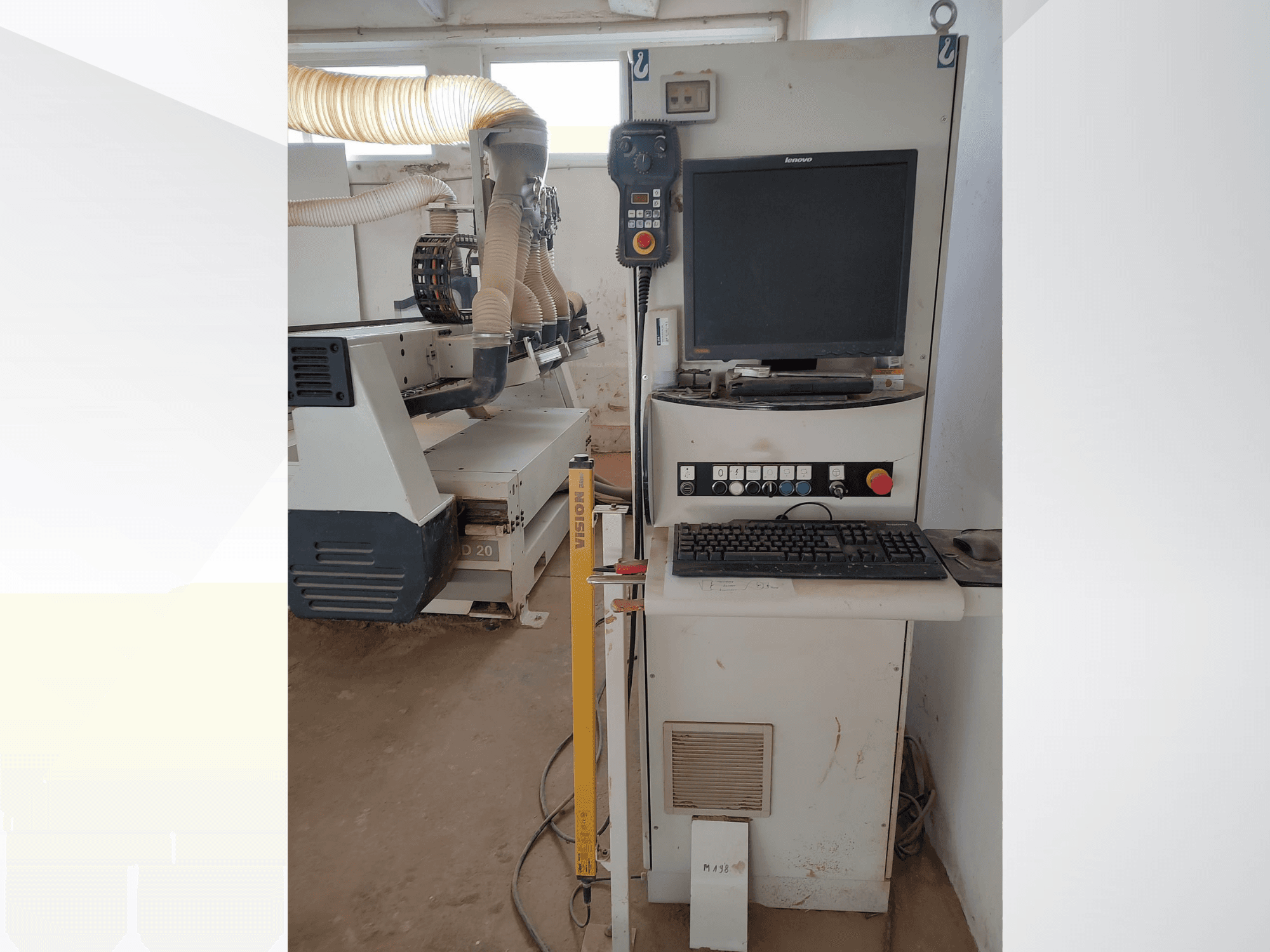

CNC control: SCM PC control
Software: Xilog Maestro; Xilog Plus; graphic programming editor; DXF import; subprogram and macro management
Electrical: 400 V; 50/60 Hz
Construction: Heavy welded gantry; high-rigidity industrial frame; aluminum matrix table mounted directly to the base
Safety: Fixed safety fencing on two sides; CE marking
History/condition: One owner since new; used continuously in one company; regularly serviced; technical condition very good

Additional equipment

Automatic dust extraction hood

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
