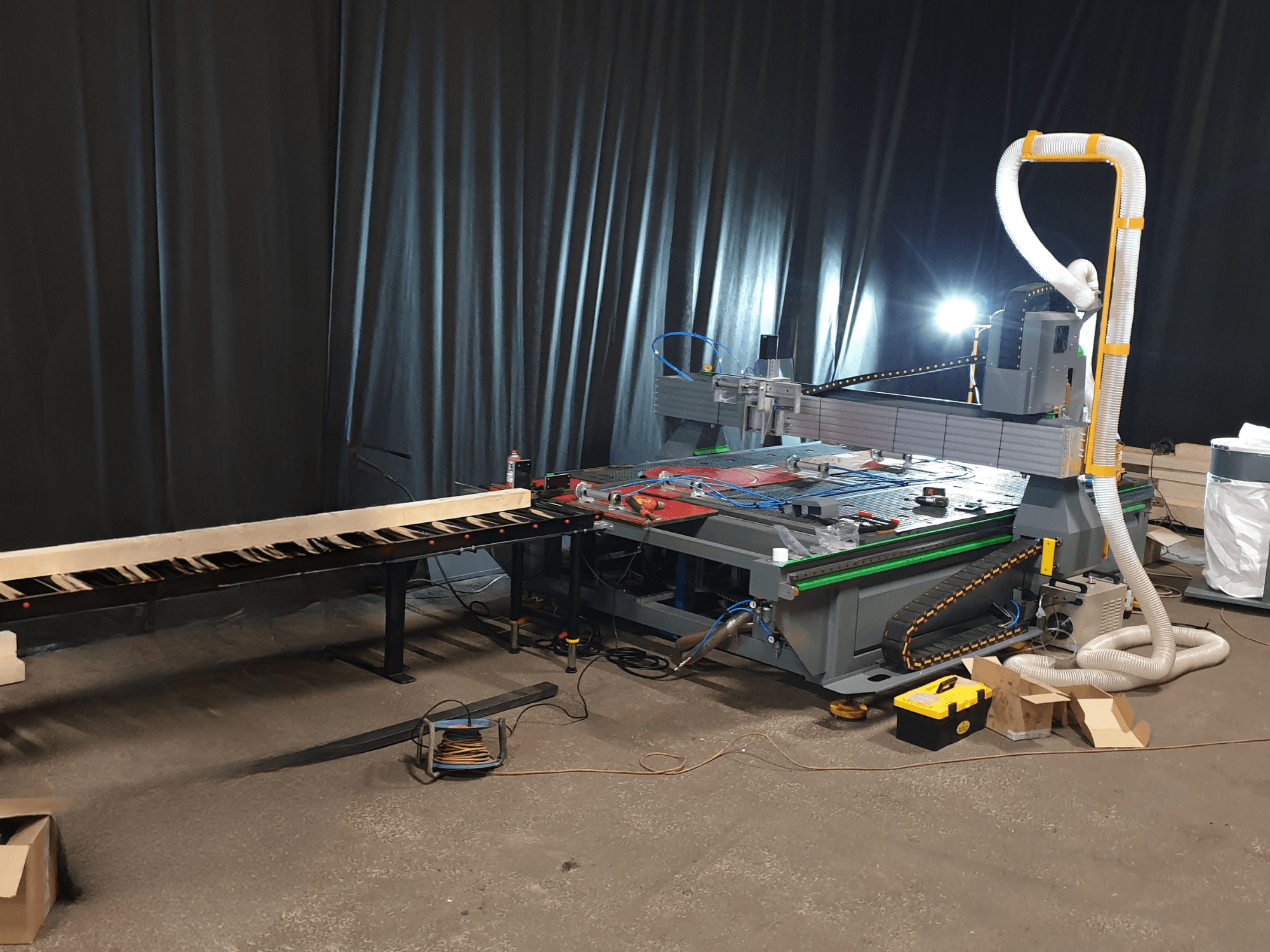

KOMPAS - F 2030 Industry 3000x2000mm megmunkáló felülettelHU-CNC-KOM-2019-00001

• Working area: 3000 × 2000 mm

• Control: Automatic Mach3 CNC control (Hungarian user manual included)

• Max speed: 10,000 mm/min

• Milling unit:

  • 3 kW water-cooled milling motor

  • Milling tool diameter: 1–13 mm

  • Tool change system

  • Safety covers on motors (brush-type), included for milling unit

• Saw unit:

  • Angle-adjustable circular saw with 4 kW motor

  • Pneumatic angle cutting method

  • Saw blade moves in Z direction

  • Max blade diameter: 400 mm

  • Protective cover above the saw blade

  • Table rotates with angle indicator in X–Y plane

• Clamping: Pneumatic clamping

• Measurement: Automatic length measurement

• Safety: Optical emergency stop safety system

• Included: Control computer and software

• Installation & operating conditions:

  • Foundation: 10 cm thick concrete required

  • Rubber pads integrated into machine feet

  • Operating temperature: 10–30 °C

• Hours: Used max. 700 hours

Additional equipment

• Roller material infeed system: Front and rear, rollers on both sides

  • 5 m in front of the machine and 2 m behind

• Chip/Dust extraction system: Dust extraction with four collection bags
