WALTER - Helitronic Power RegrinderPL-GRI-WAL-2001-00001
Sold
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
Click to chat on WhatsApp
- GINDUMAC
- Products
- Machine Tools
- WALTER HELITRONIC POWER REGRINDER Grinding machine
Show in original language

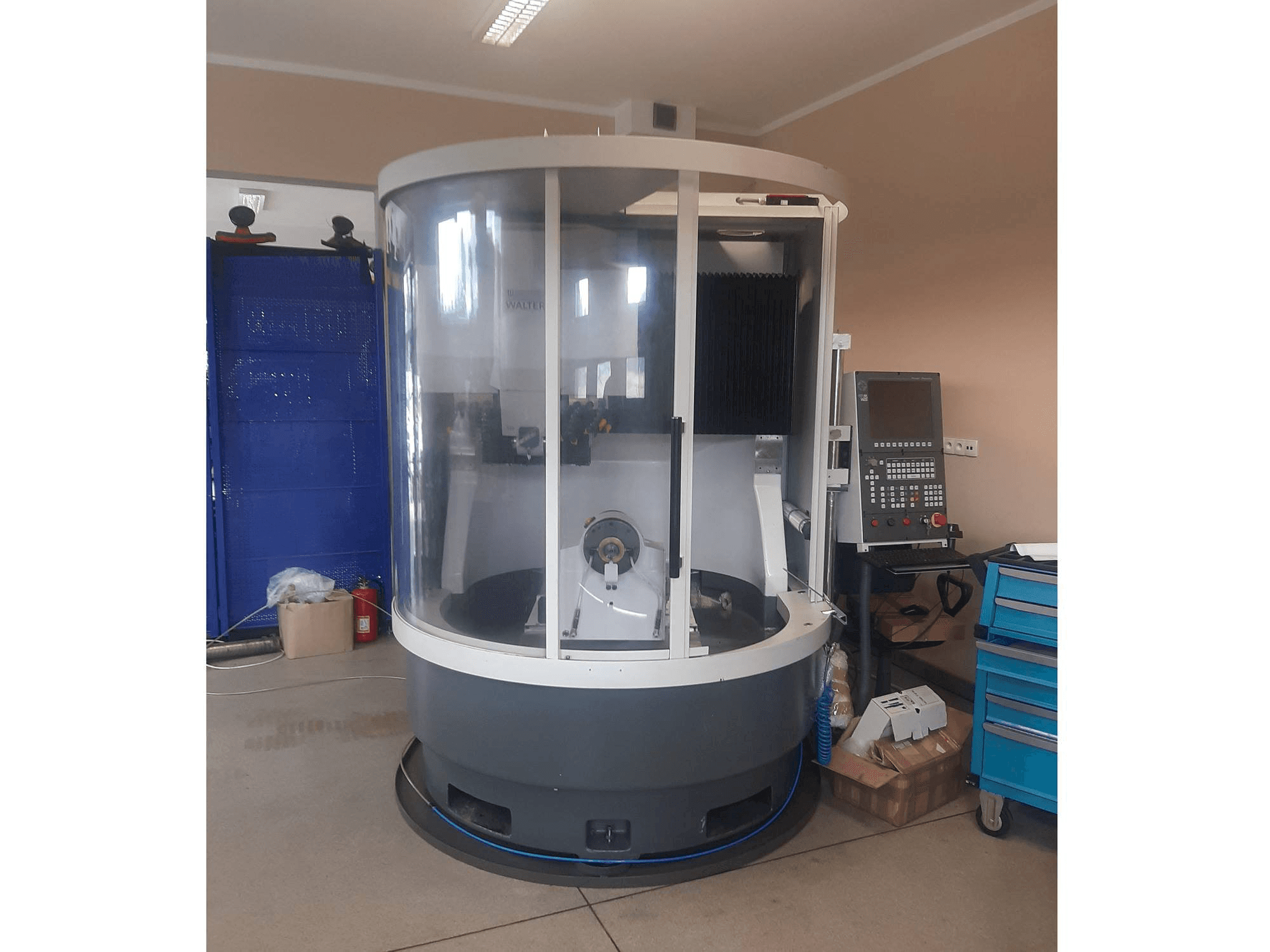

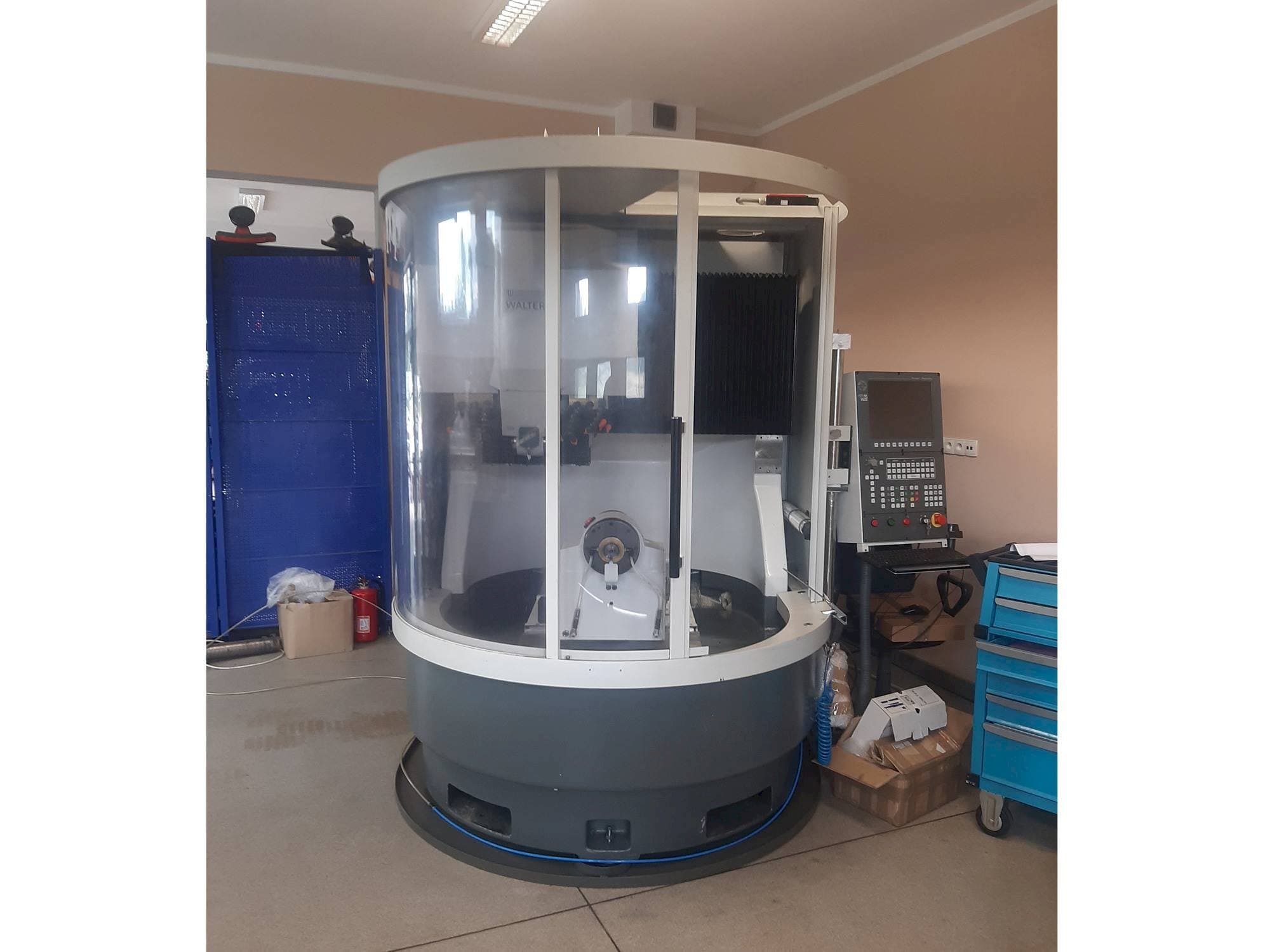

This WALTER HELITRONIC POWER REGRINDER Grinding machine was made in 2001 in Germany. It is equipped with a HMC 500 control unit and has 5 axis. The machine has a spindle speed of 9500 rpm, is in good condition and well maintained.
Overview
- brand: WALTER
- year: 2001
- MODEL: Helitronic Power Regrinder
- application type: Grinding
- Location: Poland
- machine type: Cylindrical Grinding Machine
Technical Information - WALTER Helitronic Power Regrinder
Dimensions
- Machine Depth: 2930 mm
- Machine Height: 2273 mm
- Machine Weight: 4600 kg
Movement
- C-axis: 200°
- Number of Axes: 5
- X-axis Travel: 470 mm
- Y-axis Travel: 320 mm
- Z-axis Travel: 660 mm
Technical Specification
- Spindle Speed: 9500 RPM
Additional Information
Machine Benefits
Qualitative Machine Benefits
- The machine is in very good, working condition and ready for tests. It is suitable to regrind / manufacture wood and metal working tools. An accuracy protocol from the walter service available and documentation.
Technical Machine Benefits
- Max workpiece diameter : 320 mm
- Max workpiece length: 350 mm
- Grinding wheel speed range : 0 - 9500 rpm
- Spindle taper : iso50
Extra Information
Machine still under power
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
