WAFIOS - BER-35DE-BEN-WAF-2008-00001

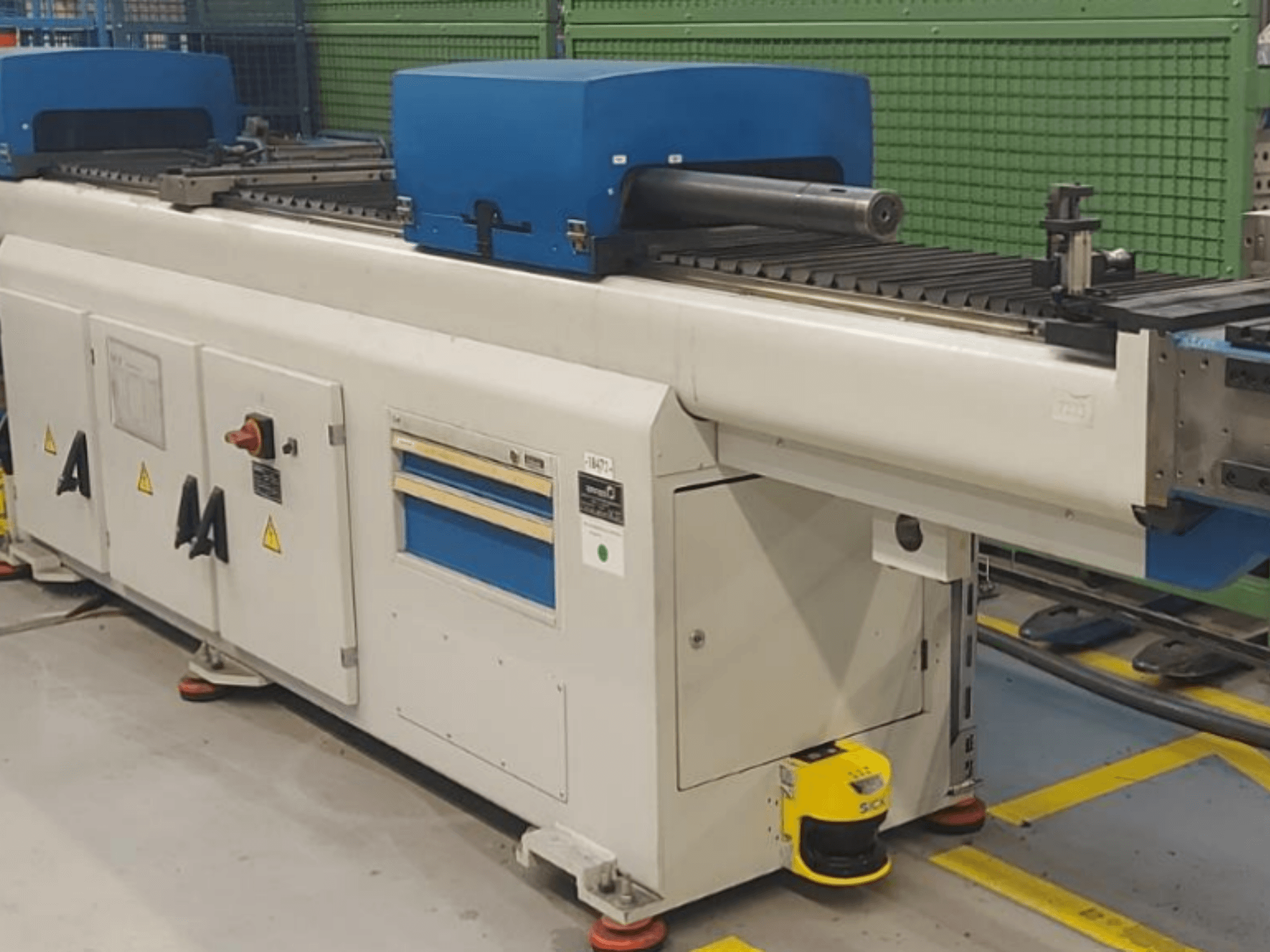

tube bending machine

Control System: Schleicher XCN 540 CNC

Bending Capacity (Steel/Stainless/Non-ferrous): Diameter 3 to 35 x 3 mm (at R=2xD)

Max Bending Capacity (Tested): 38 x 2.5 mm (at R=2.5xD)

Solid Material Capacity: St.35 up to D=20 mm

Tube Feed Length: 3000 mm

Bending Angle: 1° to 190°

Bending Radius (Max): 260 mm to tube center

Bending Radius (Min): 3 mm to tube center

Bending Speed: 1° to 90°/s (programmable)

Return Speed: 90°/s (constant)

Feed Speed: 1500 mm/s

Slide Stroke: Max 100 mm

Clamping Stroke: Max 100 mm

Mandrel Retraction Force: 30 kN

Counter-holder Force: 25 kN

Clamping Force: 45 kN (adjustable)

Operating Voltage: 400 V

Nominal Current: 35 A

Air Requirement: 36 l/min at 6 bar

Additional Equipment: Mandrel unit (servo-driven), Laser scanner safety system (CE), Slide rail (axis controlled), Adapter set for Pulzer tools

Compliance: CE marked

Safety inspection: Safety-technical approval completed

11,195 operating hours

Measuring arm included
