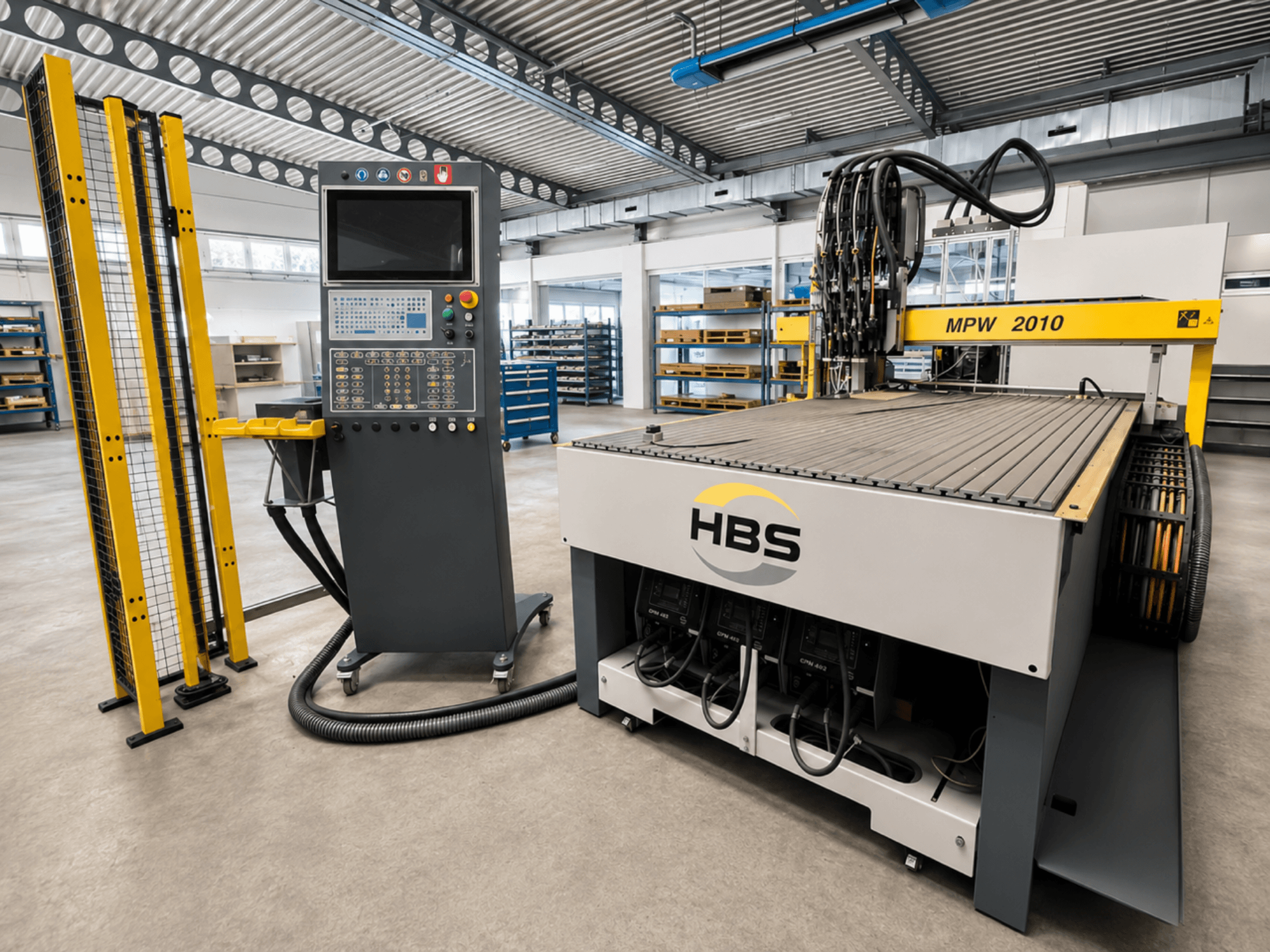

HBS - MPW 2010/3K/4MZ/1FKDE-OTH-HBS-2019-00001

- Working Range (X-axis): 1250 mm (heads 1 to 3) / Max. 1450 mm

- Working Range (Y-axis): 2250 mm

- Work Stroke (Z-axis): 0-200 mm (motorized, freely programmable, total stroke 215 mm)

- Traverse Speed (X/Y-axis): approx. 48 m/min

- Traverse Speed (Z-axis): approx. 25 m/min

- Welding Capacity: approx. 30 to 40 studs/minute

- Machine Accuracy (Steel/Aluminium): ± 0.2 mm (for HBS CD studs Ø3 - Ø8mm)

- Stud Diameters: Ø 3 mm to Ø 8 mm (with flange)

- Stud Lengths: 8 mm to 40 mm (feed output for 7 to 50 mm)

- Primary Power: 3 x 400 V AC / 32 A / 50-60 Hz

- Connected Load: max. 12 kVA

- Air Connection: min. 6 bar, max. 10 bar

- Air Consumption: approx. 10 l/welded stud

- Control Unit: HBS PC Control (Schneider Electric)

- Power Units: 3x HBS-CDMI 2402 / 230V EU units

- Automatic Stud Feeders: 1x HBS VBZ-3 fully automatic stud feeder with bowl feeder

- Automatic Welding Heads: 1x HBS KAH 412C LCD automatic welding head

- Safety System: Category 4 safety light curtain (1500 mm height) with 2-side perimeter fence and Emergency Stop

Included Accessories:

HBS tool/conversion case for KAH 412, pneumatic hold-down device (HBS-PN-NH), 3-nozzle sprayer (MPW TC), VBZ-U6 conversion kit (Ø 3, 4, 6, 8 mm)
