➤ Used PARS HMP SIRIUS PLUS -3000/3-L1 | Punching Machine

Show in original language

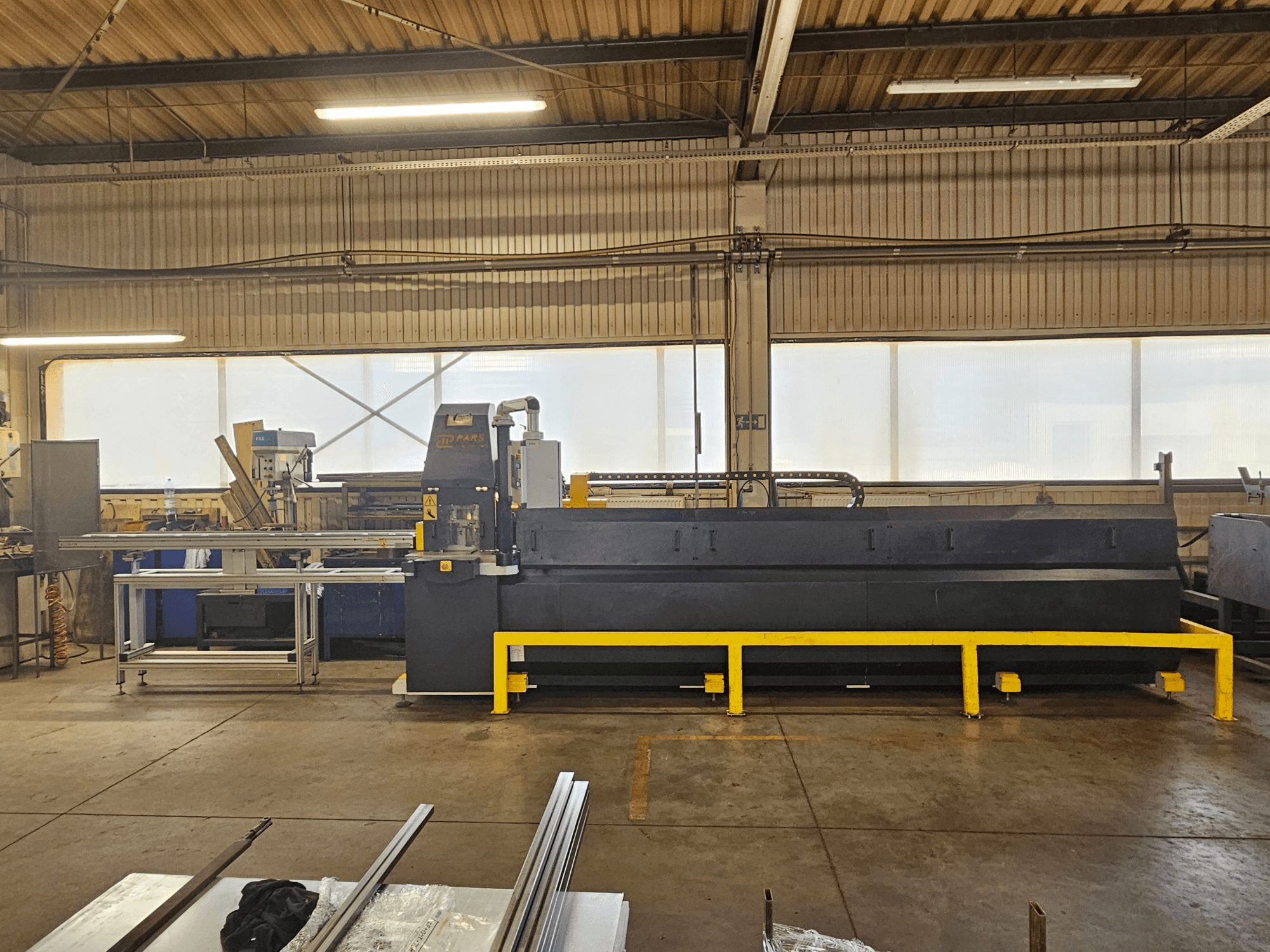

This 3-axis punch press for profiles PARS HMP SIRIUS PLUS -3000/3-L1 was manufactured in 2015. It features a maximum section dimension of 110 x 110 mm and can handle wall thicknesses up to 8 mm. The machine offers a punching speed of 1 hole/s and is capable of punching 2 sections simultaneously with its 2-row design. If you are looking to get high-quality punching capabilities, consider the PARS HMP SIRIUS PLUS -3000/3-L1 punch press for profiles we have for sale. Contact us for further details.

Overview

brand: PARS
year: 2015
MODEL: HMP SIRIUS PLUS -3000/3-L1
production hours: 2677
application type: Other Sheet Metal Machinery
Location: Poland
machine type: Sheet Metal Machine
control unit brand: SIEMENS

Technical Information - PARS HMP SIRIUS PLUS -3000/3-L1

Control Unit

Control Brand: SIEMENS
Control Model: SIMATIC HMI

Movement

Number of Axes: 3

Additional Information

Punching speed: 1 hole/s (including shift to next position)
Max. section dimensions: 110 x 110 mm
Wall thickness: up to 8 mm
Shear cylinder force: 17 t / 30 t
Section length: 3 m
Number of punching axes: 1–6 (holes in X–Y–Z system)
Number of punching rows: 1–2 (2-row machine punches 2 sections simultaneously)
Main axis drive: linear motor or rotary servo motor
Expanding adapter for internal section support (deformation-free punching)
Automatic mechanical centering of the section at the shear point
Micro-lubrication only at the shear point

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

** The default scope of delivery includes the machine only. Accessories and peripheral equipment will be confirmed through binding agreements during the purchasing process.
