TRUMPF - Trulaser 5030 FiberDE-CUT-TRU-2013-00002

Name: TRUMPF Trulaser 5030 Fiber
Brand: TRUMPF
SKU: DE-CUT-TRU-2013-00002
Price: 129750 GBP
Availability: InStock

£ 129,750

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Sheet Metal Machinery
➤ Used TRUMPF Trulaser 5030 Fiber For Sale | gindumac.com

Show in original language

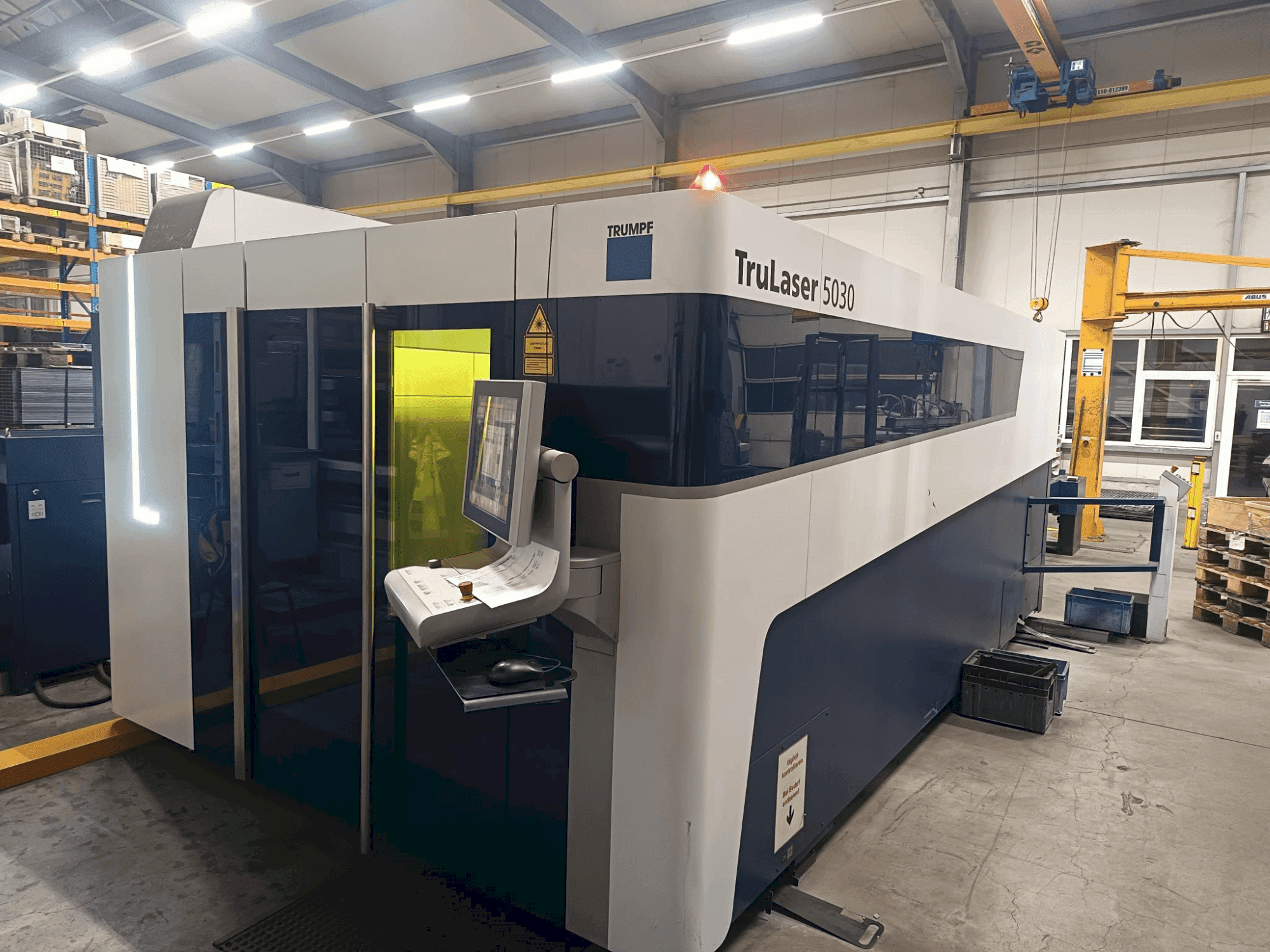

This TRUMPF Trulaser 5030 Fiber was manufactured in 2013. It features a closed frame, torque drive, linear direct drive, and a TruDisk 3001 solid-state laser. Equipped with an automatic pallet changer, 17-inch touch screen, and integrated camera for process monitoring. Ideal for precise fiber laser cutting. If you are looking to get high-quality cutting capabilities consider the TRUMPF Trulaser 5030 machine we have for sale. Contact us for more information about this machine.

Overview

brand: TRUMPF
year: 2013
MODEL: Trulaser 5030 Fiber
production hours: 23265
application type: Cutting
Location: Germany
machine type: Fiber Laser Cutting Machine

Technical Information - TRUMPF Trulaser 5030 Fiber

Main drive

Laserpower: 5000 W KW

Workpiece

Workpiece x: 3000 mm
Workpiece y: 1500 mm

Additional Information

Machine Benefits

Technical Machine Benefits

Trulaser 5030 (l56) documentation
Machine software
1 additional postprocessor
Trutops laser programming course

Extra Information

General Data Machine: Closed machine frame Torque drive combined with linear direct drive Closed beam guidance via fiber optic cable (LCC) Machine cooling unit (water-air) Integrated control cabinets with interior lighting Automatic pallet changer in the longitudinal direction 17* touch color screen Wide longitudinal conveyor belt TruDisk power supply via the machine Work area lighting Positioning Laser Guides: Spray direction PierceLine FocusLine NitroLine PlasmaLine Automatic nozzle cleaning Coupler cutting package (includes cutting data) Brass cutting package (includes cutting data) Transport and assembly device TRUMPF Laser: TruDisk 3001 solid-state laser with one LLK output Fiber optic cable according to standard layout Laser cooling unit (water-air) Excitation via Pump diodes Laser power control Subject to international export controls according to EC Dual-Use Regulation 428/2009 (lasers covered by 6A005) Cutting Head: Universal cutting unit with fully adaptive lens system Single-head cutting strategy Protective glass to protect against lens contamination ControlLine: Height control and outer sheet edge trimming Control: SINUMERIK 840D SL control system Simple and advanced workshop programming Fast re-production Integrated technology data Automatic shutdown Programmable cutting gas/pressure selection FastLine, FlyLine, AdjustLine Data Transfer: USB interface RJ-45 network connection Safety: CE marking Light barriers Multi-chamber extraction system Compact dust extraction system Machine enclosure, certified safety glass, door on the right Electric retractable roof Voltage and Frequency: Voltage: 400 V Frequency: 50 Hz Color: Standard white - blue RAL design 250 20 20 - blue NCS S 0505 RBOB - white Solid-state Laser: TruDisk 5001 with 1 air cooler outlet Additional Features: Nozzle changer BrightLine fiber DeteciLine: Precise sheet position detection Clamping clamps (2 pieces) Integrated camera (Full HD) for process monitoring with monitor interface Individual oil feed into the network ClitMaster Gompact retrofit capability

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
