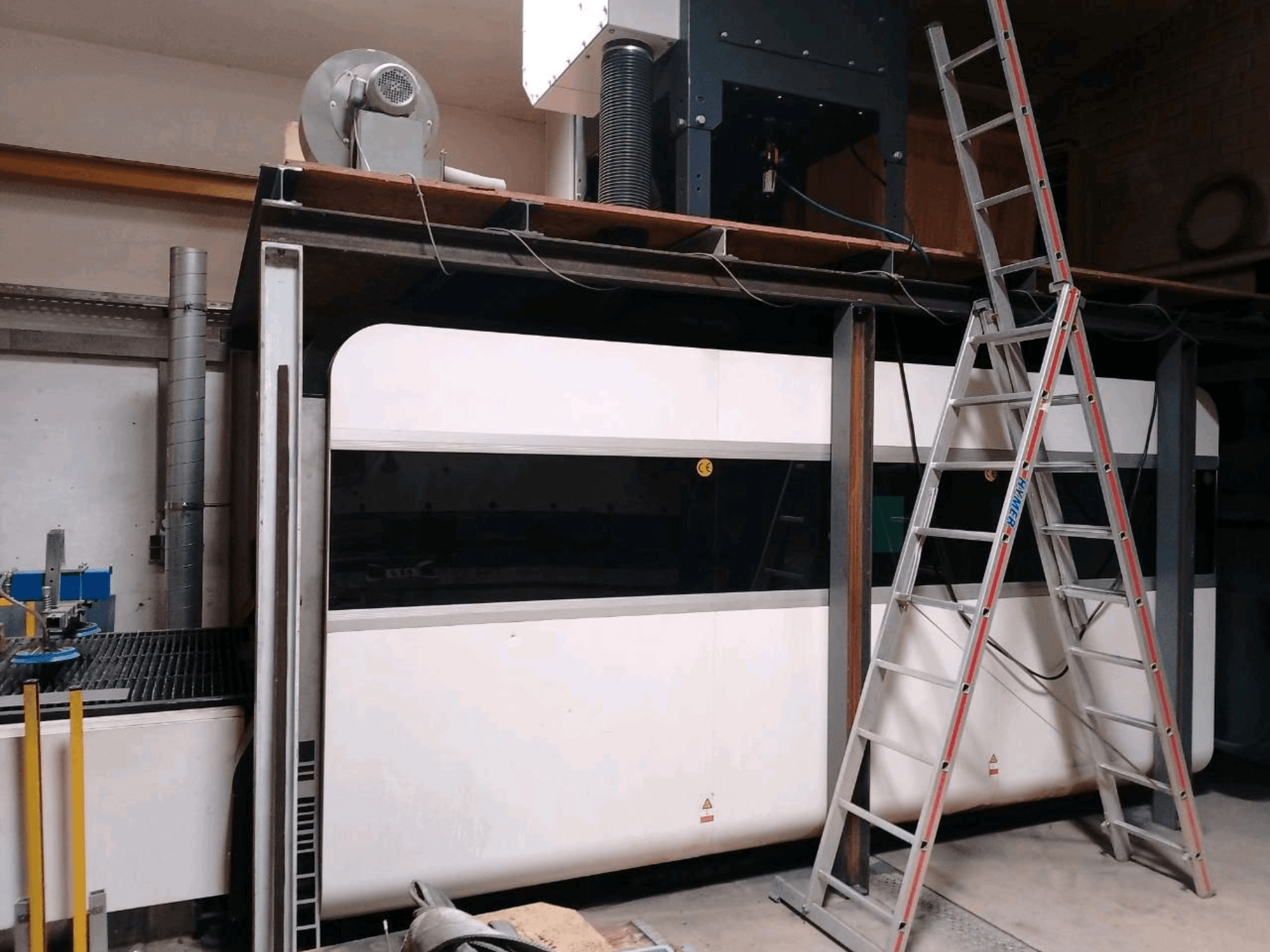

This 3-axis GWEIKE LF3015GA was manufactured in 2019. It features a powerful 3000 W laser and a generous working area of 3000 x 1500 mm, capable of cutting up to 20 mm steel and 12 mm stainless steel. The machine includes a robust exchange table and has a maximum moving speed of 120 m/min. If you are looking to get high-quality cutting capabilities, consider the GWEIKE LF3015GA fiber laser cutting machine we have for sale. Contact us for further details.
Overview
- brand: GWEIKE
- year: 2019
- MODEL: LF3015GA
- production hours: 3000
- application type: Cutting
- Location: Germany
- machine type: Fiber Laser Cutting Machine
Technical Information - GWEIKE LF3015GA
Dimensions
- Machine Height: 2125 mm
- Machine Length: 8150 mm
- Machine Weight: 6600 kg
- Machine Width: 2825 mm
- Table Length: 3000 mm
- Table Load: 900 kg
- Table Width: 1500 mm
Movement
- Number of Axes: 3
- X-axis Travel: 1500 mm
- Y-axis Travel: 3000 mm
- Z-axis Travel: 2900 mm
Technical Specification
- Cutting Speed: 120 m/min
- Laser Power: 3 kW
Additional Information
- Laser Power: 3000 W (3 kW)
- Working Hours: Approx. 3,000 hours
- Cutting Capacity: Up to 20 mm steel, up to 12 mm stainless steel, aluminum possible
- Exchange Table Working Area: 3000 * 1500 mm
- Working Area for Metal Sheet: 3000 * 1500 mm
- X/Y Axis Position Accuracy: ±0.01 mm
- X/Y Axis Reposition Accuracy: ±0.02 mm
- Max. Moving Speed: 120 m/min
- Maximum Acceleration: 1.5G
- Max. Working Capacity of Sheet Table: 900 kg
- Transmission: Rack and gear
- Power Requirement: AC 380V ±10% 50Hz / 60A
- Suggested Space for Machine: 8 m * 3 m
- Gas Requirements: O2 (2 MPa, Purity 99.9%), N2 (6 MPa, Purity 99.9%)
- Best Working Temperature: 10-35°C
- Included Equipment / Scope of Delivery: Laser cabin (Whole Protect Cover, Double Exchange platform), CYPCUT Laser Software including remote control, Control cabinet, Cooling/Chiller unit, Extraction/Filter system, Rectifier, Vacuum lifter / Pallet crane attached to structure
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
