➤ Used TRUMPF TruBend 5230 - Press For Sale | gindumac.com

Show in original language

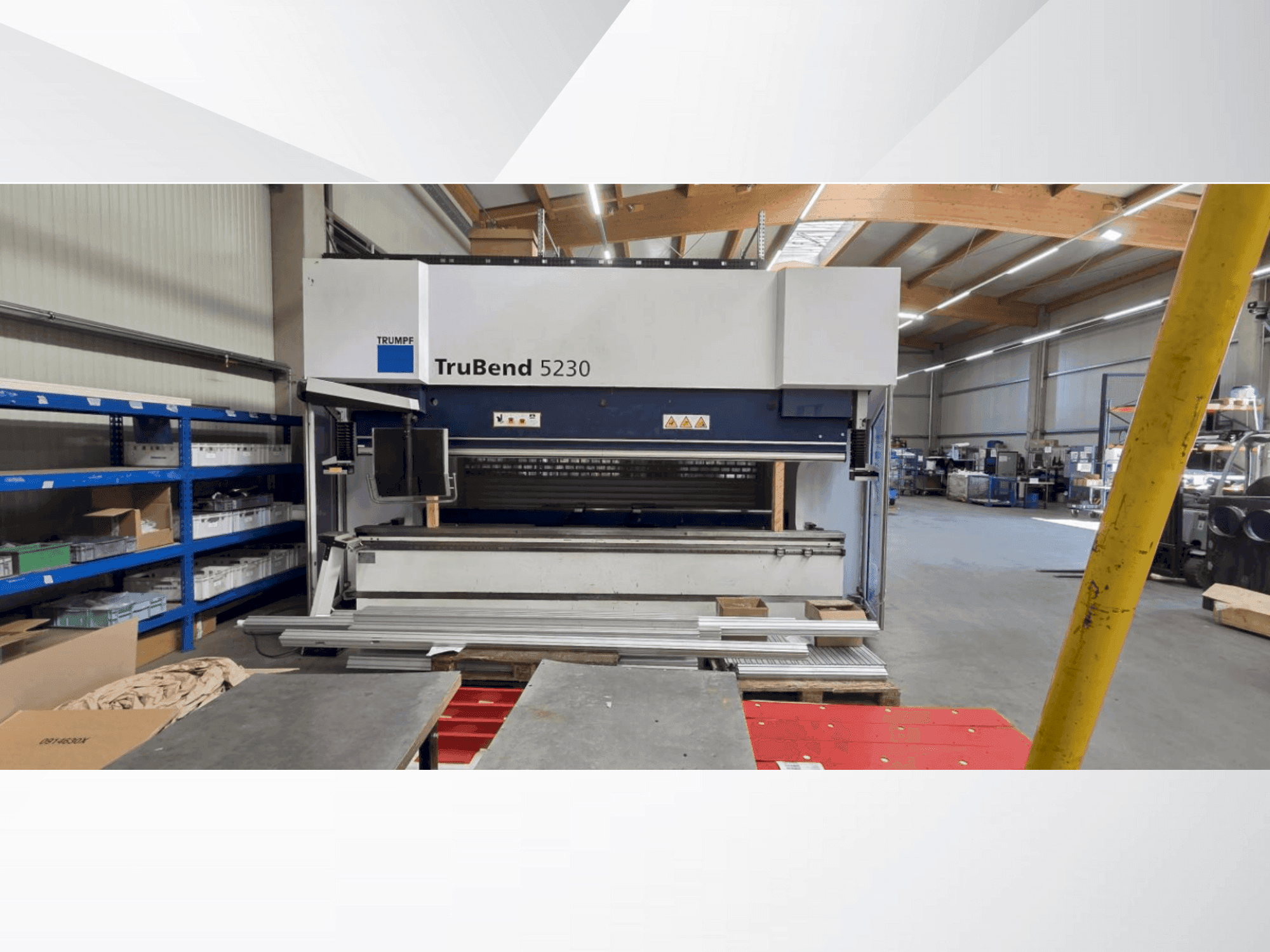

This 4-axis TRUMPF TruBend 5230 press brake was manufactured in 2012. It features a maximum press force of 2,300 kN, a bending length of 4,250 mm, and a stroke of up to 445.0 mm. Equipped with TASC 6000 control and hydraulic upper tool clamping, it's ideal for precise bending operations. Consider the opportunity to buy this TRUMPF TruBend 5230 press brake. Contact us for more information about this machine.

Overview

brand: TRUMPF
year: 2012
MODEL: TruBend 5230
production hours: 4000
application type: Bending
Location: Germany
machine type: Press Brake

Technical Information - TRUMPF TruBend 5230

Dimensions

Machine Weight: 19200 kg

Additional Information

Press Force: Max. 2300 kN
Bending Length: 4250 mm
Stroke: Max. 445 mm
Operating Pressure: Max. 300 bar
Stopping Time: Max. 95 ms
Stopping Distance: Max. 10 mm
Safety Distance: Min. 190 mm

Upper Tool Clamping: Hydraulic
Lower Tool Clamping: Hydraulic
Lower Tool Shifting: Pneumatic
Operating hours: approx. 35,000 h (estimate)

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
