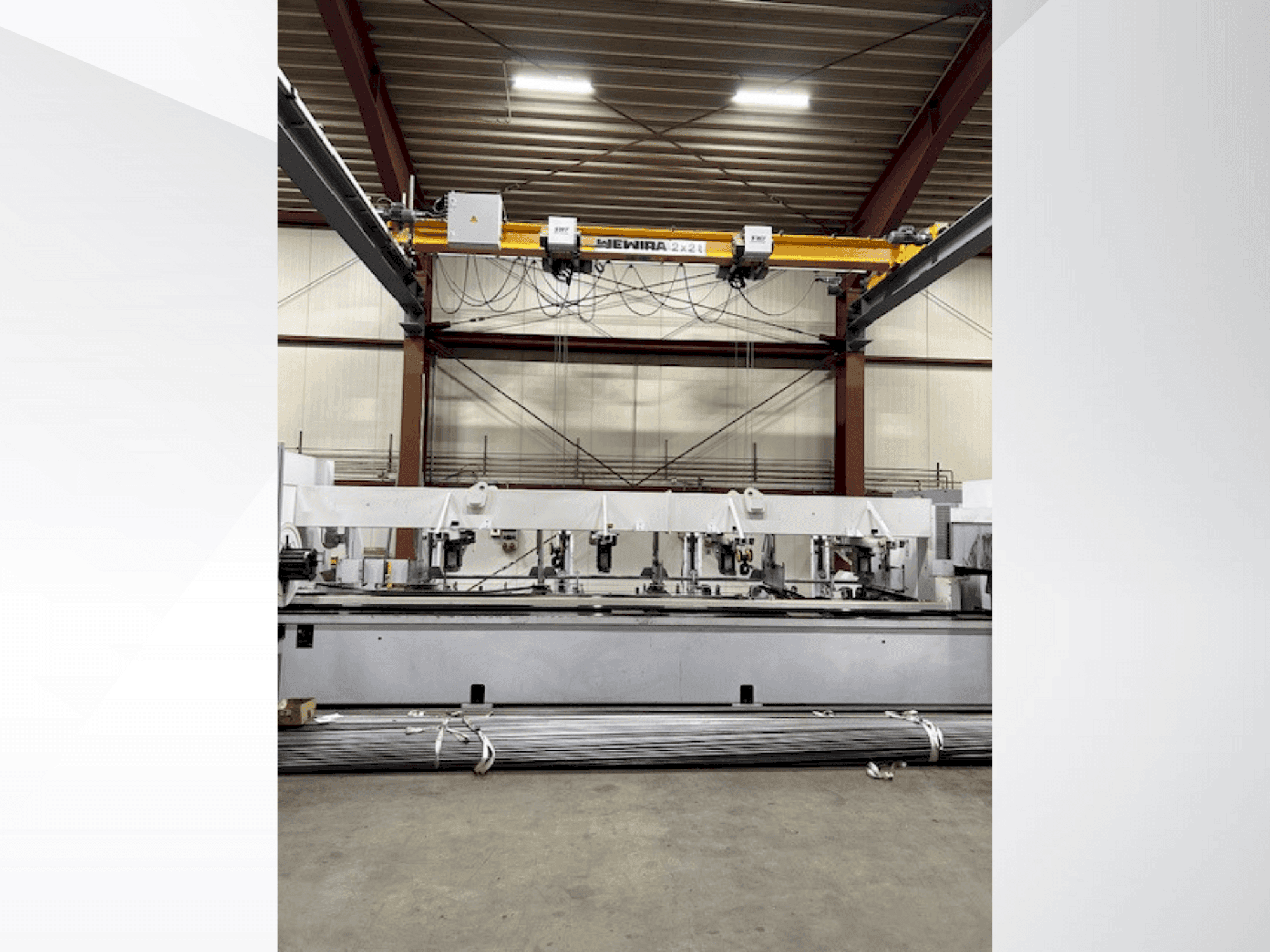

TRUMPF - Tru Laser Tube 3000 FiberDE-LAS-TRU-2020-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Sheet Metal Machinery
➤ Used TRUMPF Tru Laser Tube 3000 Fiber | Laser Cutter

Show in original language

This TRUMPF Tru Laser Tube 3000 Fiber was manufactured in 2020. It features a maximum laser power of 2000 W and can handle materials up to 8 mm thick. The machine supports tube lengths up to 8000 mm and diameters up to 170 mm, ideal for versatile tube processing. A great opportunity to buy this TRUMPF Tru Laser Tube 3000 Fiber laser cutting machine. For more information about this laser cutting machine, please reach out to us.

Overview

brand: TRUMPF
year: 2020
MODEL: Tru Laser Tube 3000 Fiber
production hours: 8831
application type: Cutting
Location: Germany
machine type: Tube Cutting Machine

Technical Information - TRUMPF Tru Laser Tube 3000 Fiber

Technical Specification

Laser Power: 2 kW

Additional Information

Additional equipment

Cutting head: lens cutting head 150mm focal length
TruFibre2001 solid-state laser
machine bed for 6.5m material length
Loadmaster Tube for 6.5m raw material length
Laser cooling unit
Compact dust extractor
AdjustLine / NitroLine / FocusLine / ControlLine
Optional: slewing jib crane (4 tons)

Machine Benefits

Qualitative Machine Benefits

Versatile tube processing capabilities with options for larger diameters and longer raw material lengths

Technical Machine Benefits

Machine can proces up to diameter 170mm
Raw material length for automatic loading: 6500 mm (loadmaster tube 6. 5 m),
Finished part length: 3000 mm (unloading unit 3 m), 4750 mm (unloading unit 4. 75 m), 6500 mm (unloading unit 6. 5 m)
Maximum path weight: 18. 5 kg/m (standard/optional)
Maximum raw material weight with automatic loading: 120 kg (loadmaster tube 6. 5 m), 148 kg
Capable of processing a wide range of materials with varying thicknesses
Copper: 3 mm
Brass: 3 mm
Max ingoing lengths 6500mm
Max uitgoing lengths 4500mm

Extra Information

Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
