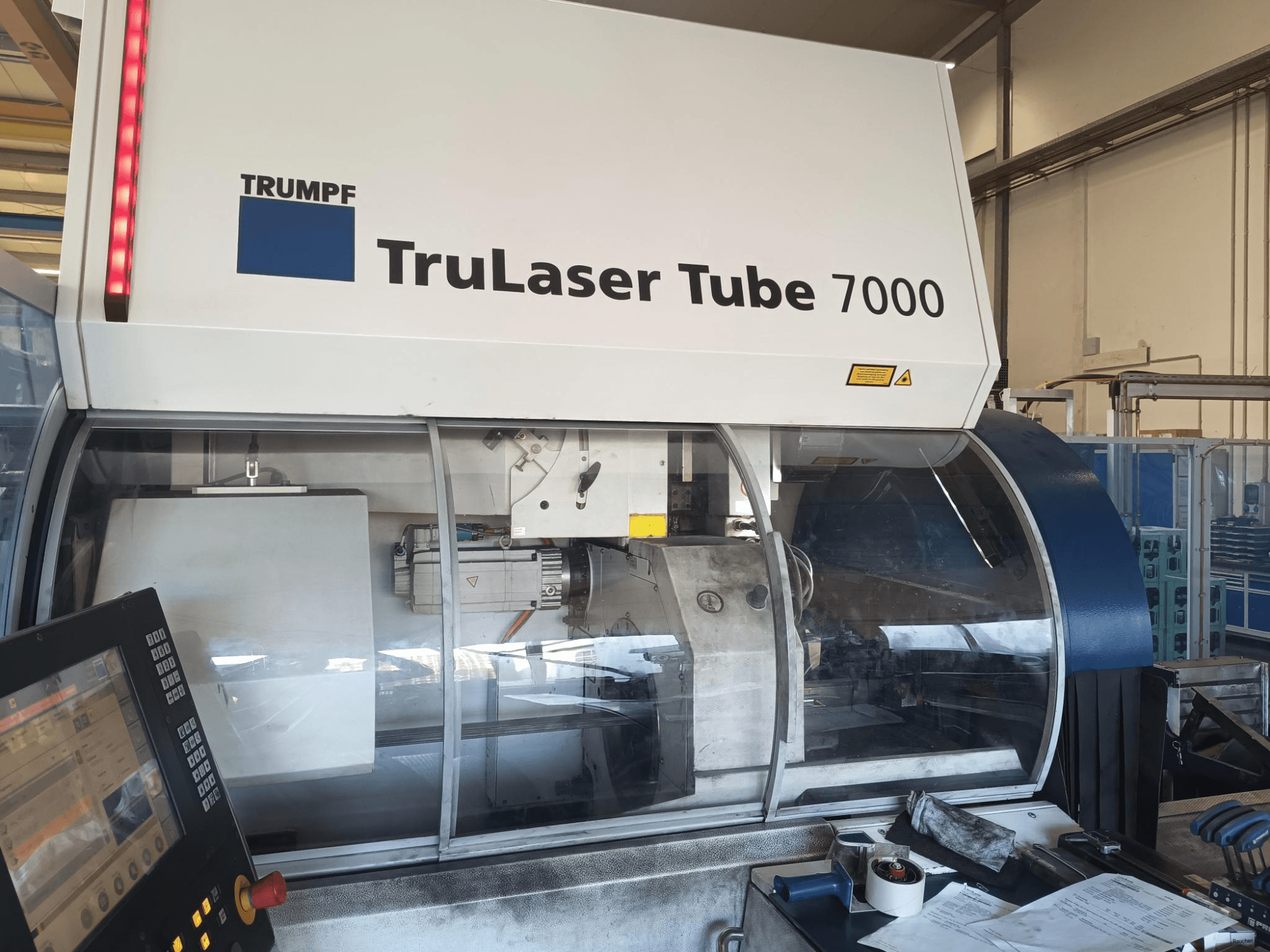

TRUMPF - TruLaser Tube 7000 KT02DE-CUT-TRU-2010-00003

• Circular diameter: 200 mm

• Reject station: 3 m with brush table

• Reject tray

• Working Range X Tube Axis: 6500 mm

• Outer Circle Diameter: 254 mm (Upgraded from standard 200 mm)

• Unloading Station: 3 m with brush table, front unloading

• Laser Type: CO2 Laser TruFlow 3600 including LensLine (Surcharge upgrade from standard TruFlow 2000)

• Control: Sinumerik 840D, Teleservice

• Standard Software/Features: NitroLine, FocusLine, SprintLine, Laser power control, Programmable cutting gas pressure, Program re-entry, Automatic shutdown, Workspace lighting, Laser logbook function, Laser cooling unit

• Laser: CO₂ laser TruFlow 2000

• Laser cooling unit

• Cutting Head: Lens cutting head with 155 mm focal length, ControlLine

• Control unit: 84D

• Connectivity/data transfer: RJ-45 network connection, USB connection; network connection incl. installation

• Safety: CE marking, Multi-beam light barriers, Compact dust extractor 1500 Nm³/h, Protective cabin with Makrolon panels

• Ambient Operating Temperature: Up to 43°C

• Installation Type: Special machine installation setup

Additional equipment

• Accessories:

  • Spare parts case for cutting heads

  • 1 x remote control kit

  • Clamping jaw set Ø 16 / 200 mm

  • U-shaped guide rails for reject station with ID = 200 mm

• Automation:

  • Loading Unit: LoadMaster Tube 6.5 m with bundle support, 2 grippers, 254 mm outer circle diameter capacity, low-scratch design for 6m, swiveling conveyor line, additional gripper D=254 mm

  • Options for LoadMaster Tube 6 m:

    • Circular diameter 250 mm

    • Shorter belt support

    • Swivelable conveyor section

    • Additional gripper Ø 200 mm

    • Additional gripper Ø 250 mm

• Special equipment:

  • Flexible reject station 4.5 m (prototype) instead of reject station 3 m, without brush table

  • Special installation for flexible reject station

  • LoadMaster (series version 103)

  • Installation 100 mm higher (use of wire mesh container possible), decision upon acceptance

• Services:

  • Installation, commissioning, training
