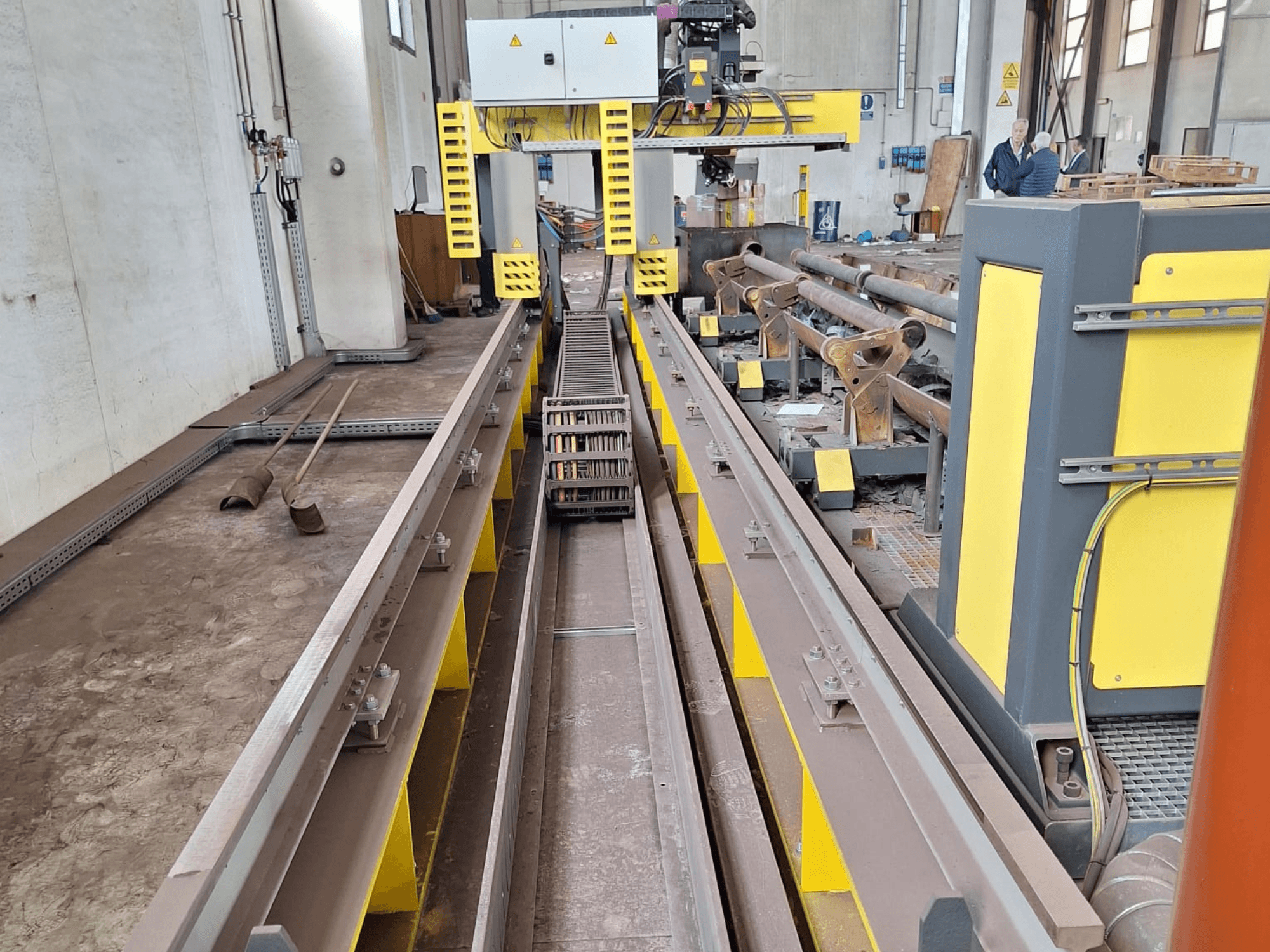

ESAB - SUPRAREX 3100 SXE HD 1000 IT-CUT-ESA-2020-00002

• Cutting technology: High Definition Plasma

• Tube capacity

  • Max tube length: 8,000 mm

  • Min/Max tube diameter: 100 mm / 750 mm

  • Min/Max wall thickness: 3 mm / 20 mm

• Cutting capabilities

  • Straight cutting, bevel cutting, V bevels, Y bevels, 3D tube cutting

• Axis configuration / movements

  • X (longitudinal): Double synchronized brushless drive with electronic axis control on both sides of the gantry; guide length 11,000 mm; double motorization

  • Y (transversal): Brushless drive with rack and pinion transmission

  • Z (vertical): Motorized torch positioning axis, speed up to 4,000 mm/min

  • Tube rotation axis: Synchronized spindle for tube rotation, tube length up to 8,000 mm

• Bevel head – VBA WRIST

  • Rotation: ±540°

  • Tilt/bevel adjustment: ±60°

  • Cutting bevel angle: ±45°

  • Max tilt speed: 38°/sec

  • Tangential control during cutting

  • Arc-voltage torch height control

  • Mechanical feeler torch height control for bevel cutting

  • Torch collision protection

• Machine construction

  • Heavy-duty machine frame

  • Longitudinal and transversal precision guides

  • Precision rack & pinion drive system

  • Brushless motors

• Chuck / spindle

  • Synchronized spindle for tube cutting

  • Chuck size: 500 mm

  • Through hole: 150 mm

• Tube supports

  • 3 manual support carriages with trapezoidal screw positioning

• Plasma generator

  • Model: ESAB iSeries300i

  • Max current: 300 A (range 5–300 A)

  • Output voltage: 180 V

  • Power supply: 380 V / 50–60 Hz

  • Duty cycle (40°C): 100%

  • Maximum output power: 54 kW

• Process gases

  • Plasma gases: Air / O2 / Ar-H2 / N2

  • Shield gases: Air / N2 / O2 / H2O

• Generator dimensions

  • 1219 x 898 x 1031 mm

  • Control system

  • ESAB VISION T5 CNC

  • 18.5” colour touchscreen, glove operable

  • OpWizard operator assistance software

• Software

  • ESAB Tube Cutting Programming Software

Additional equipment

• Flat cutting table with slats, 1,500 x 1,000 mm
