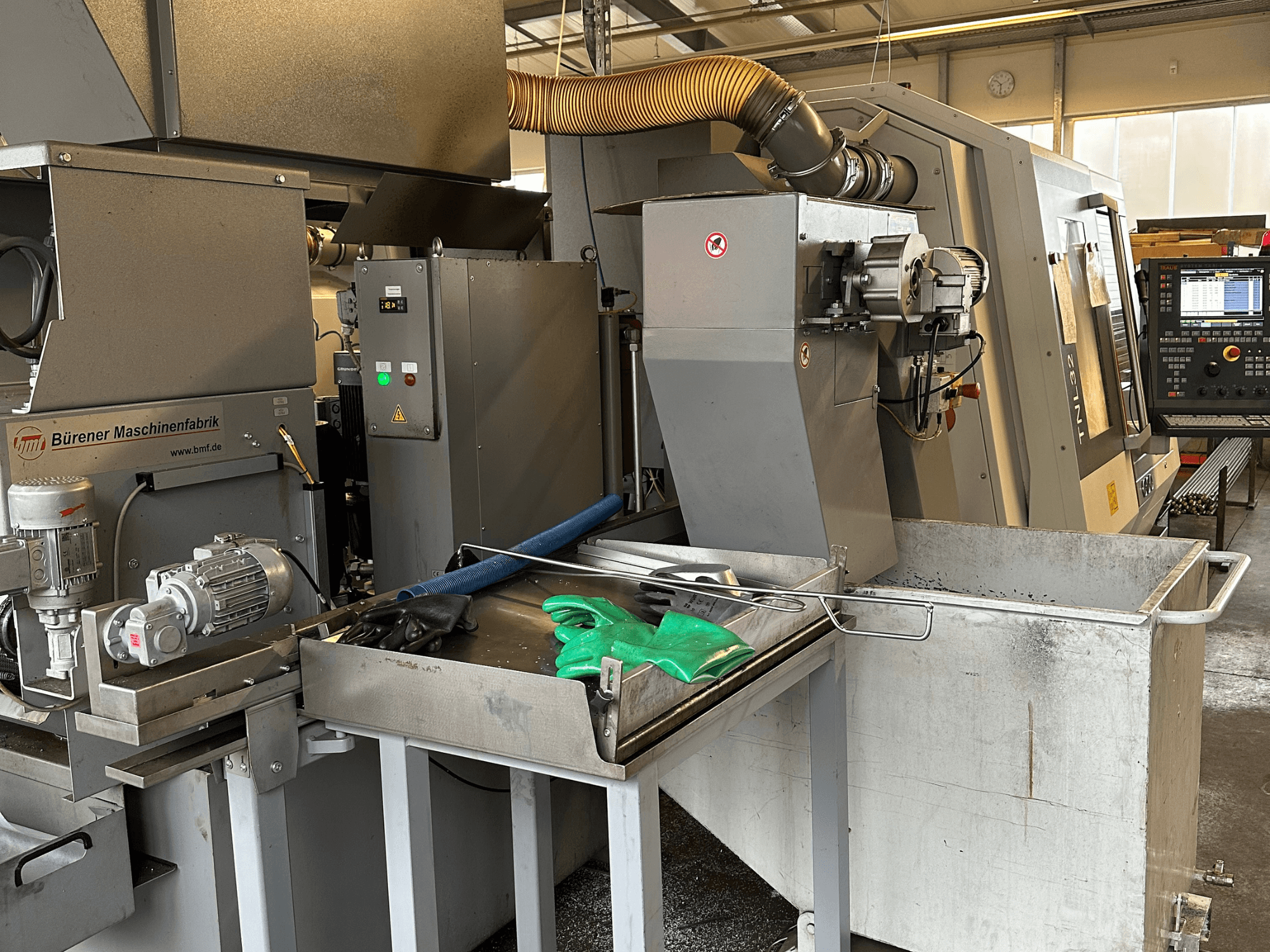

This 9-axis TRAUB TNL32-9 was manufactured in 2017. It features a main spindle speed of 8,000 rpm and a counter spindle speed of 6,400 rpm. The machine includes dual drive systems and a maximum bar capacity of 32 mm, making it suitable for various turning applications. If you are looking to get high-quality turning capabilities, consider the TRAUB TNL32-9 swiss type turning machine we have for sale. Contact us for further details.
Overview
- brand: TRAUB
- year: 2017
- MODEL: TNL32-9
- production hours: 19295
- application type: Turning
- Location: Germany
- machine type: Swiss Type Turning Machine
- control unit brand: TRAUB
Technical Information - TRAUB TNL32-9
Control Unit
- Control Brand: TRAUB
- Control Model: TX8i-s
Movement
- Number of Axes: 9
Technical Specification
- Counter Spindle: Yes
- Driven Tools: Yes
- Max. Bar Diameter: 32 mm
- Spindle Speed: 8000 RPM
- Through-spindle Coolant: Yes
Additional Information
Main Spindle: Motor Spindle
Main Spindle Bore: 32 mm
Main Spindle C-Axis: Yes
Counter Spindle Bore: 30 mm
Counter Spindle Speed: 6,400 rpm
Upper Tool Carrier: X / Y / Z / H Axis
Lower Tool Carrier: X / Y / Z / H Axis
Tool Positions Upper Carrier: 10
Tool Positions Lower Carrier: 10
Dual Drive System: Yes
Long Turning Mode: Yes
Short Turning Mode: Yes
Changeover Turning Mode (W-T): Yes
Internal Coolant Pressure: 20 / 80 / 120 bar
Coolant System: Bürener ECO Fluid
Coolant Tank Capacity: 600 l
Oil Mist Extraction System: Yes
Air Flow Capacity: approx. 1,500 m³/h
Automatic CO₂ Fire Extinguishing System: Yes
Hydraulic Workpiece Gripper: Yes
Counter Spindle Parts Ejector: Yes
Parts Conveyor: Yes
Tool Monitoring System: Yes
Network Interface RJ45: Yes
Voltage: 400 V
Frequency: 50 Hz
Rated Power: 36 kW
Connected Load: 44 kVA
Rated Current: 63 A
Maximum Fuse Protection: 63 A
CE Marked: Yes
Bar Feeder: FMB LSK38 / 3200 C
Bar Diameter Range: 5 - 38 mm
Maximum Bar Length: 3,200 mm
Remnant Length Disposal: up to 600 mm
Feed Direction: Right Side
Material Support Position: Front
Chip Conveyor: Optional, not included
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
** The default scope of delivery includes the machine only. Accessories and peripheral equipment will be confirmed through binding agreements during the purchasing process.
