TOS SN 71 C
TOS - SN 71 C
2001
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- TOS SN 71 C Lathe

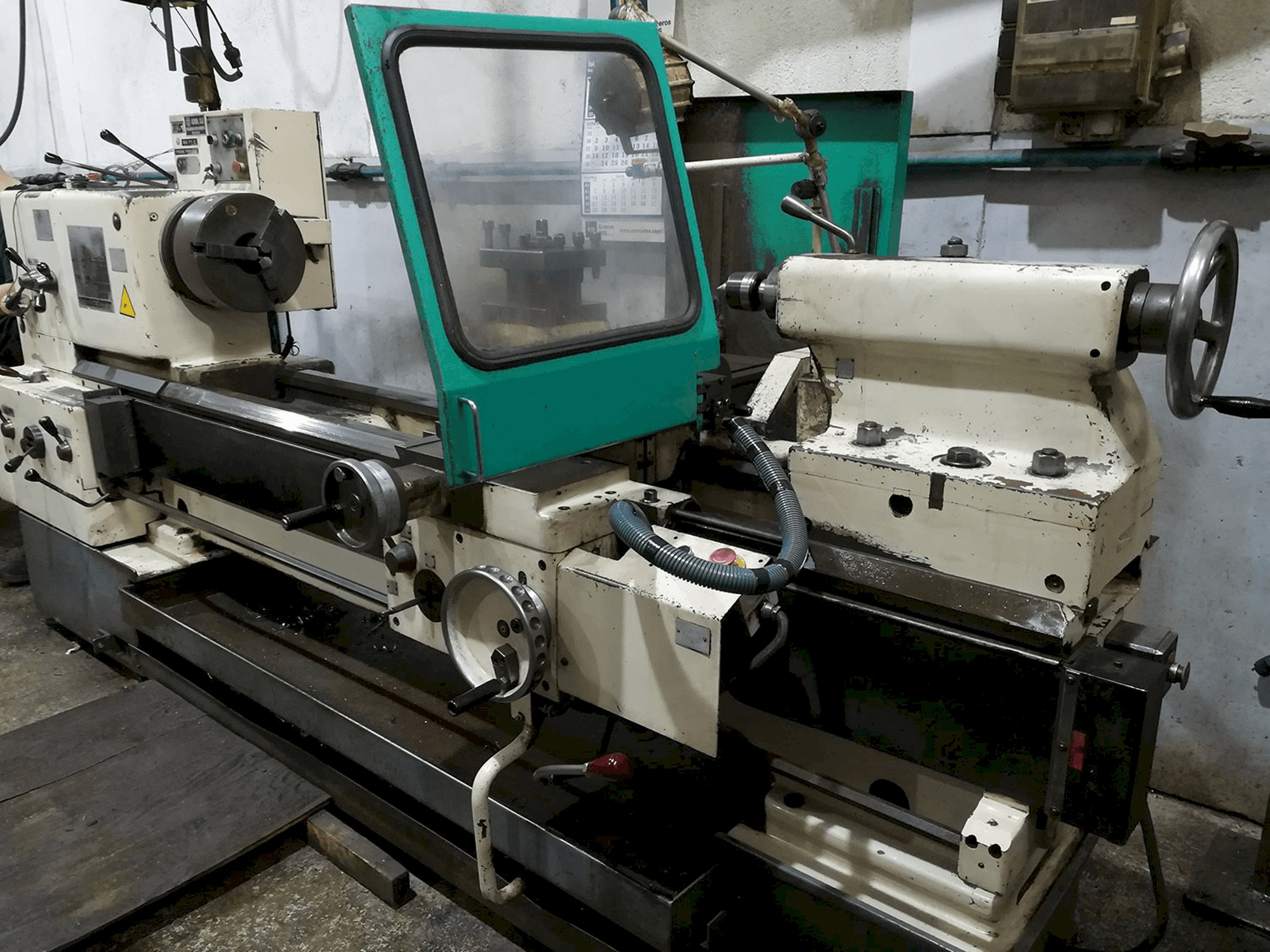

This TOS SN 71 C Lathe was manufactured in 2001 in Slovakia. This machine can work with a spindle speed up to 1000 rpm. It includes claws and tools as additional equipment.
Overview
- brand: TOS
- year: 2001
- MODEL: SN 71 C
- application type: Turning
- Location: Spain
- machine type: Lathe
- availability: Sold
- GINDUMAC ID: ES-TUR-TOS-2001-00001
Technical Information
General Data
- Measurements width: 1210/1445 mm
- Measurements height: 1600 mm
- Machine weight: 2960 kg
Main drive
- Spindle speed range: 10 - 1000 1/MIN
- Spindle motor power: 7,5 kW
Movement
- X-AXIS Movement: 1500 mm
- Y-AXIS Movement: 600 mm
Additional Equipment
- - Fixed Steady Rest 320/180mm
- - Mobile Steady Rest 180/12mm
- - Relapse on the step device
- - Large lunette hanger
- - Universal chuck 4 jaws D/. 315 -1m1
- - Flange for crankset 315 - 8"
- - Rotating point with Morse 6
- - Claws
- - Tools
Additional Information
- Technical Machine Benefits:
- - Max. Swing over bed 710 mm
- - Max. Swing over cross slide 420 mm
- - Max. Swing in bed gap 960 mm
- - 2 axis dro sony
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
