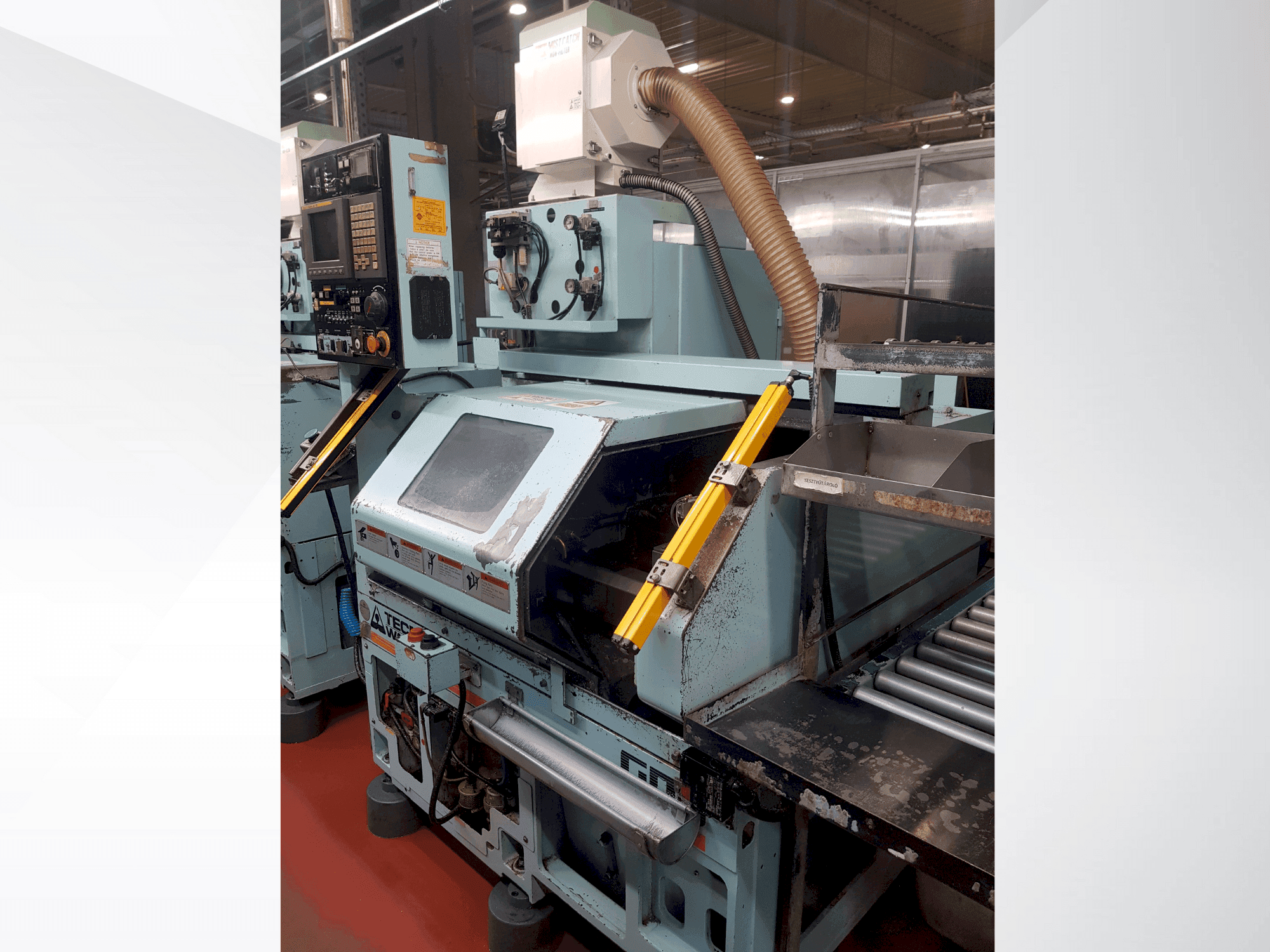

Front view of TECNO WASINO Wasino G06  machine

TECNO WASINO - Wasino G06HU-TUR-TEC-2005-00001

£ 12,900
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This TECNO WASINO G06 lathe was manufactured in 2005. It is equipped with a Fanuc controller and operates on a 200V, 3-phase system with a main breaker capacity of 50A. Designed for turning applications, it ensures reliability with a main air pressure of 0.4 MPa. This machine tool provides robust performance for precision machining tasks. The TECNO WASINO G06 machine we have for sale is an excellent opportunity for enhancing your production capabilities. Contact us for more information.

Overview

  • brand: TECNO WASINO
  • year: 2005
  • MODEL: Wasino G06
  • production hours: 120000
  • application type: Turning
  • Location: Hungary
  • machine type: Lathe
  • availability: Immediately
  • control unit brand: Fanuc

Technical Information - TECNO WASINO Wasino G06

General Data

  • Measurements height: 1670 mm

Control Unit

  • Brand: Fanuc
  • Model: Series 21i-TB

Main drive

  • Spindle speed range: 6000 / 8000 rpm 1/MIN
  • Spindle bore: 45 mm
  • Number of axis: 2

Movement

  • X-AXIS Movement: 300 mm
  • X-AXIS Feed Force: 12 m/min
  • Z-AXIS Movement: 285 mm
  • Z-AXIS Feed Force: 20 m/min

Media

  • Air pressure: 0.4 MPa

    Additional Equipment

    • - Standard chuck: Precision air chuck
    • - Tool Table

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - Standard tool shank: 16 mm (5/8 in. )
        • - Voltage required: 200 v
        • - Phase: 3p
        • - Main breaker: 50 a
        • - Maximum swing diameter: 285 mm (11-7/32 in. )
        • - Nominal workpiece dimensions: 60 mm (2-3/8 in. ) diameter x 60 mm (2-3/8 in. ) length
        • - Bar capacity: 38. 1 mm (1-1/2 in. )
        • - Center height from floor: 1000 mm (39-3/8 in. )
        • - Spindle nose: 100 mm (3-15/16 in. ) flat
        • - Machine floor space: 1400 x 1555 mm (55 x 61 in. )
      • Qualitative Machine Benefits:
        • - Feed axes
        • - Tooling type: gung-type
        • - Spindle motor output

      Extra information

      • - Machine still under power

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
