➤ Used MURATA MW100 For Sale | gindumac.com

Show in original language

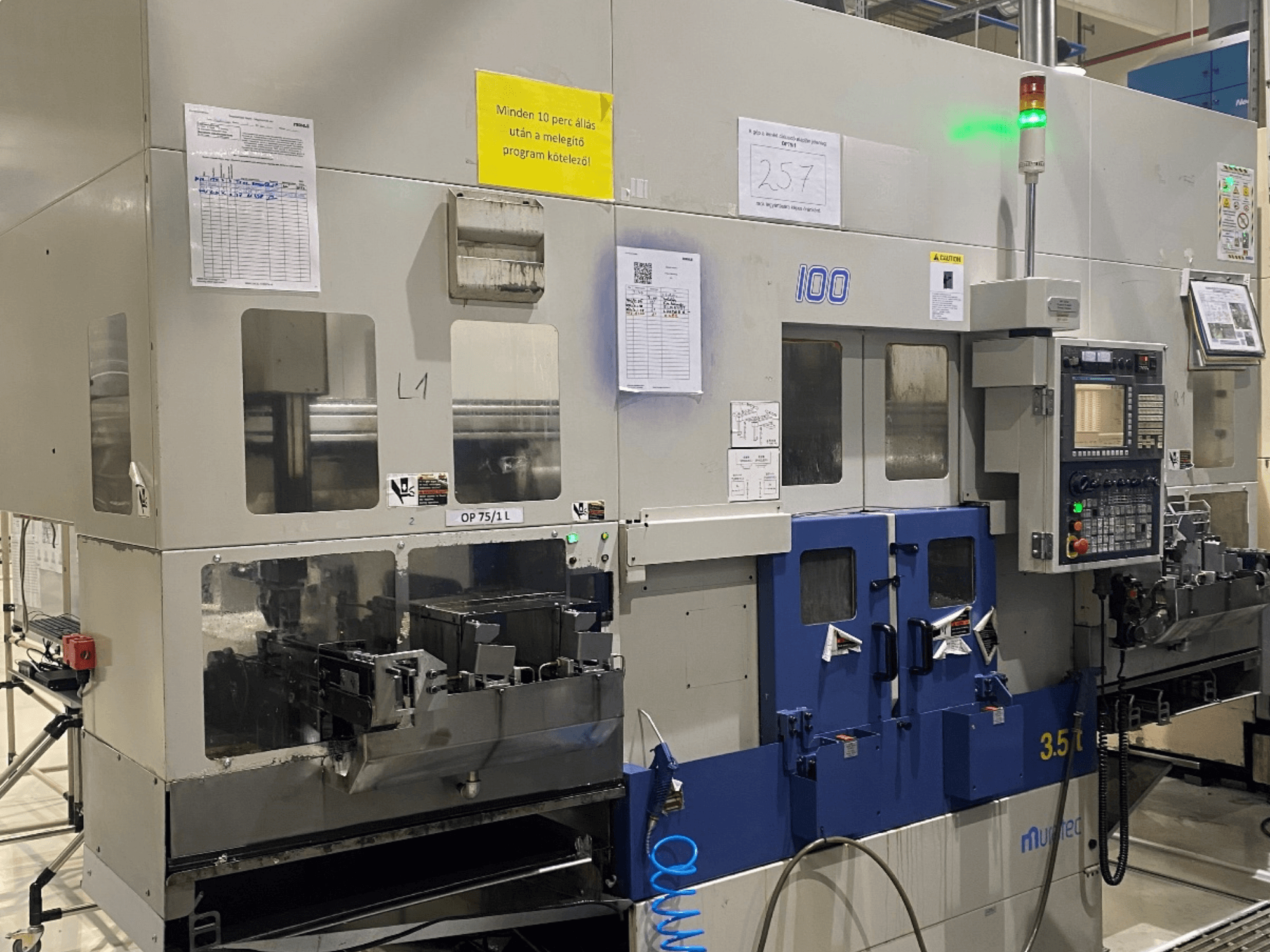

This 3-axis Murata MW100 Horizontal Twin-Spindle CNC Turning Center was manufactured in 2012. It features a maximum spindle speed of 4,500 rpm and a tool capacity of 2 × 8 positions. With a compact design and included chip conveyor, this machine is ideal for efficient turning applications. If you are looking to get high-quality turning capabilities, consider the Murata MW100 machine we have for sale. Contact us for further details.

Overview

brand: MURATA
year: 2012
MODEL: MW100
application type: Turning
Location: Hungary
machine type: Horizontal Turning Machine
control unit brand: FANUC

Technical Information - MURATA MW100

Control Unit

Control Brand: FANUC
Control Model: FS30i

Dimensions

Machine Height: 2600 mm
Machine Length: 1620 mm
Machine Weight: 3500 kg
Machine Width: 3360 mm

Movement

Number of Axes: 3
X-axis Travel: 265 mm
Z-axis Travel: 115 mm

Technical Specification

Counter Spindle: No
Driven Tools: No
Spindle Speed: 4500 RPM

Additional Information

Number of axes: 3+2
Number of spindles: 2

Tooling

Tool capacity: 2 × 8 positions
Tool holder: Not specified

Utilities

Coolant pressure: 5 bar
Electrical consumption: 10 kWh
Compressed air consumption: 16.4 m³/h

Documentation

Electrical user manual: Yes
Mechanical user manual: No

Notes / Description

High-speed automatic CNC two-station/front turning machine
3 units available

Additional equipment

Chip conveyor: Included
- Dimensions: 3,850 × 1,000 × 1,400 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

** The default scope of delivery includes the machine only. Accessories and peripheral equipment will be confirmed through binding agreements during the purchasing process.
