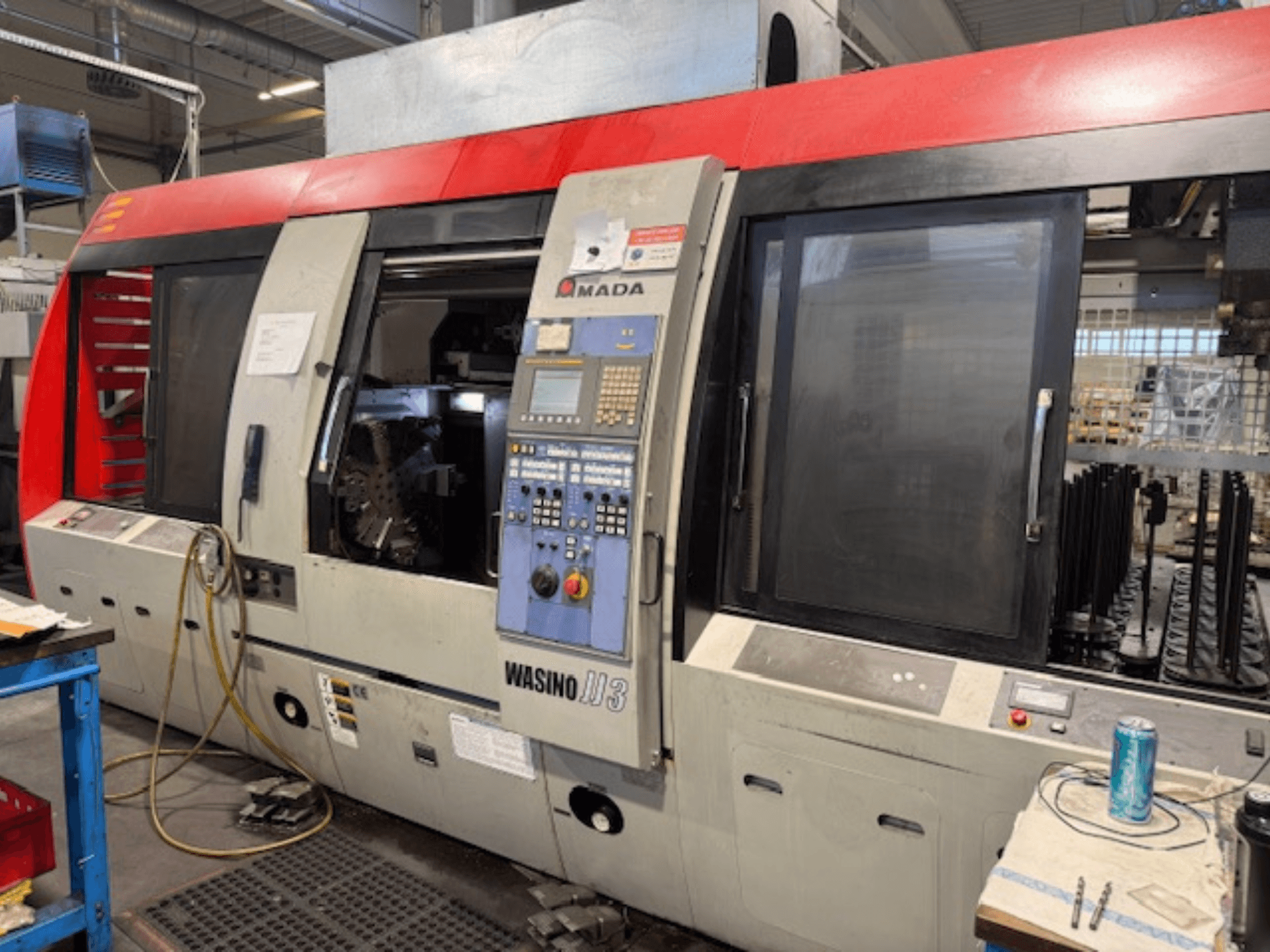

AMADA - Wasino JJ3HU-TUR-AMA-2007-00001

• Axes: X1, Z1, C1, X2, Z2, C2

• Travels: X1/X2 245 mm; Z1/Z2 210 mm

• Spindles: 2 (double front spindle), max speed 4000 rpm, power 7.5 kW (option 11 kW), high-acceleration spindle

• Turrets: 2 × 12 stations

• Chuck size: 8" (3-jaw, both spindles)

• Bed: High rigidity monoblock design

• Cutting performance:

  • Turning (S45C): depth of cut 1.6 mm; feed 0.22 mm/rev; cutting speed 160 m/min

  • Drilling: Ø22 mm; feed 0.56 mm/rev

  • Tapping: M16

  • Grooving: up to 8 mm

• Precision: positioning accuracy ±2 µm; repeatability ±2 µm

• Coolant/system: 290 L tank; filtration; high-pressure coolant pump

• Cell concept/capability: automatic loading/unloading; fully automated; designed for unmanned, high-volume production

• Driven tools: Yes, for both spindles

• Condition: Good, properly working; regular maintenance since 2008

Additional equipment

• Gantry loader with reverse turn unit

• Work stocker: 2 units (expandable to 4)

• Chip conveyor

• Transformer

• Integrated measuring unit (optional concept)

• Cleaning unit (optional concept)
