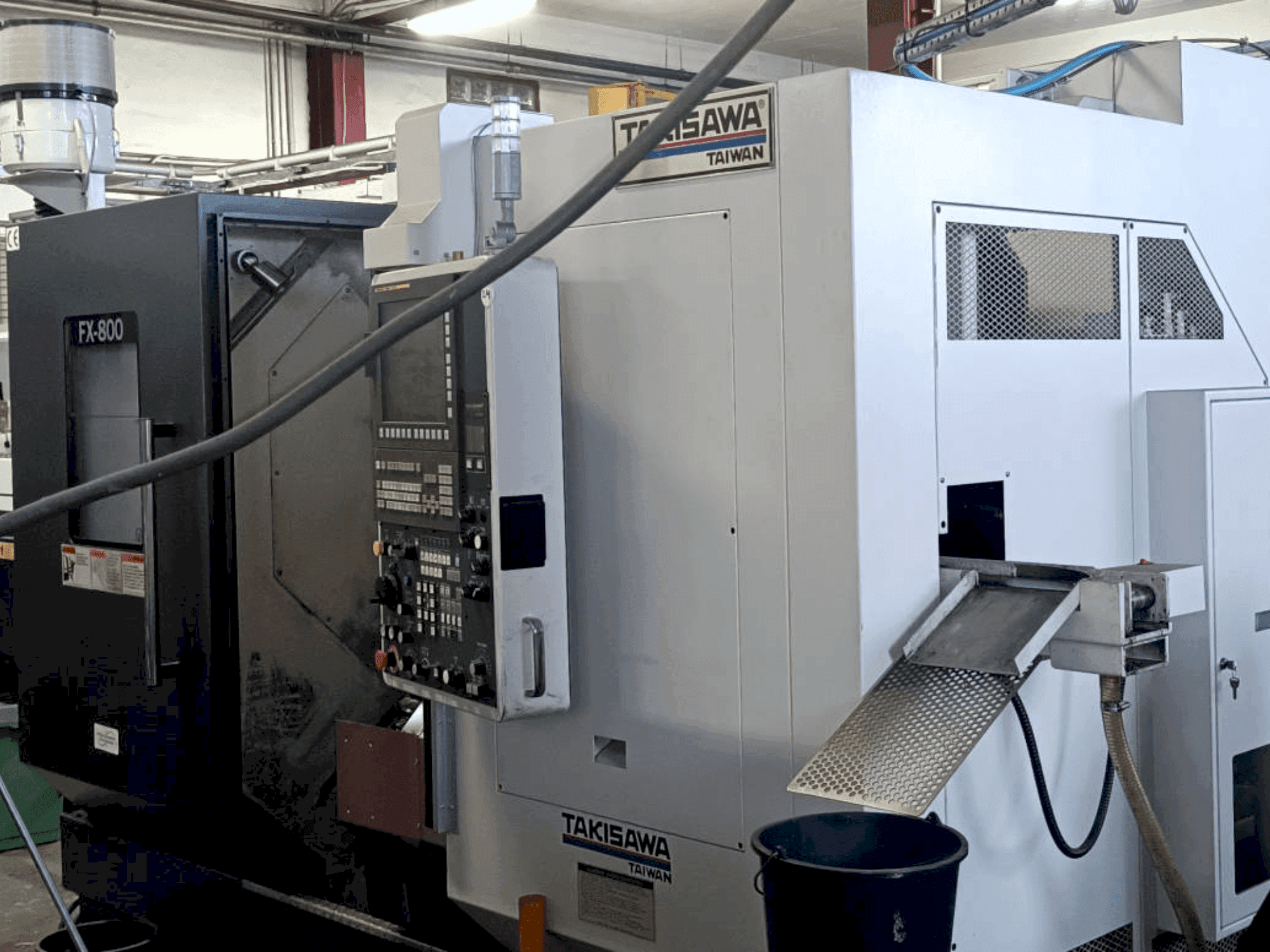

Takisawa FX800

Photo Gallery

Takisawa - FX800DE-TUR-TAK-2017-00004

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used Takisawa FX800 For Sale | gindumac.com

Show in original language

This 8-axis Takisawa FX800 was manufactured in 2017, a robust horizontal turning machine featuring dual spindles and two 16-position turrets, one with a Y-axis. It supports bar work up to 1500 mm and includes a bar loader, parts removal unit, and chip conveyor. Ideal for high-volume, precision turning operations. If you are looking to get high-quality turning capabilities, consider the Takisawa FX800 machine we have for sale. Contact us for more information about this machine.

Overview

brand: Takisawa
year: 2017
MODEL: FX800
application type: Turning
Location: Germany
machine type: Horizontal Turning Machine
control unit brand: FANUC

Technical Information - Takisawa FX800

Control Unit

Control Brand: FANUC
Control Model: Oi TF with Ethernet connection

Dimensions

Machine Depth: 5530 mm
Machine Height: 2340 mm
Machine Weight: 12300 kg

Movement

Number of Axes: 8

Technical Specification

Spindle Power: 15 kW
Spindle Speed: 5000 RPM

Additional Information

Additional equipment

Hydraulic clamping chuck Ø208 with hard clamping jaws // Hainbuch collet chuck SK 65 axfix
Clamping cylinders with clamping sleeves
Bar loader for 1500 mm bars with adjustable options
Parts removal unit up to Ø65 mm with conveyor belt
Coolant pumps (9 bar)
Air through the 2nd spindle for blowing and ejection
Extraction system with filter
Special parting-off holder for parting blades from EWS
Various clamping heads SK 65 // Various ER32 collets
Camera surveillance // Tool monitoring: RAKU RAKU

Machine Benefits

Technical Machine Benefits

Tool shank size: □25 mm
Drill bar diameter: Ø40 mm
4 driven tool holders (axial), for er32 collet (angle heads) // 4 driven tool holders (radial), for er32 collet
Power output of driven tools: 3. 7/5. 5 kw each
Both spindles equipped with a disc brake (parking brake)
Bar work capabilities up to 1500 mm // bar diameter through the main spindle: Ø65 (Ø67) // bar diameter through the feed spindle: Ø50 (Ø52) (occupied by automatic ejection)
Camera for machine tool interior with sapphire lens and durable housing // real-time monitoring with optional touchscreen
Ip68/169k rating for up to 100 bar high pressure
Maintenance-free, high resolution, and suitable for 24/7 operation
Various monitoring concepts and online support available

Extra Information

Easy installation with one hole and one PO connection

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
