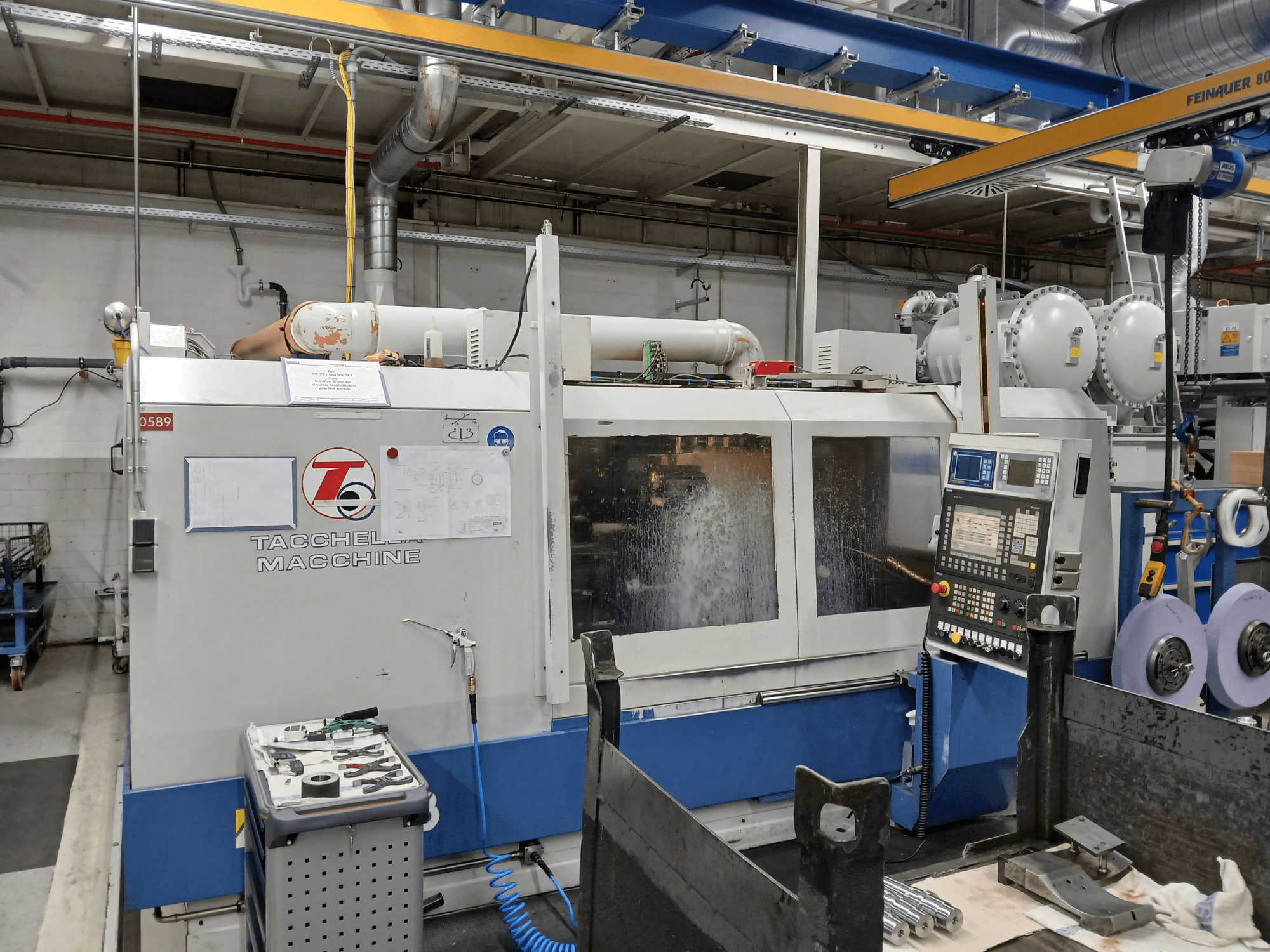

Tacchella machining center from a front view, with control panel and tools visible. Water coolant sprays during operation.
Tacchella machining center from a front view, with control panel and tools visible. Water coolant sprays during operation.

Tacchella - Proflex 3DE-GRI-TAC-2007-00001

£ 30,765
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This 4-axis Tacchella Proflex 3 cylindrical grinding machine was manufactured in 2007. It features a grinding length of 1200 mm, a max grinding diameter of 350 mm, and a total load capacity of 47 kW. The machine is equipped with a Siemens Sinumerik 840D control system, ensuring precise and efficient operations. If you are looking to get high-quality grinding capabilities, consider the Tacchella Proflex 3 machine we have for sale. Contact us for more information.

Overview

  • brand: Tacchella
  • year: 2007
  • MODEL: Proflex 3
  • application type: Grinding
  • Location: Germany
  • machine type: Cylindrical Grinding Machine

Technical Information - Tacchella Proflex 3

Dimensions

  • Machine Weight: 9600 kg

Movement

  • Number of Axes: 4
  • X-axis Travel: 350 mm
  • Z-axis Travel: 1750 mm

Additional Information

  • Distance between centres: 1600 mm

  • Grinding length: 1200 mm

  • Centre height: 180 mm

  • Max. grinding diameter: 350 mm

  • Max. workpiece weight: 250 kg

  • Total load: 47 kW

  • Total axes: 4 (X, Z, B, C)

  • X-axis: stroke 350 mm; rapid 20,000 mm/min; resolution 0.0001 mm

  • Z-axis: stroke 1750 mm; rapid 20,000 mm/min

  • B-axis (wheelhead swivel): -30° to +210°; resolution 0.001°

  • C-axis (headstock): variable speed; angular control

  • Wheelhead: turret for 3 wheels; 2 spindles 15/11.5 kW; air cushion; coolant; optional 63 m/s

  • Front grinding wheel: 610×100×203.2 mm; 50 m/s; 15 kW

  • Rear wheel (thread/plunge): 508×80×203.2 mm; 50 m/s; 11.5 kW

  • Headstock: C-axis drive; 15 kW spindle; 100 Nm torque; water-cooled

  • Tailstock: hydraulic; quill 100 mm; self-aligning; adjustable centre pressure

  • Dressing: tailstock dresser; optional headstock dresser; programmable diamond roll

  • Measuring: in-process diameter and length gauges

  • Hydraulic: auxiliary unit with filter/flow monitor

  • Coolant: main and bed flushing circuits; full enclosure; safety interlocks

  • CNC control: Siemens Sinumerik 840D OP12; 2.5 MB CNC; 128 kB PLC; Pentium III PC; Windows XP; multiple interfaces

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
