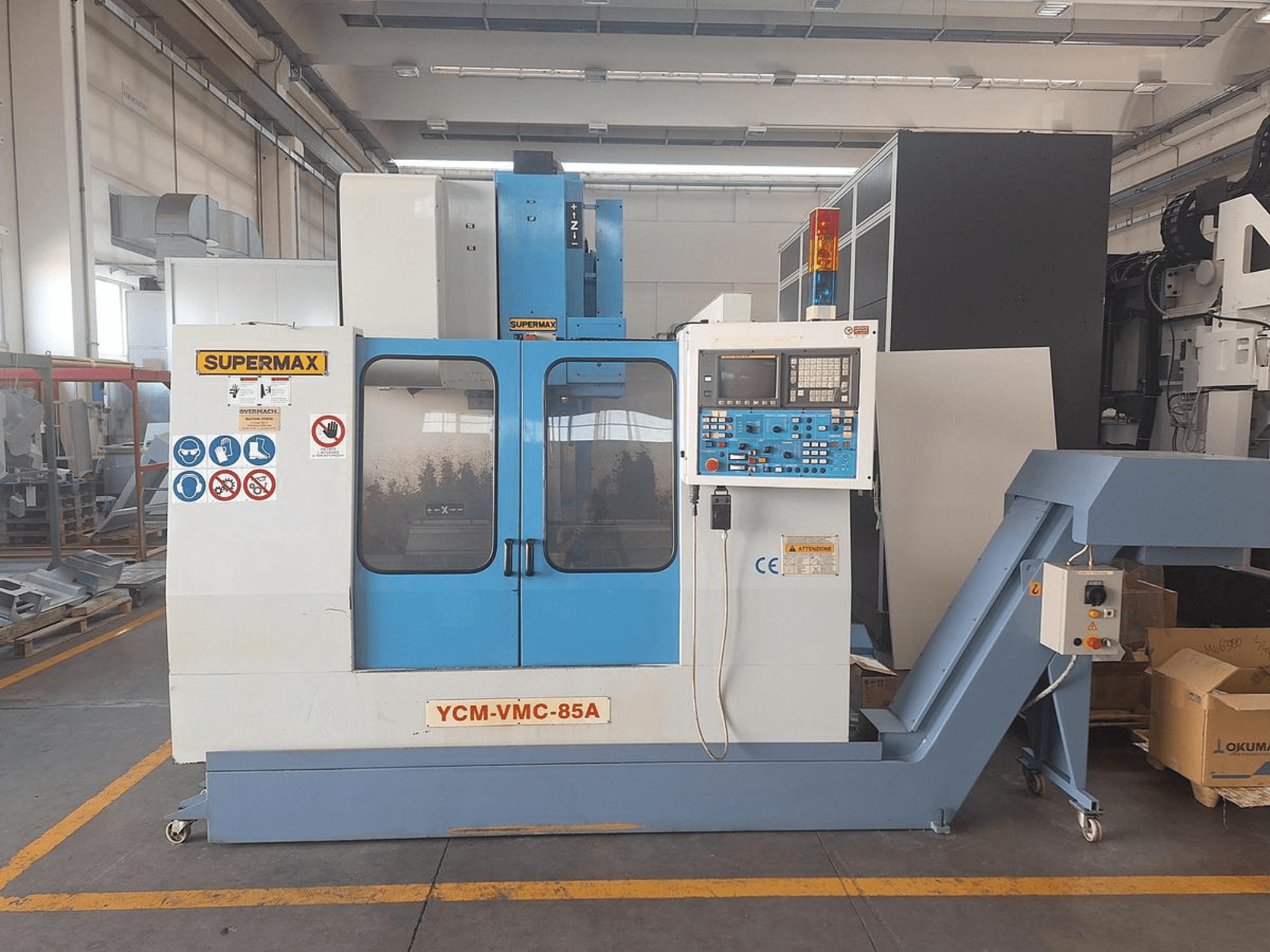

This 3-axis SUPERMAX YCM-VMC-85A was manufactured in 1996. It features a table size of 940 × 400 mm, with an X-axis travel of 850 mm, Y-axis travel of 440 mm, and Z-axis travel of 630 mm. The machine is equipped with a spindle speed of 8,000 rpm and a tool changer with 22 positions. If you are looking to get high-quality machining capabilities, consider the SUPERMAX YCM-VMC-85A vertical machining centre we have for sale. Contact us for further details.
Overview
- brand: SUPERMAX
- year: 1996
- MODEL: YCM-VMC-85A
- application type: Milling
- Location: Italy
- machine type: Vertical Machining Centre
- control unit brand: FANUC
Technical Information - SUPERMAX YCM-VMC-85A
Control Unit
- Control Brand: FANUC
- Control Model: Series 0-M
Movement
- Number of Axes: 3
- X-axis Travel: 850 mm
- Y-axis Travel: 440 mm
- Z-axis Travel: 630 mm
Technical Specification
- Spindle Power: 7.5 kW
- Spindle Speed: 8000 RPM
Additional Information
Tool taper: BT40
Table
Outer length: 940 mm
Outer width: 400 mm
Table load: 250 kg
Number of tool slots: 22
Chip conveyor: Hinged belt type
External hydraulic power unit
Automatic lubrication system
Pneumatic filtration/regulation unit
Work status tower light (red/yellow/green)
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
