➤ Used Parpas P15 A For Sale | gindumac.com

Show in original language

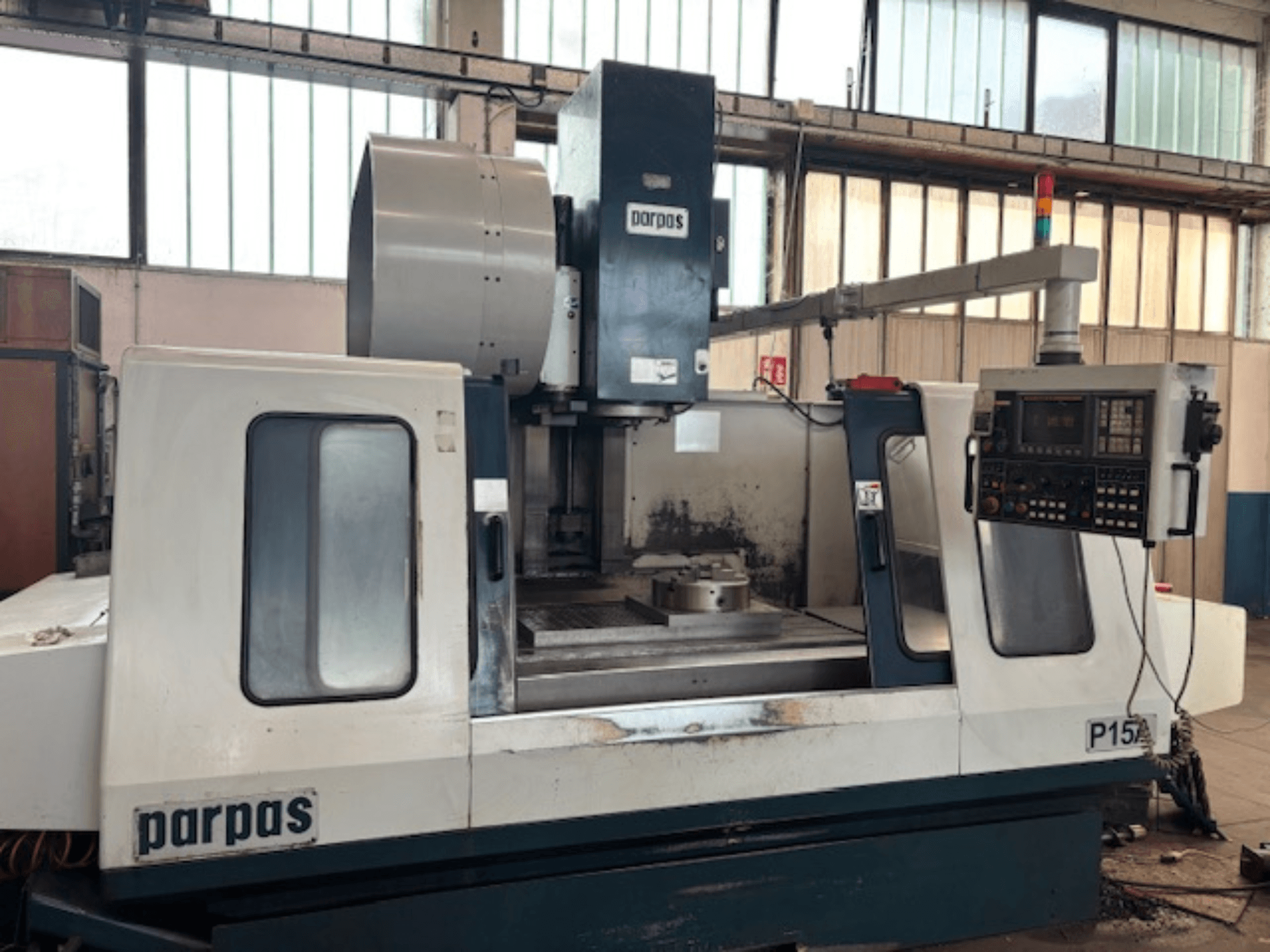

This 3-axis Parpas P15 A was manufactured in 2009. It features a generous X-axis travel of 1,450 mm, Y-axis travel of 650 mm, and Z-axis travel of 610 mm. The machine includes a robust table size of 1650 x 700 mm and a maximum table load of 1,200 kg. If you are looking to get high-quality machining capabilities, consider the Parpas P15 A vertical machining centre we have for sale. Contact us for further details.

Overview

brand: Parpas
year: 1999
MODEL: P15 A
application type: Milling
Location: Italy
machine type: Vertical Machining Centre
control unit brand: FANUC

Technical Information - Parpas P15 A

Control Unit

Control Brand: FANUC
Control Model: Series 0-M

Dimensions

Machine Weight: 13000 kg
Table Load: 1200 kg

Movement

Number of Axes: 3
X-axis Travel: 1450 mm
Y-axis Travel: 650 mm
Z-axis Travel: 610 mm

Technical Specification

Max. Tool Weight: 15 kg
Spindle Power: 15 kW
Spindle Speed: 6000 RPM
Taper Size: ISO 50

Additional Information

Table:
- Dimensions: 1650 x 700 mm
- T-slots (width x number x pitch): 22 x 5 x 150 mm
Travels:
- Distance spindle nose to table: 200–810 mm
- Distance spindle center to column: 720 mm
Automatic tool changer:
- Capacity: 24 positions
- Max tool diameter: 110 mm
- Max tool length: 300 mm
- Tool holder type: CAT-50 / BT-50
General:
- Overall dimensions: 3,500 x 3,100 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
