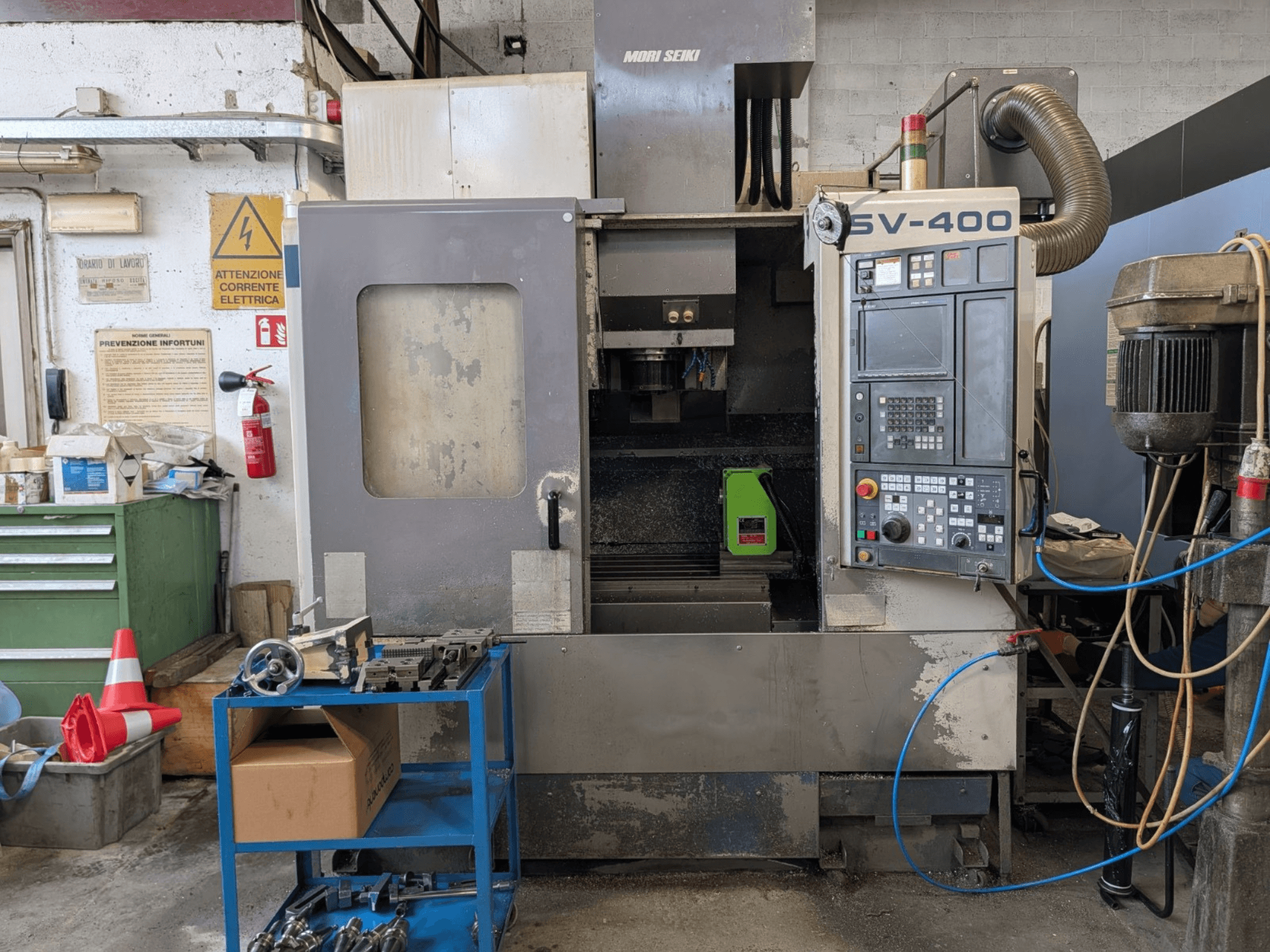

MORI SEIKI - SV-400IT-MIL-MOR-1998-00004

• Table: 900 × 500 mm; 4 T-slots (18 mm width × 100 mm pitch)

• Number of axes: 4 (X, Y, Z + 4th rotary axis; 4th axis supplied by accessory listed below)

• Distance spindle nose to table: 150–610 mm

• Spindle: max; 22 / 18.5 kW motor; 85 mm front bearing ID

• Tool magazine: max tool Ø 80 mm (adjacent) / 125 mm (non-adjacent); max tool length 300 mm; chip-to-chip 3.2 s

• Feedrates: Rapid X/Y/Z 32,000 mm/min; max working feed 16,000 mm/min

• Axis motor power: X/Y 2.1 kW; Z 4.4 kW

• CNC control: MORI-FANUC MSC-501 (compatible with MSC-518); memory 320 m; functions include helical interpolation and cutting force control (Power Monitor)

• Coolant system: 50 bar high-pressure through-spindle coolant (TSC)

• Features: air blow for part cleaning, full enclosure, end-of-cycle lamp, RS-232 interface

• Floor space: 2,200 × 2,550 mm

• Electrical: total installed power 50.2 kVA; 380 V, 50 Hz

Additional equipment

• 4th axis attachment: Tsudakoma RN-150R rotary table with 200 mm faceplate and tailstock

• Chip management: 2× rear-discharge chip conveyors
