Engel - duo 5160/700PL-INJ-ENG-2018-00001

Name: Engel duo 5160/700
Brand: Engel
SKU: PL-INJ-ENG-2018-00001
Price: 136984 GBP
Availability: InStock

£ 136,984

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Plastics Processing Machinery
➤ Used Engel duo 5160/700 For Sale | gindumac.com

Show in original language

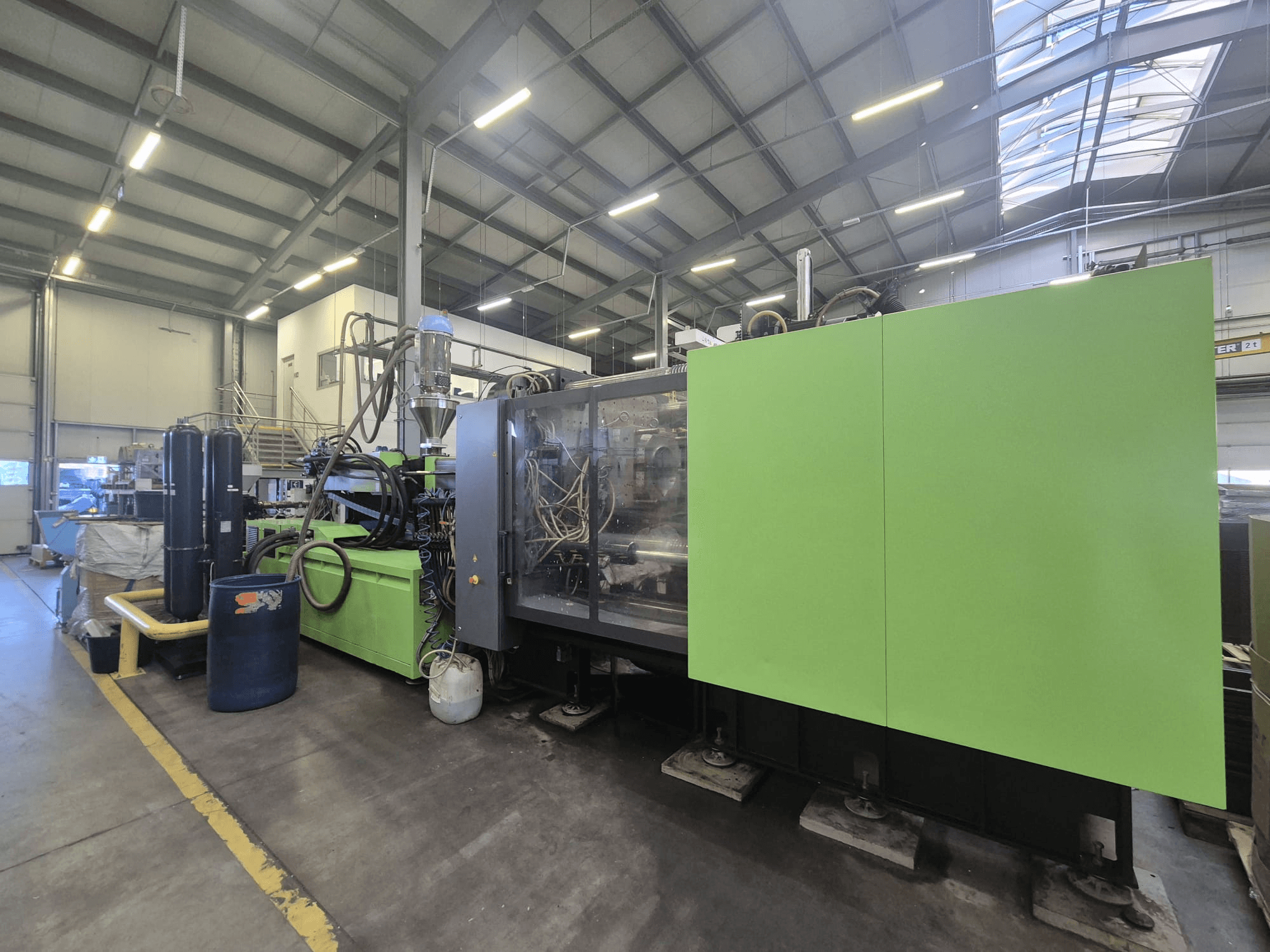

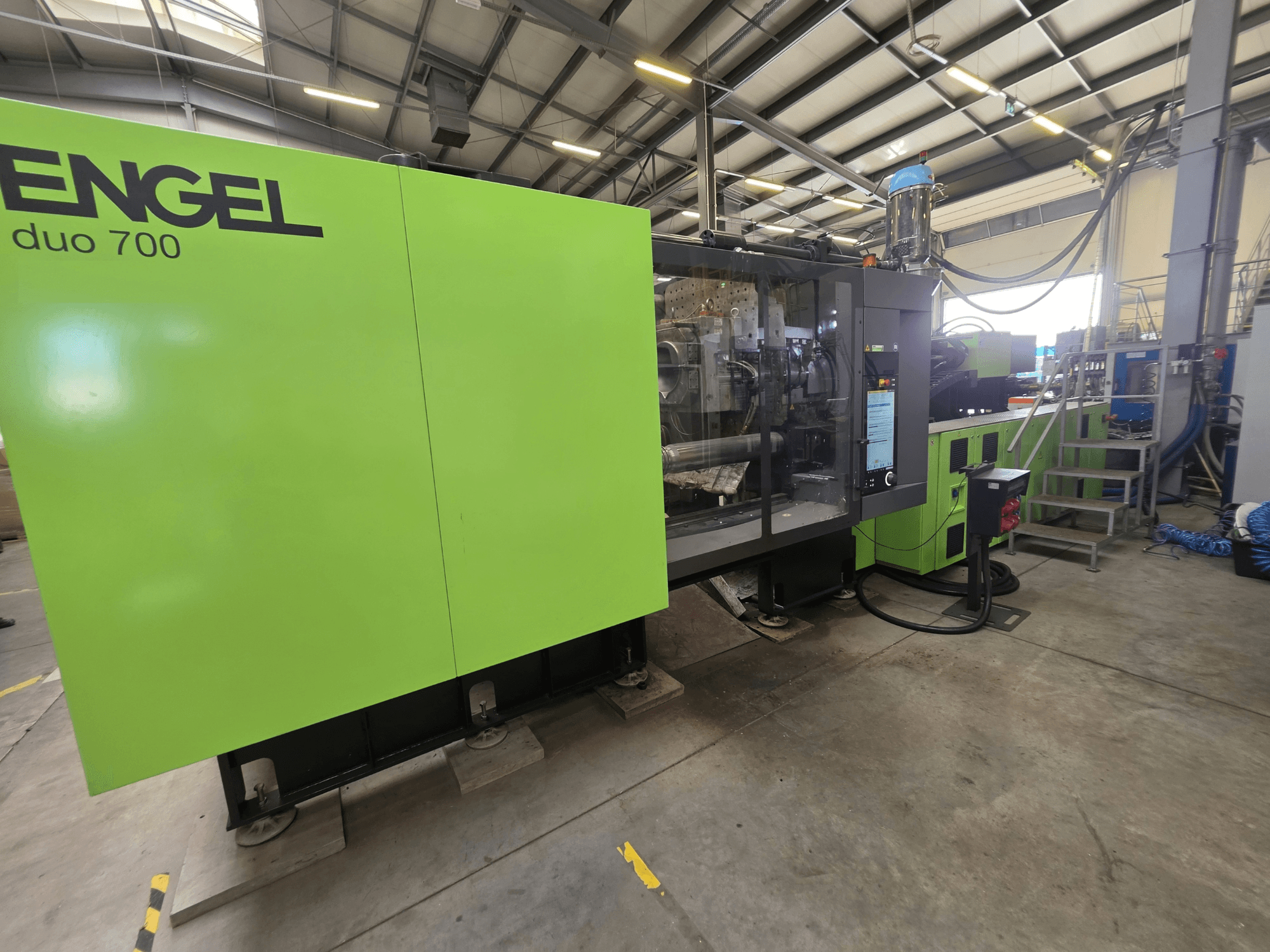

Hydraulic injection moulding machine manufactured in 2018. This ENGEL duo 5160/700 features a clamping force of 7000 kN and platen dimensions of 1510 x 1440 mm. The machine includes a screw diameter of 80 mm and a shot volume of 2061 cm³. If you are looking to get high-quality injection moulding capabilities, consider the ENGEL duo 5160/700 machine we have for sale. Contact us for further details.

Overview

brand: Engel
year: 2018
MODEL: duo 5160/700
production hours: 54823
application type: Injection Moulding
Location: Poland
machine type: Hydraulic Injection Moulding Machine
control unit brand: ENGEL

Technical Information - Engel duo 5160/700

Control Unit

Control Brand: ENGEL
Control Model: CC300

Dimensions

Machine Height: 2320 mm
Machine Length: 8200 mm
Machine Weight: 20000 kg
Machine Width: 2780 mm

Technical Specification

Clamping Force: 7000 kN
Max. Shot Weight: 1916 g
Screw Diameter: 80 mm

Additional Information

Operating hours: 54,823 h
Clamping unit:
- Platen dimensions: 1,510 x 1,440 mm
- Distance between tie bars: 1,000 x 960 mm
- Min. mould height: 450 mm
- Max. mould height: 950 mm
- Max. opening width: 1,850 mm
Injection unit:
- Injection unit size: 5160
- Shot volume: 2,061 cm³
- Max. injection pressure: 2,300 bar
Electrical and hydraulic:
- Hydraulic pump motor power: 109 kW
- Heating power: 40.7 kW

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
