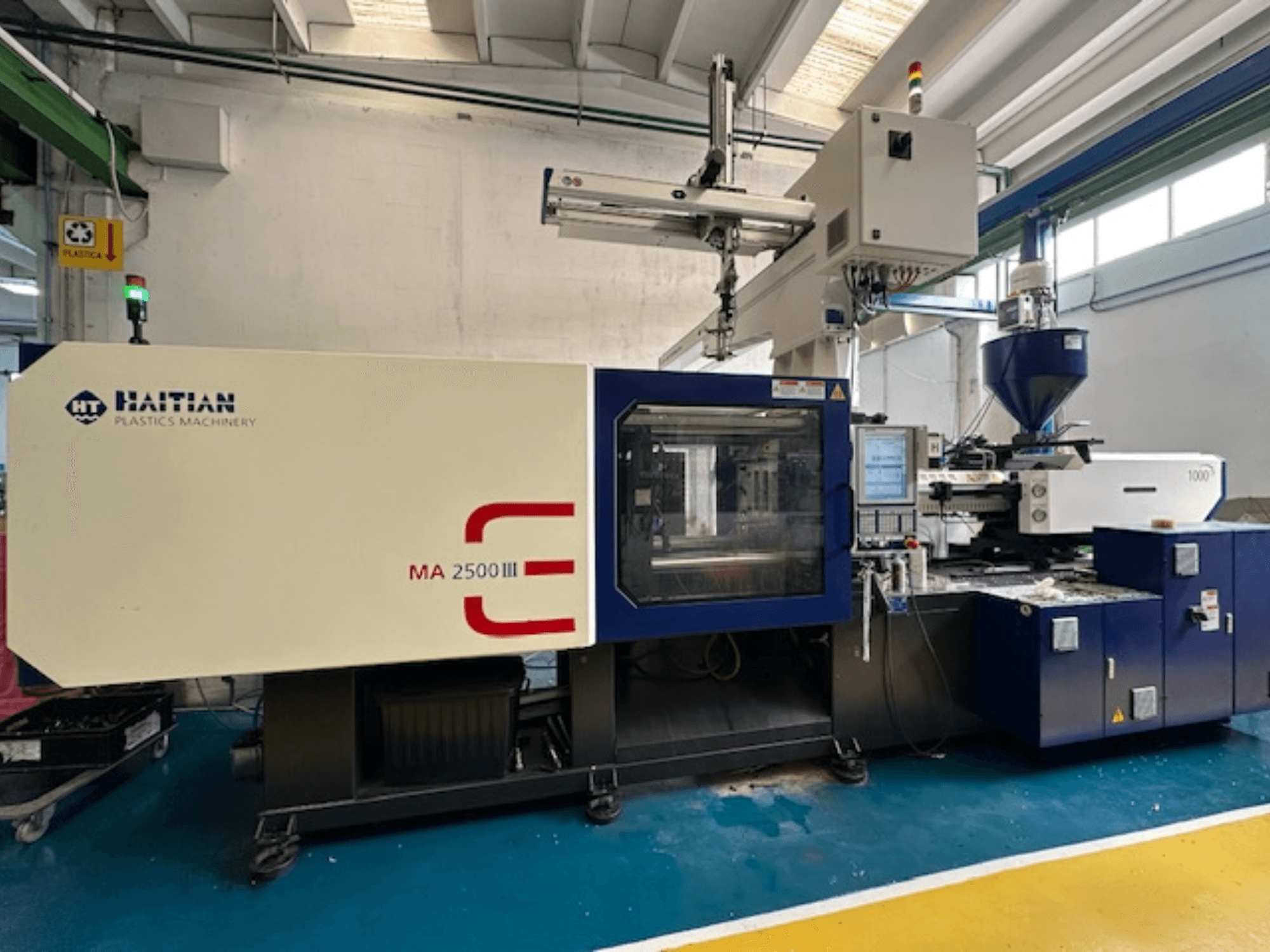

HAITIAN - MA 2500 III IT-INJ-HAI-2023-00001

• Clamping unit

  • Opening force: 165 kN

  • Platen size: 850 x 850 mm

  • Opening stroke: 540 mm

  • Tie bar distance: 580 x 580 mm

  • Max mould height: 580 mm

  • Min mould height: 220 mm

  • Ejector stroke: 150 mm

  • Ejector force: 62 kN

  • Min mould dimensions: 410 x 410 mm

• Injection unit

  • Euromap classification: 1000

  • L/D ratio: 20

  • Shot volume: 570 cm³

  • Effective injection volume: 519 g

  • Injection rate: 281 g/s

  • Plasticizing capacity: 47.7 g/s

  • Injection pressure: 1850 bar

  • Screw speed: 180 rpm

  • Screw stroke: 240 mm

  • Carriage force: 99 kN

  • Pump motor power: 37 kW

  • Heater power: 21.45 kW

  • Oil tank capacity: 340 L

• Dimensions

  • Machine size: 6.19 x 1.60 x 2.42 m

• Control

  • Controller: KEBA 2985 – CP053

  • Features:

    • 15” colour touchscreen

    • Euromap 67 robot interface

    • USB memory

    • 200 mould memory

    • Cycle history

    • Alarm tower

    • RFID login/password

    • Multilanguage interface

    • Process graphs

    • Maintenance pages

    • Metric / imperial selectable

• Included options / extras (machine-integrated)

  • Bimetallic screw + barrel

  • Masterbatch dosing interface

  • Hydraulic radial extraction

  • Festo air blow system

  • 12-zone PSG central lubrication

  • 4-way flowmeter

  • Robot interface

  • Included screw H 3 zones

  • CE certified work cell

Additional equipment

• Robot included: HILECTRO V-1300ID Cartesian Robot (2023)

  • Type: 3-axis servo Cartesian robot

  • Suitable for: 380T to 530T presses

  • Travels: X 2000 mm / Y 880 mm / Z 1300 mm

  • Max extractable weight: 12 kg

  • Power: 400 VAC / 50-60 Hz

  • Precision: 0.1 mm

  • Robot weight: 530 kg

  • Included: Touchscreen controller, USB programs, pneumatic gripper, vacuum cups, conveyor ready

• Peripherals included: FORMAX E3 Monofase Hopper Loader (2 units)

  • Hopper capacity: 3.0 L

  • Power: 1150 W

  • Inlet diameter: 40 mm

  • Capacity: 70 kg/h

  • Voltage: 230 V

  • Weight: 13 kg each
