Star - SR-32JDE-TUR-STA-2007-00001
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- ➤ Used Star SR-32J For Sale | gindumac.com

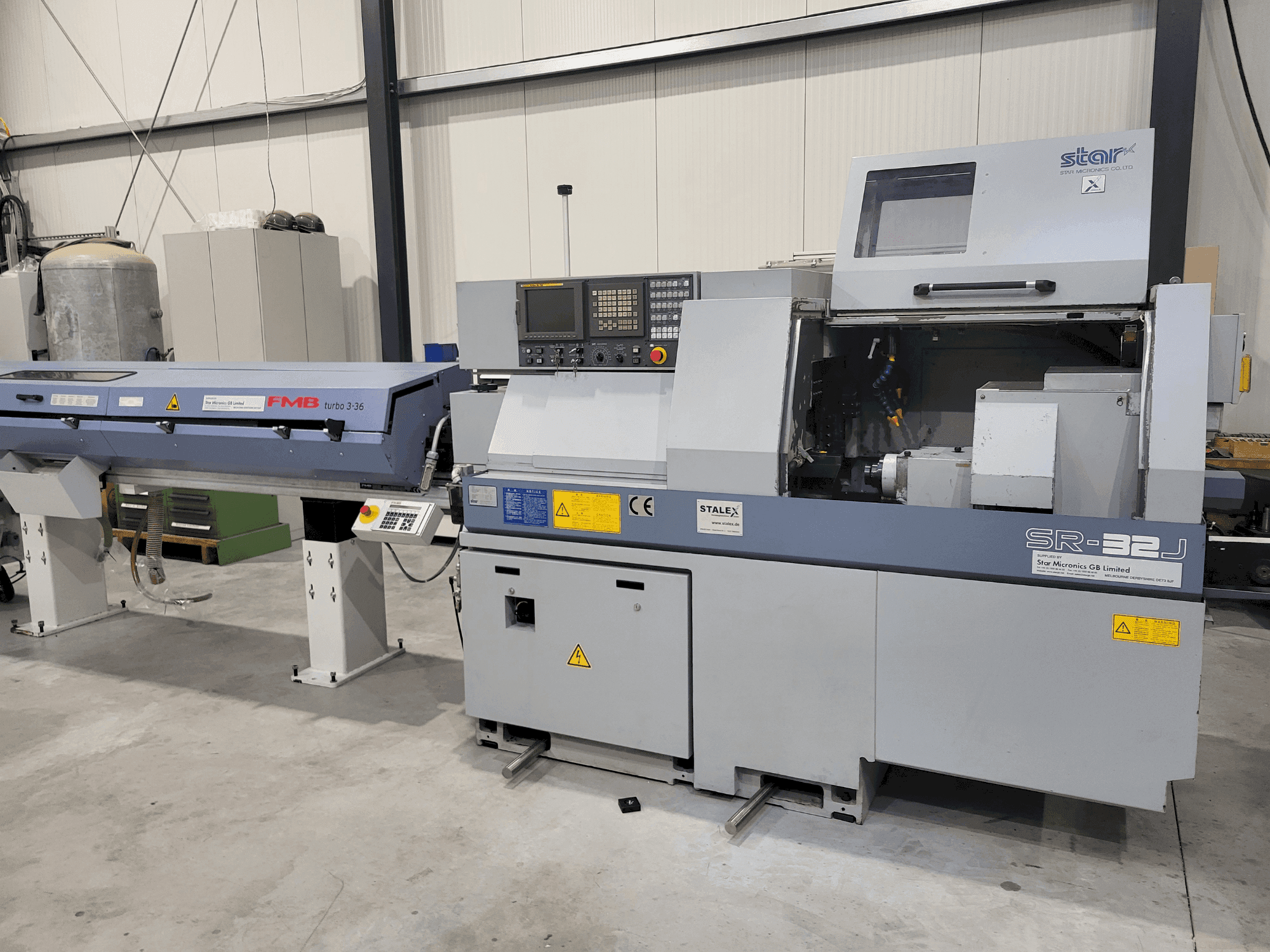

This 3-axis Star SR-32J swiss type turning machine was manufactured in 2007. It features a FANUC control system, FMB bar loader, and a maximum machining diameter of 32mm. The machine offers a rapid feed rate of 24m/min and a main spindle speed up to 7,000min. Ideal for high precision turning, it includes a coolant tank capacity of 174 liters. Contact us for more information about this machine.
Overview
- brand: Star
- year: 2007
- MODEL: SR-32J
- application type: Turning
- Location: Germany
- machine type: Swiss Type Turning Machine
Technical Information - Star SR-32J
Dimensions
- Machine Depth: 2711 mm
- Machine Height: 1705 mm
Movement
- Number of Axes: 3
Technical Specification
- Spindle Power: 5.5 kW
- Spindle Speed: 7000 RPM
Additional Information
Additional equipment
- With FMB bar loader
- The Star SR32J is sold together with an FMB trubo 3-36 stage loader.
- The bar loader was built in 2008, and the machine itself is from 2007.
- The machine features a JBS guide bushing system for increased precision thanks to flexible guide bushings.
- It also features a Star ER 16/ER11 front-end drilling unit with three spindles for front and rear machining.
Machine Benefits
Technical Machine Benefits
- Maximum machining diameter: 32mm
- Number of tools: 4~15 tools (including op)
- Tool shank dimensions: 6mm x 95~155mm
- Maximum drilling capability: 13mm
- Maximum tapping capability: m12xp1. 75
- Maximum die cutting capability: m10xp1. 5
- Power-driven attachment maximum drilling capability: 8mm
- Maximum tapping capability with power-driven attachment: m6xp1. 0
- Maximum milling capability: 10mm
- Main spindle indexing angle: c-axis control (15* : op)
Extra Information
Coolant Tank Capacity: 174 liters The following accessories are optional available: Two turning holders for Kennametal indexable heads One DCMT indexable head, one threaded plate indexable head Two drill holders, one ER16 and one ER20 A DCMT turning holder, a drill holder, and two driven tools Collets for diameters of 10 mm and 18 mm, as well as for 13 SW Counter spindle collets in diameters of 8mm and 9mm
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
