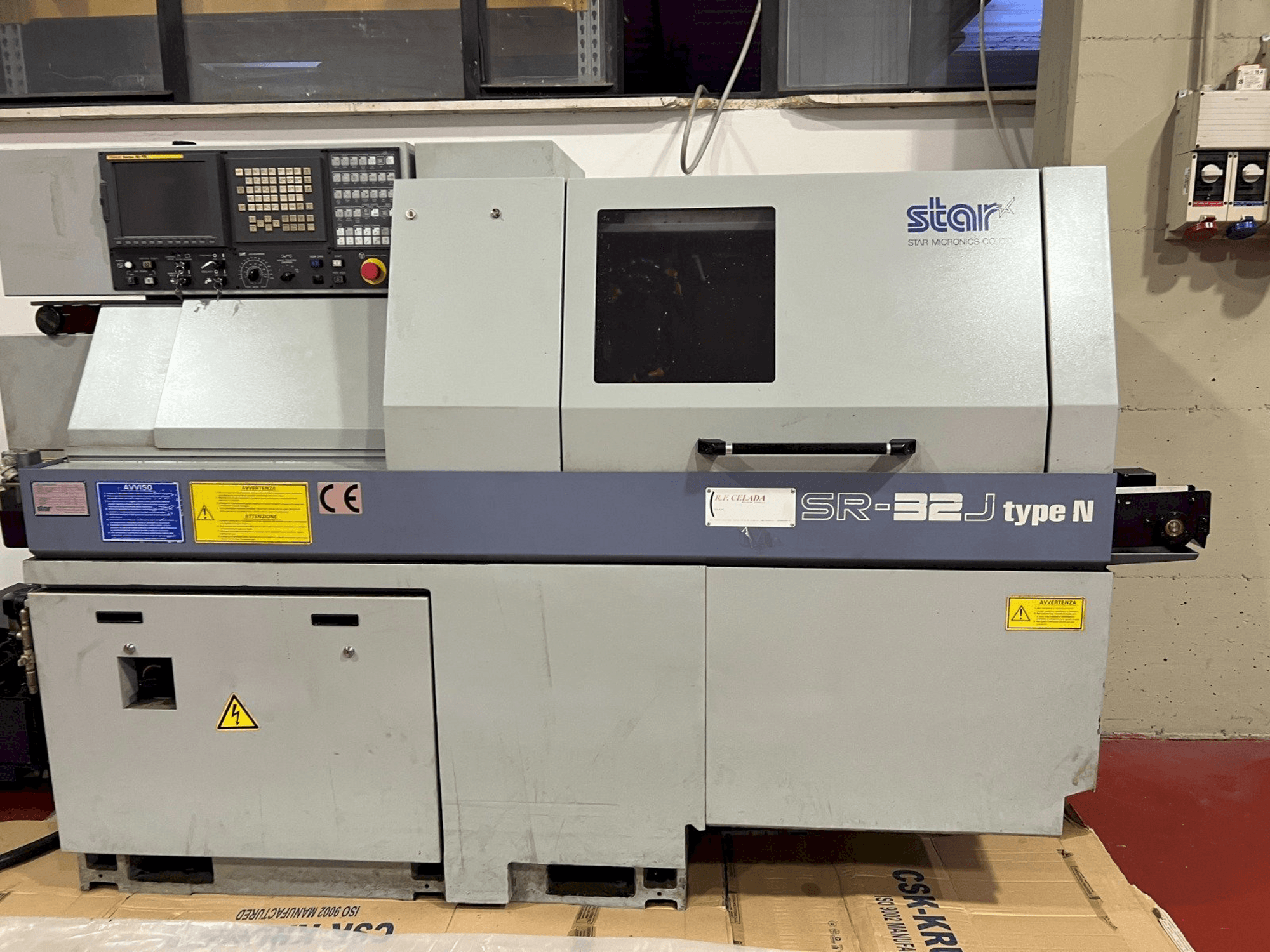

Star SR-32J type N lathe

Show in original language

This Star SR-32J type N lathe was built in the year 2011. It is equipped with a Fanuc Series 18i-TB control unit and has 9 axis. The machine has a spindle speed of 7000 rpm.

Overview

brand: Star
year: 2007
MODEL: SR-32J type N
application type: Turning
Location: Italy
machine type: Lathe
availability: Sold
control unit brand: Fanuc
GINDUMAC ID: IT-TUR-STA-2007-00001

Technical Information

General Data

Measurements width: 2520 mm
Measurements depth: 1700 mm
Measurements height: 1000 mm
Machine weight: 2800 kg

Control Unit

Brand: Fanuc
Model: SERIES 18I-TB

Main drive

Spindle speed range: 7000 1/MIN
Spindle motor power: 7.5 / 3.7KW
Number of axis: 9

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Max machining diameter 32 mm
- - Max drilling capacity: fixed tool diameter 13 mm , rotary tool diameter 8 mm
- - Maximum capacity in staining: fixed tool m12 x 1. 75 mm, m16 rotary tool x 1
- - Maximum milling capacity: end mill on comb slide diameter 10mm
- - Standard main spindle: useful diameter spindle hole 32mm, f37 caliper art 740
- - Shooting counter spindle: max grip and passage diameter 32 mm, spindle revolutions 7000 rpm, max piece length with frontal ejection 80 mm
- - Fast forward axes: 24m/min
- - Sitta comb with stations for motorized units: fixed turning tool stations 6, tool shank size 16 mm, stations for radial engines 5, motorized unit max speed 5000 rpm
- - Station for frontal tools: fixed tool stations for drilling/tapping 4, max clamping diameter with er 10/13mm collet
- - Tool posts for rear machining: fixed tool stations for drilling/tapping 4

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
