Star SR 20 J Type C

Photo Gallery

Star - SR 20 J Type CIT-TUR-STA-2011-00002

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used Star SR 20 J Type C For Sale | gindumac.com

Show in original language

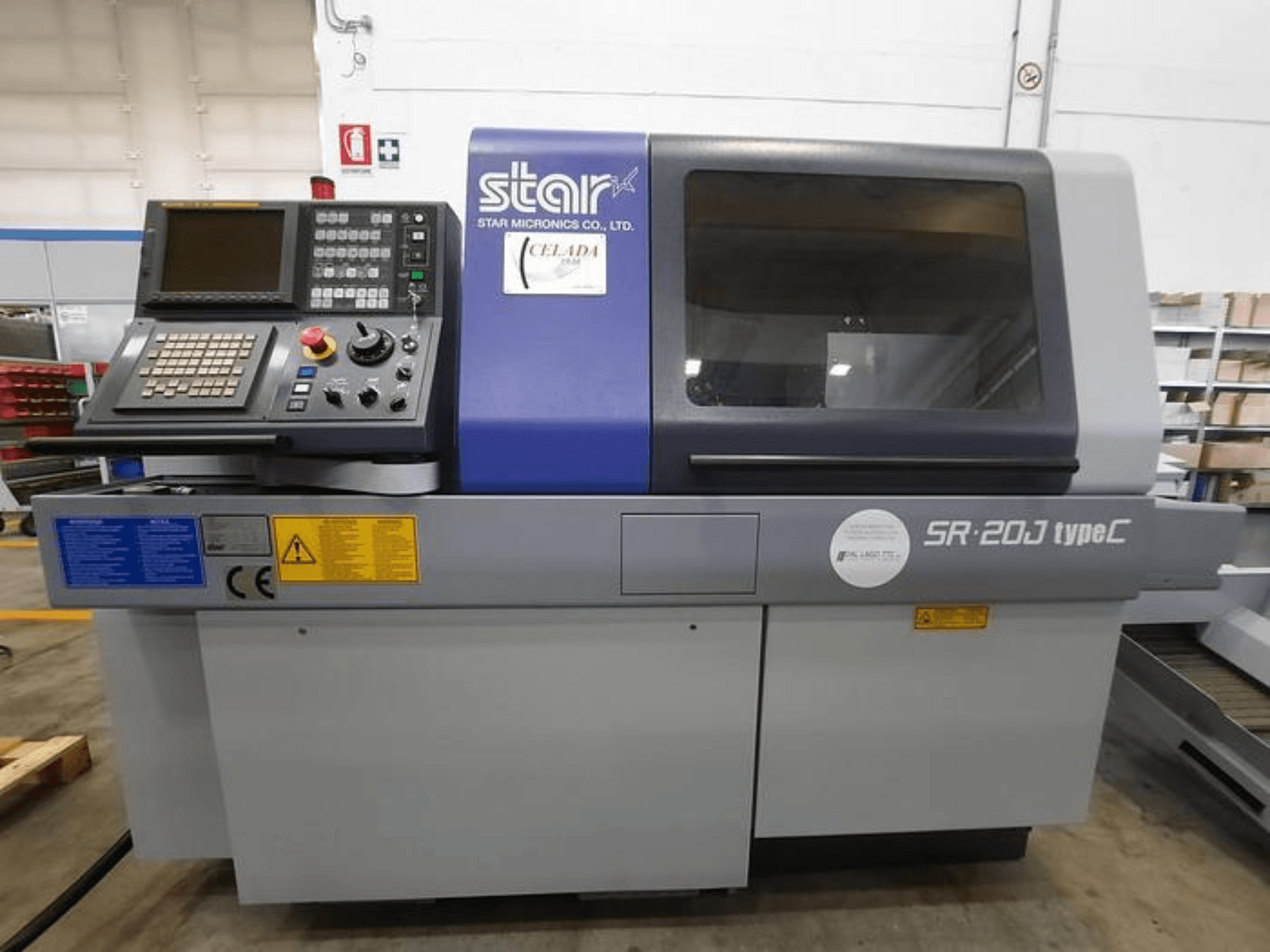

This Star SR 20 J Type C was manufactured in 2011. It features a max turning diameter of 20 mm, spindle speeds up to 8,000 rpm, and a spindle power of 2.2 kW. The machine includes six fixed turning tool positions and five radial motorized tools. Ideal for precision Swiss-type turning, it has a compact footprint of 2.20 × 1.20 m. Contact us for more information about this machine.

Overview

brand: Star
year: 2011
MODEL: SR 20 J Type C
application type: Turning
Location: Italy
machine type: Swiss Type Turning Machine

Technical Information - Star SR 20 J Type C

Dimensions

Machine Depth: 1200 mm
Machine Height: 1700 mm
Machine Length: 2200 mm
Machine Weight: 2200 kg

Additional Information

Max Turning Diameter: 20 mm
Max Bar Feed / Movable Tailstock Stroke: 205 mm
Max Workpiece Length (front ejection): 80 mm
X-axis Travel: 205 mm
Z-axis Travel: 205 mm
C-axis Travel / Rotary: 0 – 360° (Max rapid 198000°/min)
Rapid Feed X / Z: 35 m/min (linear axes)
Max Working Feed X / Z: 10 m/min
Spindle Bore: 20 mm
Spindle Speed: 500 – 8000 rpm
Spindle Power: 2.2 / 1.5 kW
Fixed turning tools: 6 positions, 12 mm shank
Radial motorized tools: 5 positions, max 8000 rpm, 1.2 kW
Drilling/tapping: 4 fixed stations, max Ø8 mm, tapping up to M8×1.25
Tool Clamping: ER collets (max Ø10 mm)
Coolant Tank Capacity: 170 L, standard level control
Total Installed Power: 10 kVA

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
