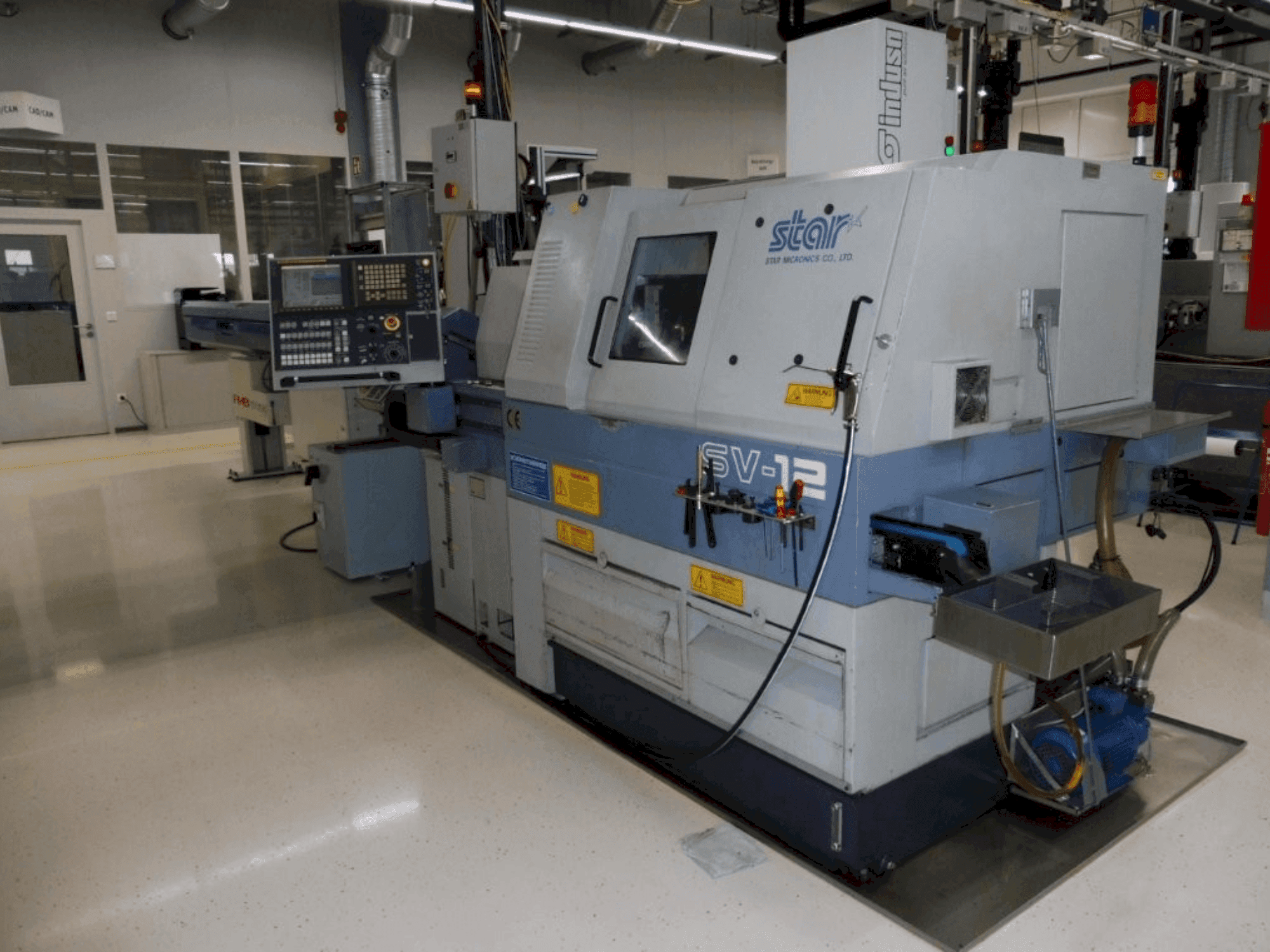

This STAR MICRONICS SV-12 was manufactured in 2004. A reliable Swiss type turning machine, it offers precision and efficiency for specialized turning operations. If you are looking to get high quality turning capabilities consider the STAR MICRONICS SV-12 machine we have for sale. Contact us for more information about this machine.
Overview
- brand: STAR MICRONICS
- year: 2004
- MODEL: SV-12
- production hours: 67000
- application type: Turning
- Location: Germany
- machine type: Swiss Type Turning Machine
- availability: Immediately
- control unit brand: FANUC
Technical Information - STAR MICRONICS SV-12
General Data
- Measurements width: 1375 mm
- Measurements depth: 2670 mm
- Measurements height: 1660 mm
- Machine weight: 3400 kg
Control Unit
- Brand: FANUC
- Model: Series 16i-T
Main drive
- Spindle speed range: 500–12000 min⁻¹ 1/MIN
- Spindle motor power: 2.2 kW (CONT.) / 3.7 kW (15 min/50% ED)
Movement
- X-AXIS Movement: 15000 MM
- Y-AXIS Movement: 15000 MM
- Z-AXIS Movement: 18000 MM
Media
- Internal cooling: Yes
Additional Equipment
- - Bar Feeder: Yes
- - Indusa Extraction System: Yes
- - Loading Magazine: FMB Minimag 18
- - Workpiece drm: Φ13 mm
Additional Information
- Technical Machine Benefits:
- - Several parts are completely new, including: power supply cable for a-axis sv-12, control cable for a-axis sv-12, brake cable for a-axis sv-12, alpha servo a3b/3000 a64+s
- - Technical machine benefits: integrated mechanical/electrical/hydraulic structure
- - Qualitative machine benefits: well-maintained from the medical sector
- - Operation mode: right-handed machine
- - Maximum machining diameter: Φ13 mm /maximum drilling: stationary tool: Φ10 mm, power-driven tool: Φ8 mm /maximum tapping: stationary tool: m8 × p1. 25, power-driven tool: m6 × p1. 0 /maximum milling: Φ10 mm /maximum die cutting: m8 × p1. 25 / maximum slotting: 2 mm width × 6 mm depth
- - Coolant oil: water-soluble / non-water-soluble
- - Hydraulic oil: mineral hydraulic oil (viscosity grade: iso vg32)
- - Lubrication oil: sliding surface lubricant (viscosity grade: iso vg68)
- - Power supply: voltage: 3 phase ac200v ±10%, frequency: 50/60 hz ±1 hz, capacity: loading power average: 10 kva
- Qualitative Machine Benefits:
- - The machine is very well-maintained, as it comes from the medical sector.
- - Tools Whirling Holder Polygon Apparatus Driven Holders (3) Swiveling Driven Holder Double Holders (2) Tool Holders (2) Fixed Holders (5)
Machine Benefits
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
