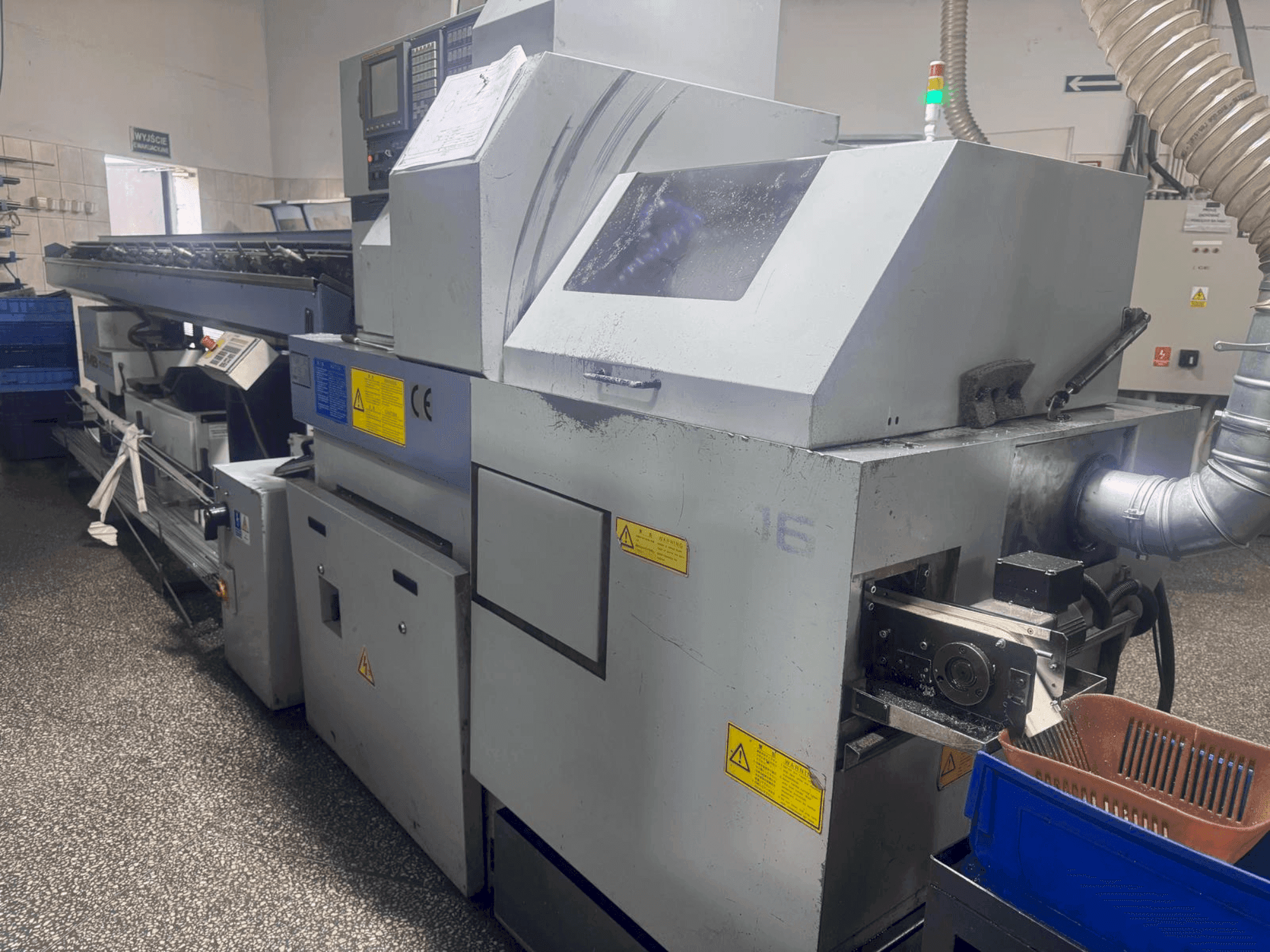

This 6-axis STAR MICRONICS SB-16 was manufactured in 2005, featuring a FANUC 18i-TB control unit, a maximum machining diameter of 18 mm, and a length per chucking of 200 mm. It boasts a main spindle speed up to 10000 rpm and dual spindle motor power of 2.2/3.7 kW. If you are looking to get high-quality turning capabilities, consider the STAR MICRONICS SB-16 machine we have for sale. Contact us for more information.
Overview
- brand: STAR MICRONICS
- year: 2005
- MODEL: SB-16
- application type: Turning
- Location: Poland
- machine type: Swiss Type Turning Machine
- control unit brand: FANUC
Technical Information - STAR MICRONICS SB-16
Control Unit
- Control Brand: FANUC
- Control Model: Series 18i-TB
Additional Information
Additional equipment
- Bar Feeder: Model: FMB MINIMAG 3200/A / Bar Length Capacity: Up to 3200 mm
Machine Benefits
Technical Machine Benefits
- Number of cnc axes: 6
- Cnc axis travel: x1-axis (main gang slide): ~45 mm / y1-axis (cross slide): ~320 mm / z1-axis (main spindle slide): ~205 mm / x2-axis (sub-spindle cross slide): ~100 mm /z2-axis (sub-spindle travel): ~205 mm / c-axis (main and sub-spindle): 360° full contouring
- Max. Machining diameter: 18 mm / max. Machining length per chucking: 200 mm
- Main spindle speed (max): 10000 rpm / spindle motor power: 2. 2 / 3. 7 kw
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
