- AGIE Agiecut VERTEX 3 Erosion machine

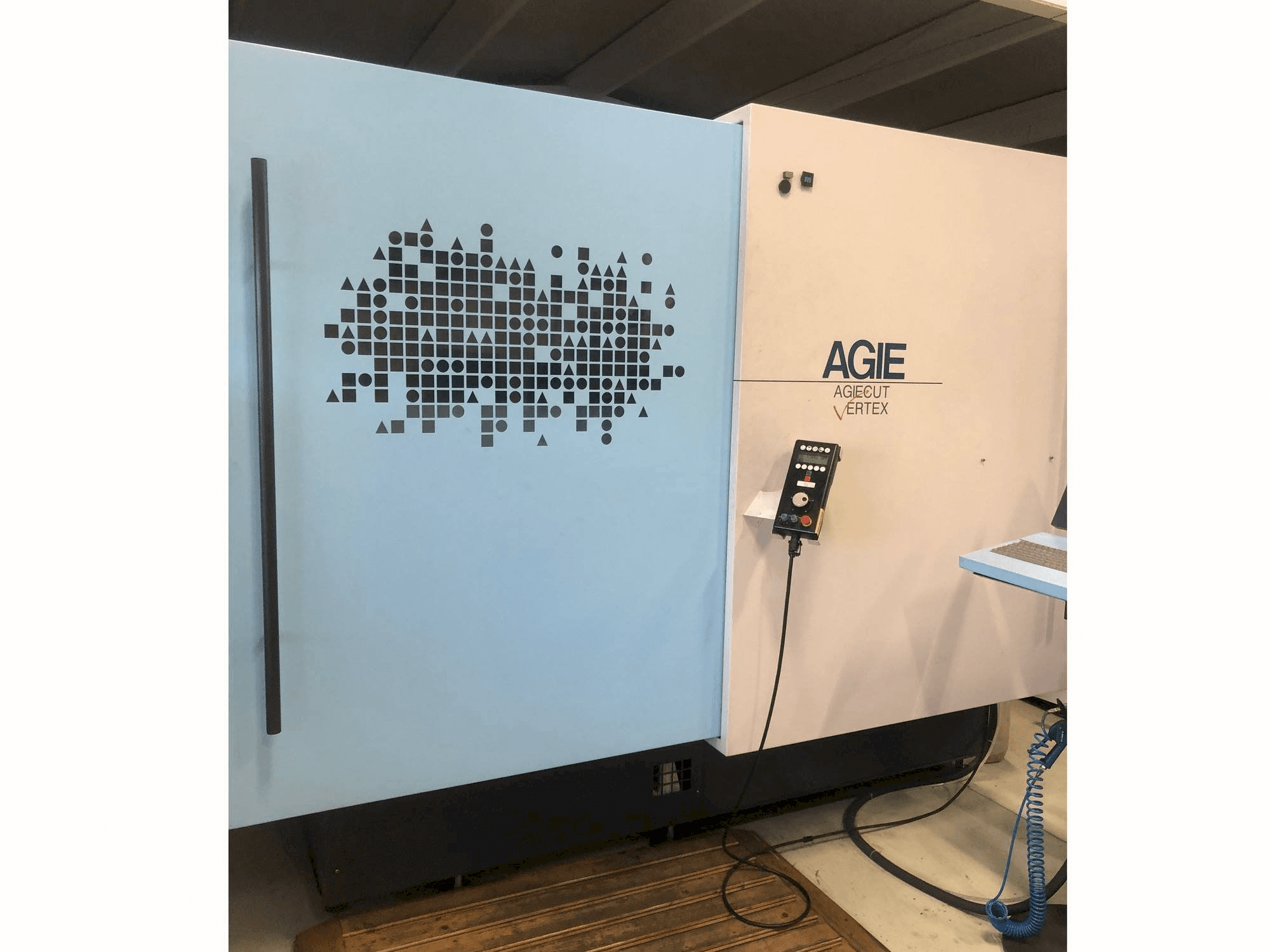

This AGIE Agiecut VERTEX 3 Erosion machine was manufactured in the year 2006 in Switzerland and has 37021 erosion hours. It is equipped with an Agievision 5 Software version 07.08.01 control unit.
Overview
- brand: AGIE
- year: 2006
- MODEL: Agiecut VERTEX 3
- production hours: 37021
- application type: EDM
- Location: Slovenia
- machine type: Wire EDM Machine
- control unit brand: AGIE
Technical Information - AGIE Agiecut VERTEX 3
Control Unit
- Control Brand: AGIE
- Control Model: Software version 07.08.01.
Dimensions
- Machine Depth: 2800 mm
- Machine Height: 2220 mm
- Machine Length: 2800 mm
- Machine Weight: 4400 kg
- Machine Width: 2400 mm
Movement
- Number of Axes: 3
- X-axis Travel: 500 mm
- Y-axis Travel: 350 mm
- Z-axis Travel: 256 mm
Technical Specification
- Max. Wire Diameter: 0.33 mm
- Min. Wire Diameter: 0.07 mm
Additional Information
Control: Agievision 5 (software version 07.08.01)
Condition: Excellent; regular maintenance; major service recently completed; fully operational; can be tested under power
EDM operating hours: approx. 37,021 h
Travels (U/V): ±70 / 70 mm
Distance for clamping: 1,100 mm
Max workpiece dimensions: 1050 × 650 × 250 mm
Max workpiece weight: submerged 400 kg / non-submerged 800 kg
Max cutting height: up to 250 mm
Taper capability: ±30° / 100 mm
Positioning
Max manual speed: 2 m/min
Max programmable speed: 3 m/min
Resolution: 0.0001 mm
Geometric tolerances: per manufacturer specifications
Wire system
Wire diameter range: 0.07–0.33 mm (standard 0.20 mm)
Wire spool capacity: up to 25 kg
Wire tension: 0–25 N
Wire speed: 60–300 mm/s
Wire feed: semi-automatic
Wire disposal: chopper system
Equipment & features
Automatic wire threading system
Threading nozzles: 2 mm (optional 1 mm / 0.6 mm)
Combined wire guide system and cylindrical wire guide
Electronic handwheel (manual control)
Remote control with LCD display
TFT control screen (1024 × 768)
Keyboard and mouse control
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
