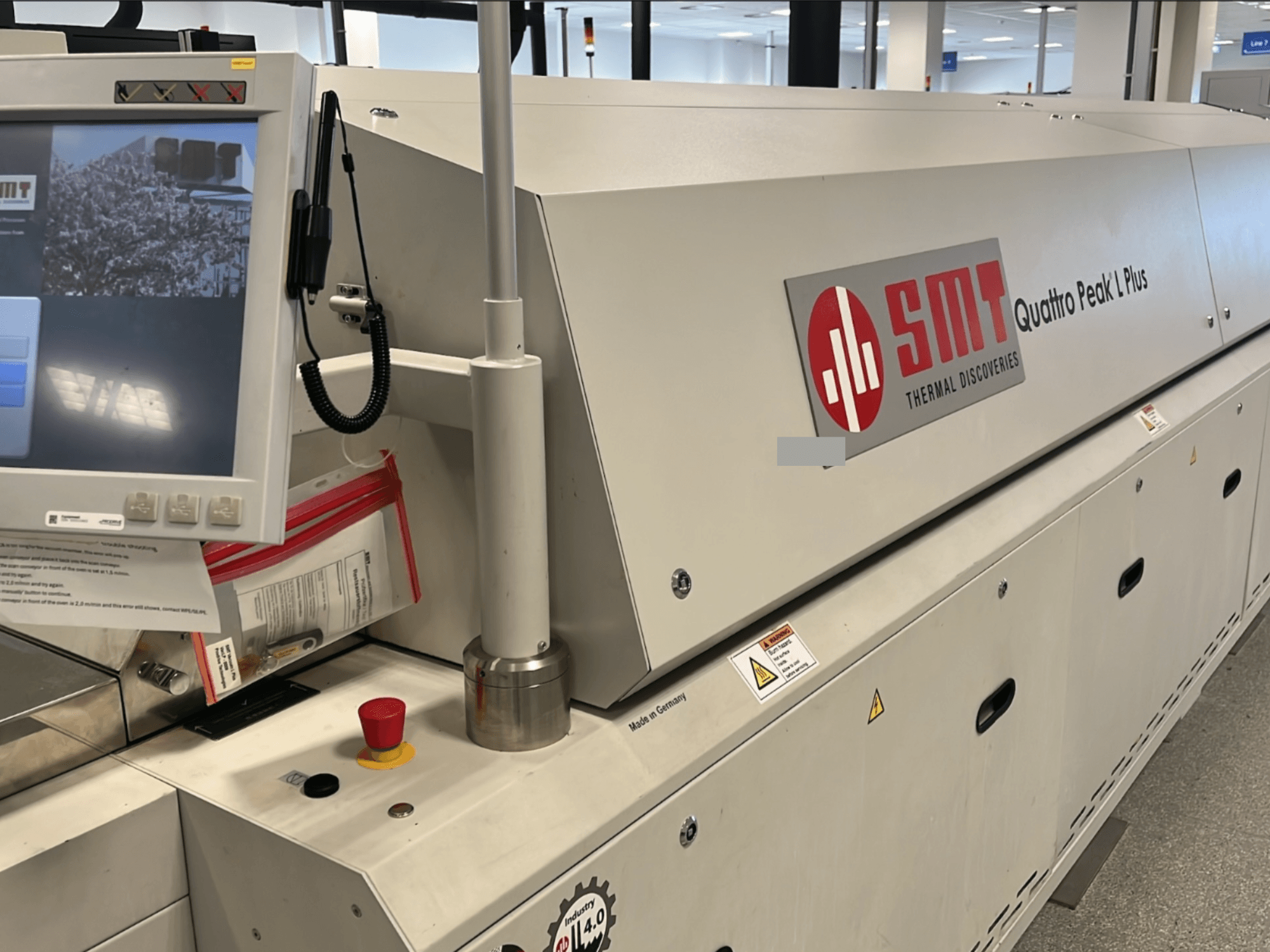

SMT Quattro Peak L Plus machine tool, front view, featuring control panel, safety buttons, and branding clearly visible.
SMT Quattro Peak L Plus machine tool, front view, featuring control panel, safety buttons, and branding clearly visible.

SMT - Vacuum L Plus VacNL-OTH-SMT-2018-00001

£ 53,746
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

Vacuum Reflow System VAC-L Plus manufactured in 2018. It features a comprehensive heating configuration with 5 preheating zones and 4 peak zones, along with a vacuum chamber measuring 450 x 510 mm. The typical conveyor speed is 1.3 m/min, and it includes a single lane chain conveyor. If you are looking to get high-quality reflow capabilities, consider the SMT Vacuum L Plus Vac machine we have for sale. Contact us for further details.

Overview

  • brand: SMT
  • year: 2018
  • MODEL: Vacuum L Plus Vac
  • production hours: 35069
  • application type: Other Sheet Metal Machinery
  • Location: Netherlands
  • machine type: Sheet Metal Machine

Technical Information - SMT Vacuum L Plus Vac

Dimensions

  • Machine Length: 4400 mm

Movement

  • Number of Axes: 4

Additional Information

  • Heating configuration: 5 x preheating zones, 4 x peak zones, 1 x vacuum chamber

  • Cooling configuration: 3 x zones standard (up to 5 optional)

  • Typical conveyor speed: 1.3 m/min

  • VAC cycle time: approx. 38 s per lane

  • Vacuum chamber dimensions (L x W): 450 x 510 mm (max. product)

  • Vacuum chamber cycle time extension: approx. 8–13 s

  • Process gas cleaning: 3 x high-temperature ABS

  • Fan speed control: Infinitely variable via frequency converter (5 pcs total)

  • UPS voltage: 24 V

  • Nitrogen residual oxygen display: DRSM011

  • Nitrogen measurement display: PC monitor

  • Conveyor type: Single-lane chain conveyor (pin chain)

  • Conveyor width: 65–510 mm

  • Conveyor rail: Fixed rail front (Rail 1)

  • Chain pin length: 3 mm

  • Center support height/drop: 10 mm / 10 mm

  • Network interface: Ethernet

  • Handling interface: SMEMA (IPC/SMEMA-STD1)

  • Cooling zone lengths: Zone 1 = 585 mm; Zone 2 = 473.5 mm; Zone 3 = 473.5 mm

  • Cooling water requirement: < 15°C and 15 l/min

  • Barcode interface: RS232

  • Monitoring sensors: PT100 (Guard software)

Additional equipment

  • Included: Not specified

  • Option compatibility (not included unless stated):

    • Nitrogen options: RE0004, RM0002, VA0002, RE0005

    • Cooling options: RE0026, RE0066, RE0067, RM0008

    • Process monitoring options: RE0007, AL0011

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
