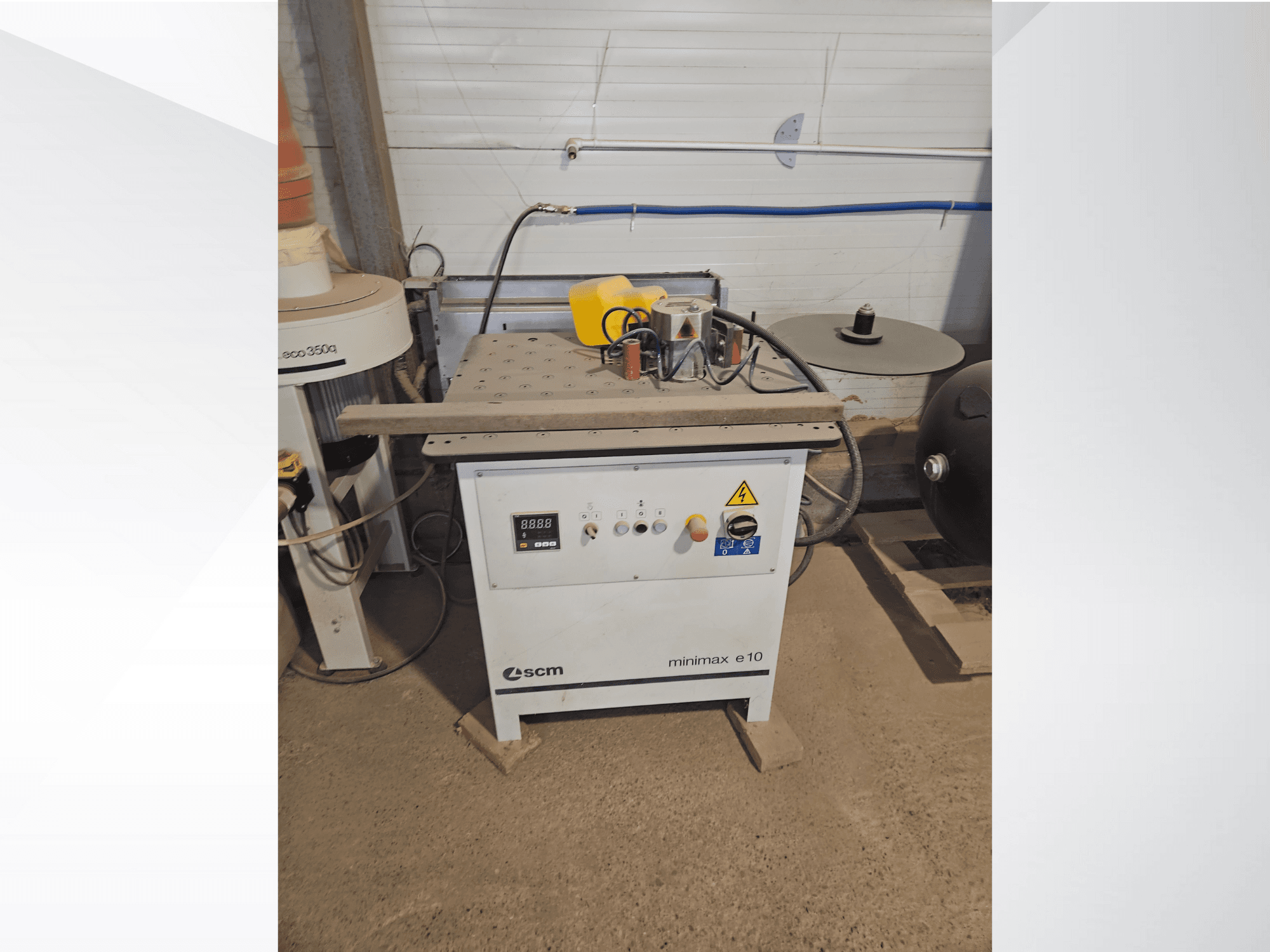

This SCM E10 edgebander was manufactured in 2019. It features a 0.4 to 3 mm edgebanding thickness capacity and can handle panel heights from 8 to 80 mm. The machine supports minimum panel dimensions of 50 mm in width and 210 mm in length. It operates with two feed speeds of 4 and 8 m/min and a maximum temperature range of 140 to 220 degrees C. Installed motor power is 3.5 kW. Contact us for more information about this machine.
Overview
- brand: SCM
- year: 2019
- MODEL: E10
- application type: Edge Banding
- Location: Romania
- machine type: Edgebander
Additional Information
Edgebanding Thickness Capacity: 0.4 to 3 mm
Thickness of Edges with Shear Device:
(80 mm height) 0.4 to 1.5 mm
(50 mm height) 0.4 to 2.5 mm
(45 mm height) 0.4 to 3 mm
Panel Height Capacity: 8 to 80 mm
Edge Height: 10 to 83 mm
Minimum Panel Width: 50 mm
Minimum Panel Length: 210 mm
Minimum Internal Radius with 0.4 mm Edgebanding:
Concave: 25 mm
Convex: 5 mm
Feed Speeds: 4 and 8 m/min
Maximum Operating Temperature: 140 to 220 degrees C
Installed Motor Power: 35 kW
Overall Dimensions: 39.37" x 29.13" x 43.3"
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
