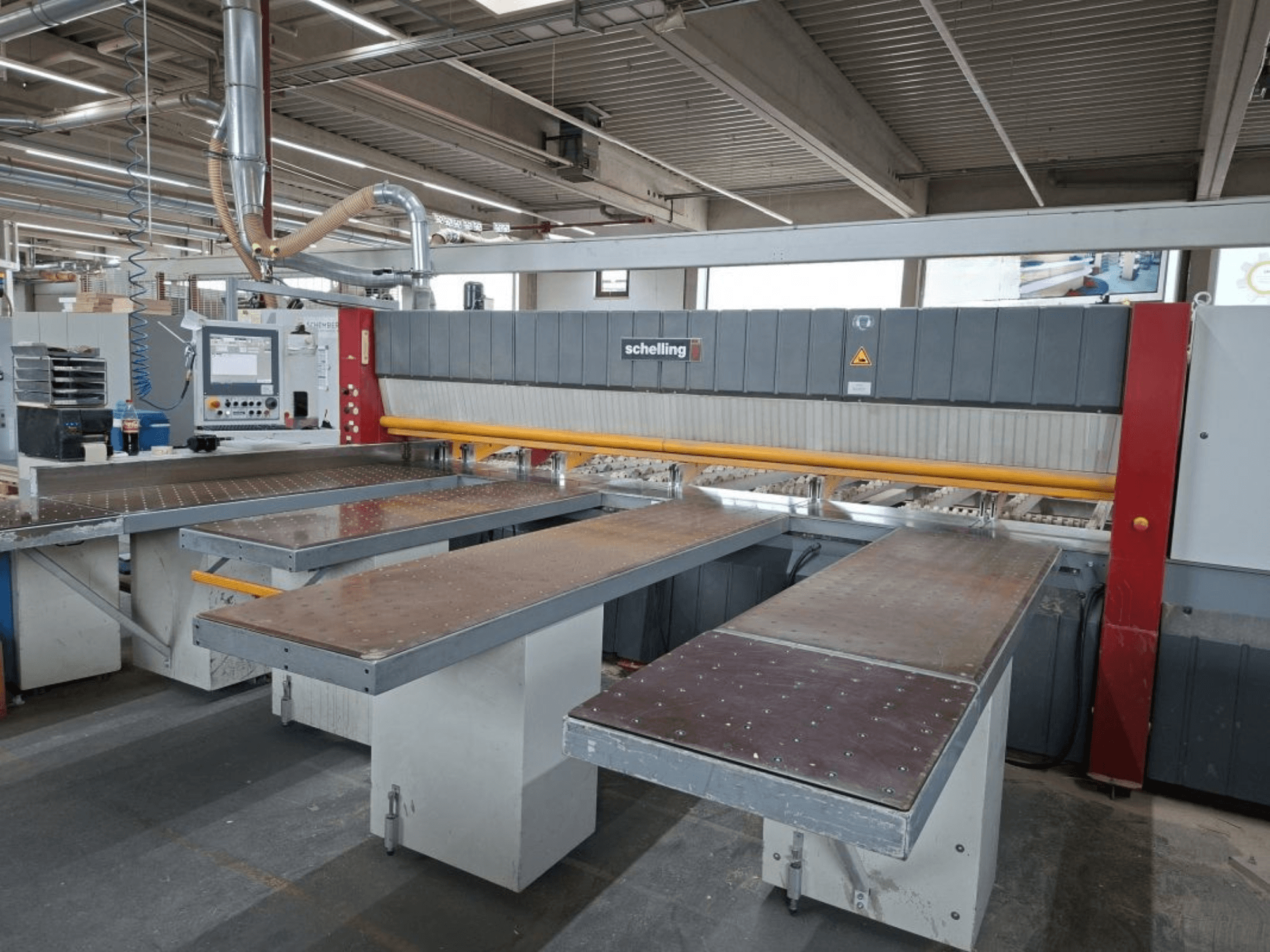

Panel saw SCHELLING FH 4 in workshop, showcasing dual extended tables and control panel. Front view highlighting operational setup.
Panel saw SCHELLING FH 4 in workshop, showcasing dual extended tables and control panel. Front view highlighting operational setup.

SCHELLING - FH 4DE-SAW-SCH-2012-00001

£ 104,610
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

Panel saw manufactured in 2012. This SCHELLING FH 4 features a nominal cutting length of 4250 mm and a maximum saw blade diameter of 350 mm. It offers a feed speed of up to 80 m/min and is equipped with an ARDIS software package for enhanced functionality. Includes a storage grundner. If you are looking to get high-quality panel cutting capabilities, consider the SCHELLING FH 4 machine we have for sale. Contact us for further details.

Overview

  • brand: SCHELLING
  • year: 2012
  • MODEL: FH 4
  • application type: Sawing (Wood)
  • Location: Germany
  • machine type: Panel Saw

Additional Information

Panel dimensions

  • Length: 2000–4100 mm

  • Width: 300–2100 mm

  • Thickness: 6–60 mm

  • Panel thickness tolerance: -0.2 to +0.2 mm

Machine specifications

  • Nominal cutting length (Saw Machine 430): 4250 mm

  • Main saw blade diameter (max): 350 mm

  • Scoring saw blade diameter: 300 mm

  • Max saw blade clearance above table: 95 mm

  • Max package height: 80 mm

  • Strip aligner alignment force: 400–2000 N/piece

  • Max clamp opening: 90 mm

  • Working height: 970 mm

  • Overall height: 2070 mm

Drives and speeds

  • Main saw motor power: 15 kW

  • Saw unit feed speed (forward): 5–120 m/min

  • Saw unit feed speed (reverse): 120 m/min

  • Feed speed (forward): up to 80 m/min

  • Feed speed (reverse): up to 80 m/min

Additional equipment

  • Panel storage system (Manufacturer: Grundner)

    • Length: 24.90 m

    • Width: 14.17 m

    • Stack height: 2 m

    • Lifting height: 2.10 m

    • Max panel size (L x W): 4.20 x 2.10 m

    • Min panel size (L x W): 1.80 x 0.60 m

    • Max lifting capacity: 250 kg

    • Horizontal drive power: 2.2 kW

    • Horizontal travel speed: approx. 120 m/min

    • Vertical travel speed: approx. 40 m/min

    • Panel material: suitable for vacuum gripping technology

    • Connected load: 6 kW

  • ARDIS software package

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
