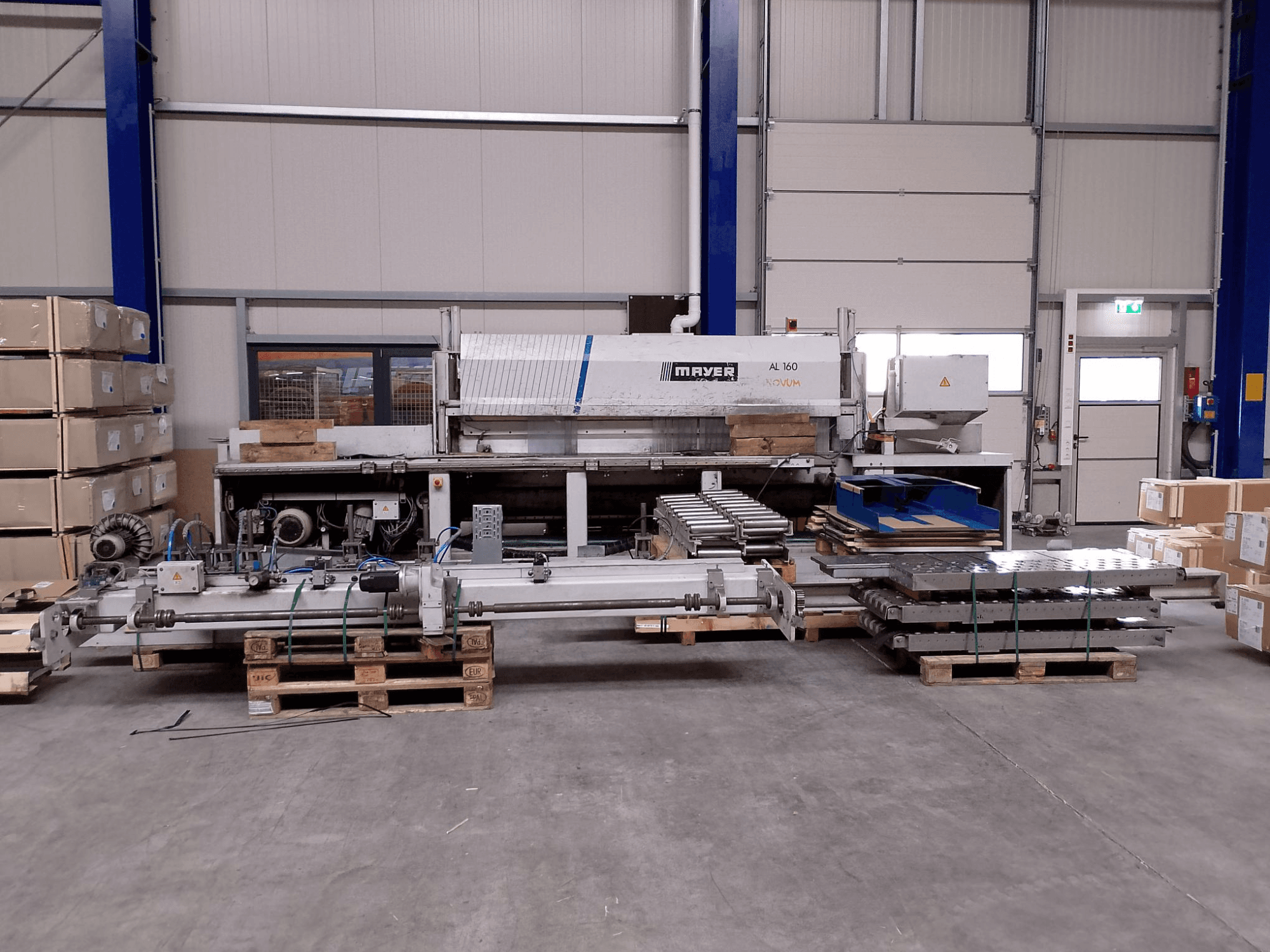

Panel saw manufactured in 2006. This MAYER AL160 features a saw blade diameter of 650 mm and a maximum cutting width of 3200 mm x 3200 mm. It has a main saw motor power of 35 kW and offers variable forward speeds for both the saw aggregate and infeed. If you are looking to get high-quality panel cutting capabilities, consider the MAYER AL160 machine we have for sale. Contact us for further details.
Overview
- brand: MAYER
- year: 2006
- MODEL: AL160
- application type: Sawing (Wood)
- Location: Germany
- machine type: Panel Saw
Technical Information - MAYER AL160
Dimensions
- Machine Height: 2400 mm
Technical Specification
- Max. Cutting Length: 3200 mm
Additional Information
- Main Saw Motor Power: 35 kW
- Saw Blade Diameter: 650 mm
- Package Clamps / Collets: 210 mm maximum
- Saw Aggregate Forward Speed: 0.2 - 60 m/min
- Saw Aggregate Return Speed: 60 m/min
- Infeed Forward Speed: 10 m/min
- Infeed Return Speed: 20 m/min
- Extraction Connections: 1 x 140 mm, 1 x 160 mm
- Working Height: 1100 mm
- Installation Dimensions: approx. 6280 mm (W) x 6855 mm (L)
- Cutting Width/Length: 3200 mm x 3200 mm
- Compressed Air Volume: 720 Nl/min
- Operating Pressure: min. 5 bar, max. 6 bar
- Component Condition Notes: Requires repair/adjustment on 3 package clamps, dust protection curtain, and cutting lips at the saw gap
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
