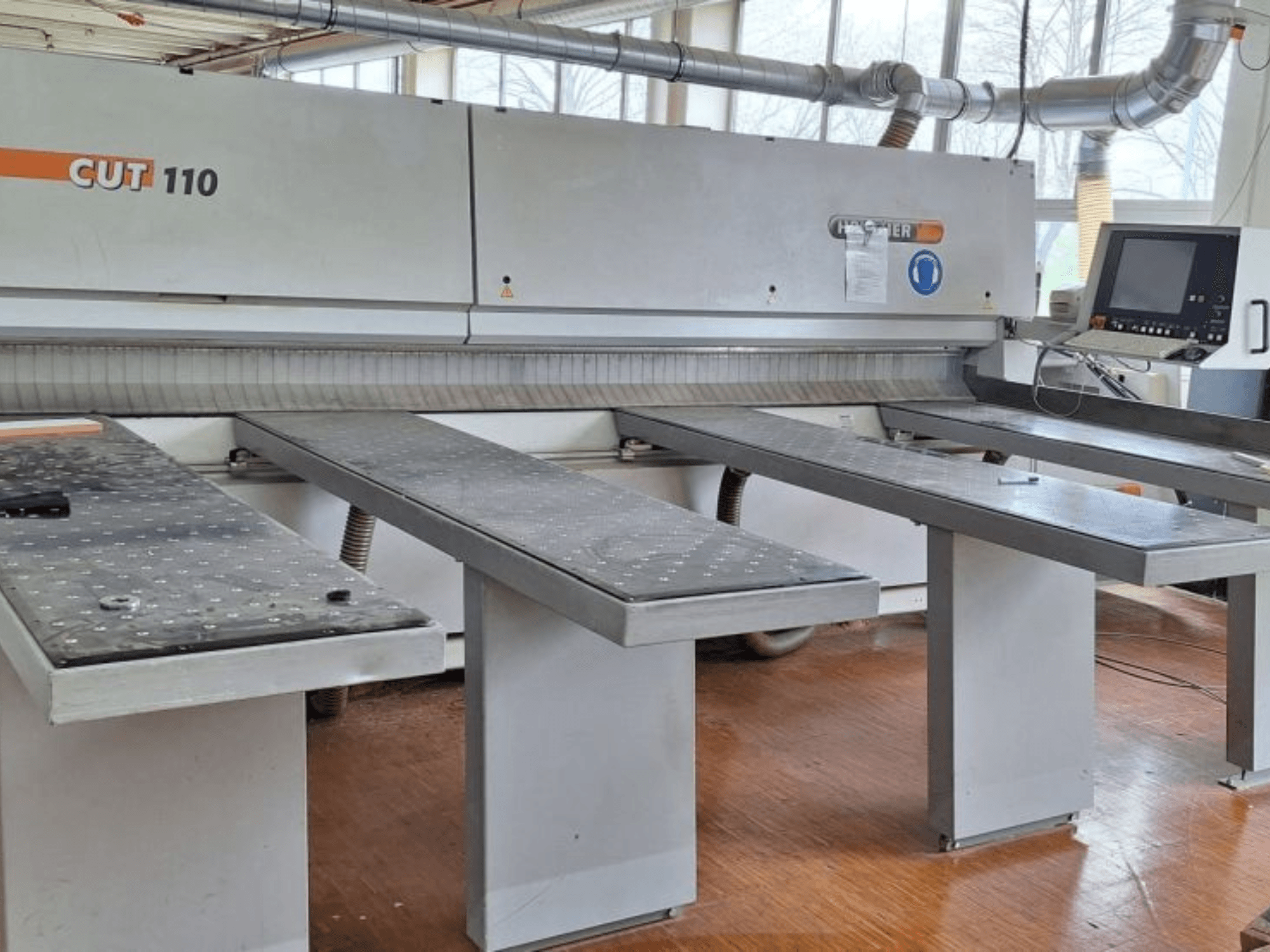

HOLZHER - 6310 CUT 110DE-SAW-HOL-2007-00002

• Condition note: not rebuilt – without warranty

• Cutting width: 2700 mm (original 5250 mm, shortened by 2550 mm to 2700 mm)

• Screen on the right

• Control: Cut Control system with touchscreen operation

• Angle clamping device on the right

• Saw carriage: main/scoring saw controlled

• Motor power: 18.5 kW (main) / 2.2 kW (scoring)

• Scoring saw: manual adjustment in width and height

• Grooving unit: 2 groove height settings (groove depth adjustable 2–12 mm, up to max. 9–19 mm)

• Label printer: TLP2742

• Cutting-out unit

• Additional blow-off unit traveling with the saw carriage

• 3 additional support tables, 2400 mm, with travel mechanism

• Control cabinet on machine side, incl. speed monitoring with safety shut-off

• Postforming unit, incl. scoring unit

• Automatic central lubrication

• Enclosed pressure beam

• Film cutting device

Additional equipment

• Optional at extra charge: Dust extraction system (€4,000.00)

  • Brand: AL-KO

  • Model: POWER UNIT 300P

  • Year of manufacture: 2011

  • Airflow: 5089 m³/h

  • Vacuum: 2050 pA

  • Motor power: 7.5 kW

  • Suction inlet: 300 mm

  • Collection: 3 tanks, 250 l each

  • Integrated automatic shut-off
