Rye Pentaxial 1710TP

Photo Gallery

Rye Pentaxial - 1710TPRS-MIL-RYE-1998-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
Rye Pentaxial 1710TP Milling

Show in original language

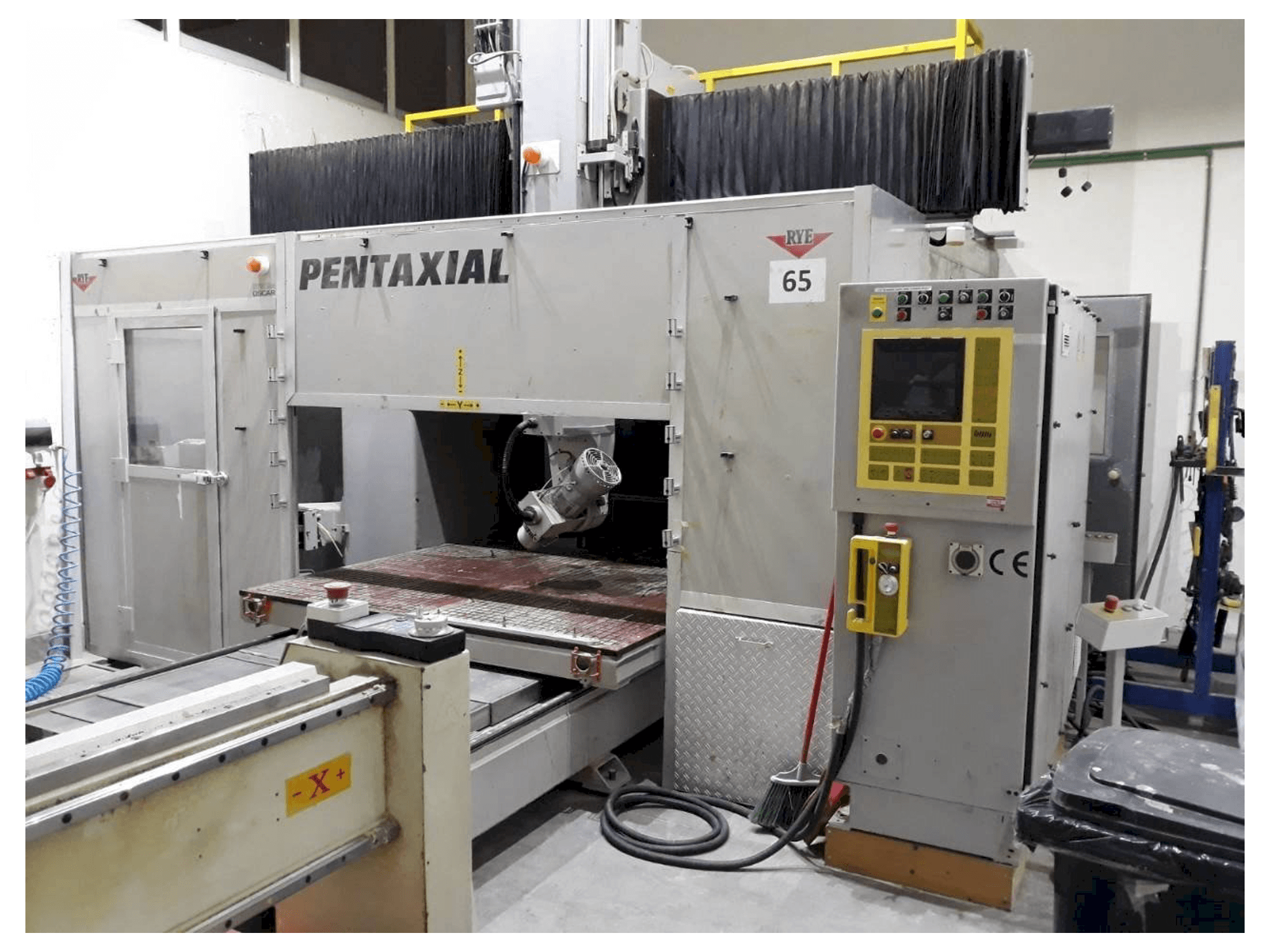

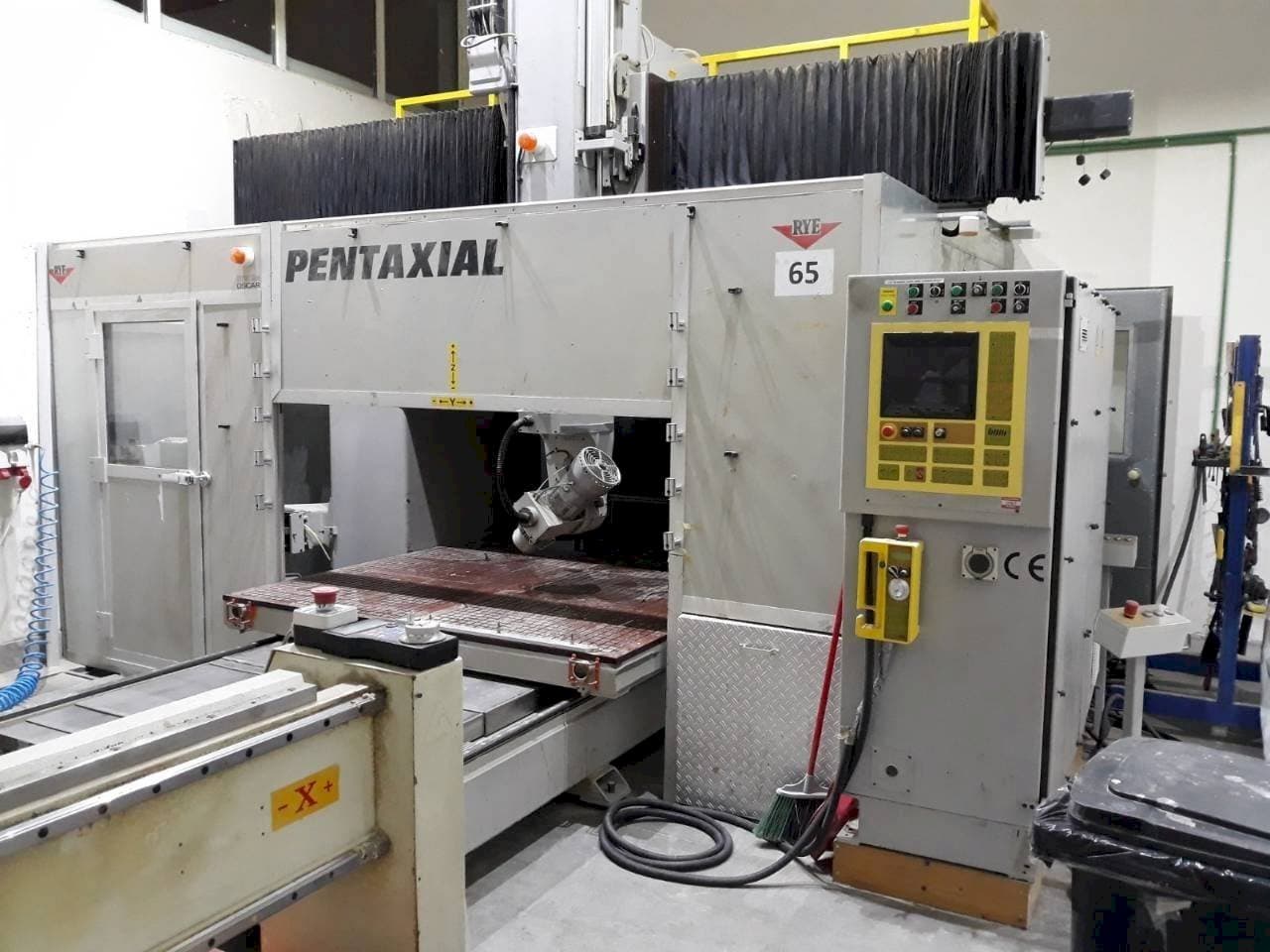

This Rye Pentaxial 1710TP Universal Machining Center was manufactured in 1998. This 6 axis machine is controlled through a BWO CNC900C Control unit. This model has a turning speed range of 1000-18000 rpm. The machine is in excellent condition of robust construction with powerful AC power servo motors.

Overview

brand: Rye Pentaxial
year: 1998
MODEL: 1710TP
application type: Milling
Location: Serbia
machine type: Universal Machining Centre

Technical Information - Rye Pentaxial 1710TP

Dimensions

Machine Depth: 5250 mm
Machine Height: 4300 mm
Machine Weight: 9000 kg
Table Length: 1700 mm
Table Width: 1000 mm

Movement

X-axis Travel: 2500 mm
Y-axis Travel: 2600 mm
Z-axis Travel: 710 mm

Technical Specification

Spindle Power: 26 kW
Spindle Speed: 18000 RPM

Additional Information

Machine Benefits

Qualitative Machine Benefits

Excellent condition of robust construction with powerful ac power servo motors.
Machine was retrofitted and pc control is set,
Mach3 cnc software
Suitable for use in the wood, aircraft and military industries.
Unique and very strong machine.

Technical Machine Benefits

Number of worktables: 2
Routing head: 10kw with 12 position rack tool changer
Max collet size: shank dia. Of 25mm
A axis (rotation): 360 degrees
B axis (rotation): 210 degrees
Protection and sound-proof enclosure of the working units
Two working tables with internal vacuum system to lock the working pieces
The movable tables in x and c direction are independent and can work in pendulum or synchronized as a single table.
Holtrop & jansma cabin measuring 270x300 cm with two doors armored with sound insulation panels.

Machine History

Material type

Composites, aluminum, wood and plastic

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
