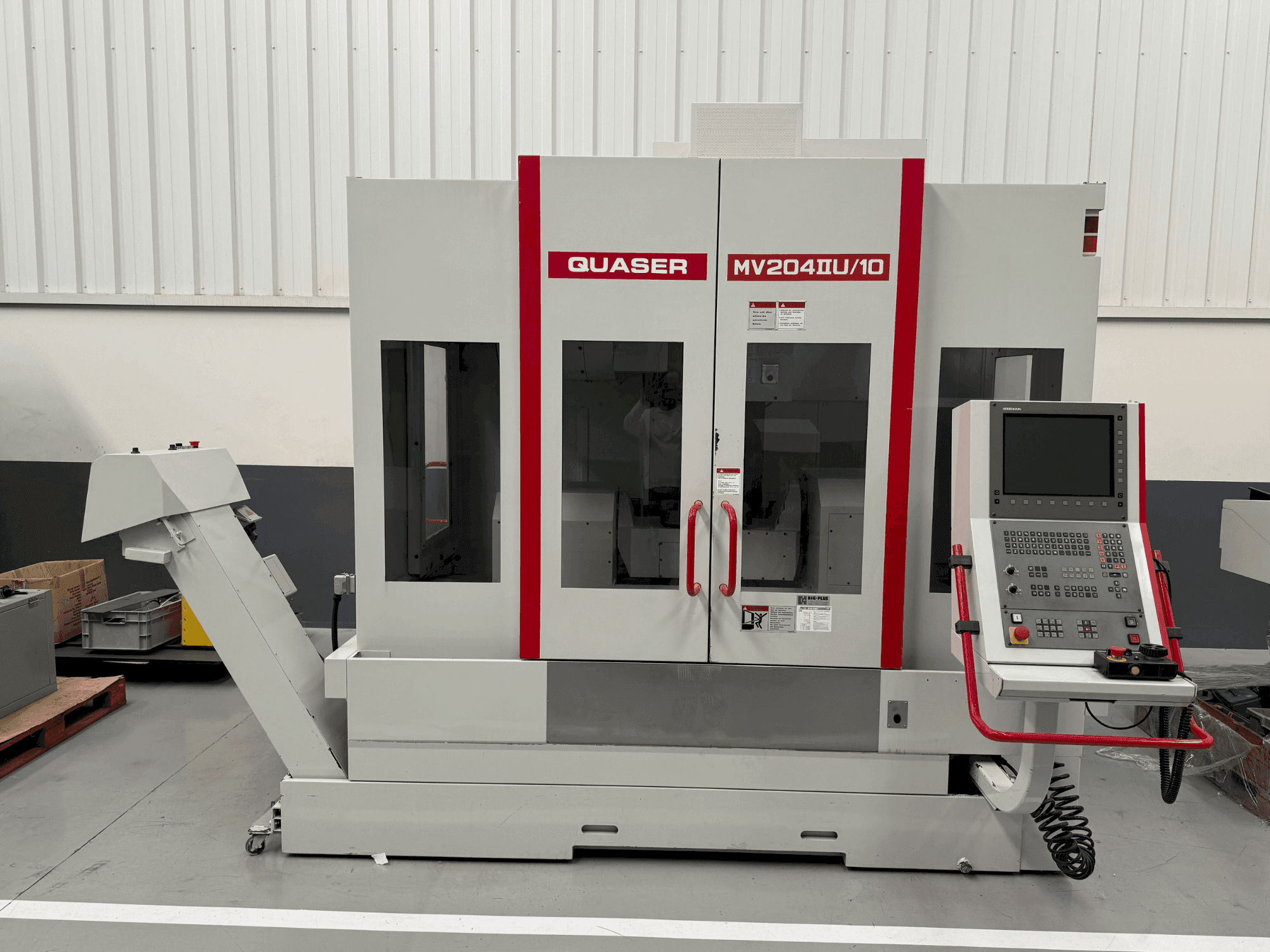

Quaser - MV 204 IIU/10ES-MIL-QUA-2002-00001

Machine Benefits

Technical machine benefits:

• Power On Hours: 13975 h

• Spindle Hours: 6258 h

• Table 1 Size: Ø 280 mm

• Table 2 Size: Ø 500 mm

• Table 3 Size: 600 × 400 mm

• Max Weight Allowed on Table: 265 kg

• Min-Max Distance Over Table: 150–760 mm

• Tilting Spindle Head Range (A Axis): ±110°

• A Axis Positioning: 0.001°

• Table Turning (C Axis): 360°

• C Axis Positioning: 0.001°

• Rapid Feed X/Y/Z Axis: 32000 mm/min

• Working Feed X/Y/Z Axis: 15000 mm/min

Additional Equipment

• ATC Tool Changer: Included

• ATC Positions: 32

• ATC System: RANDOM

• Max Tool Length: 280 mm

• Max Tool Weight: 7 kg

• Chip Conveyor: Included

• Internal Coolant 20 Bar: Included

• Coolant Tank Capacity: 280 l

• Electrical Cabinet Coolant: Included

• Flushing Gun: Included

• Portable Handwheel: HEIDENHAIN HR 310

• Full Guarding: Included

• Total Installed Power: 30 kVA

Extra information

• Spindle Speed: 10000 rpm

• Spindle Taper: BT-40

• Spindle Motor Power: 15 / 33 kW

• Spindle Torque: 192 / 189 Nm
