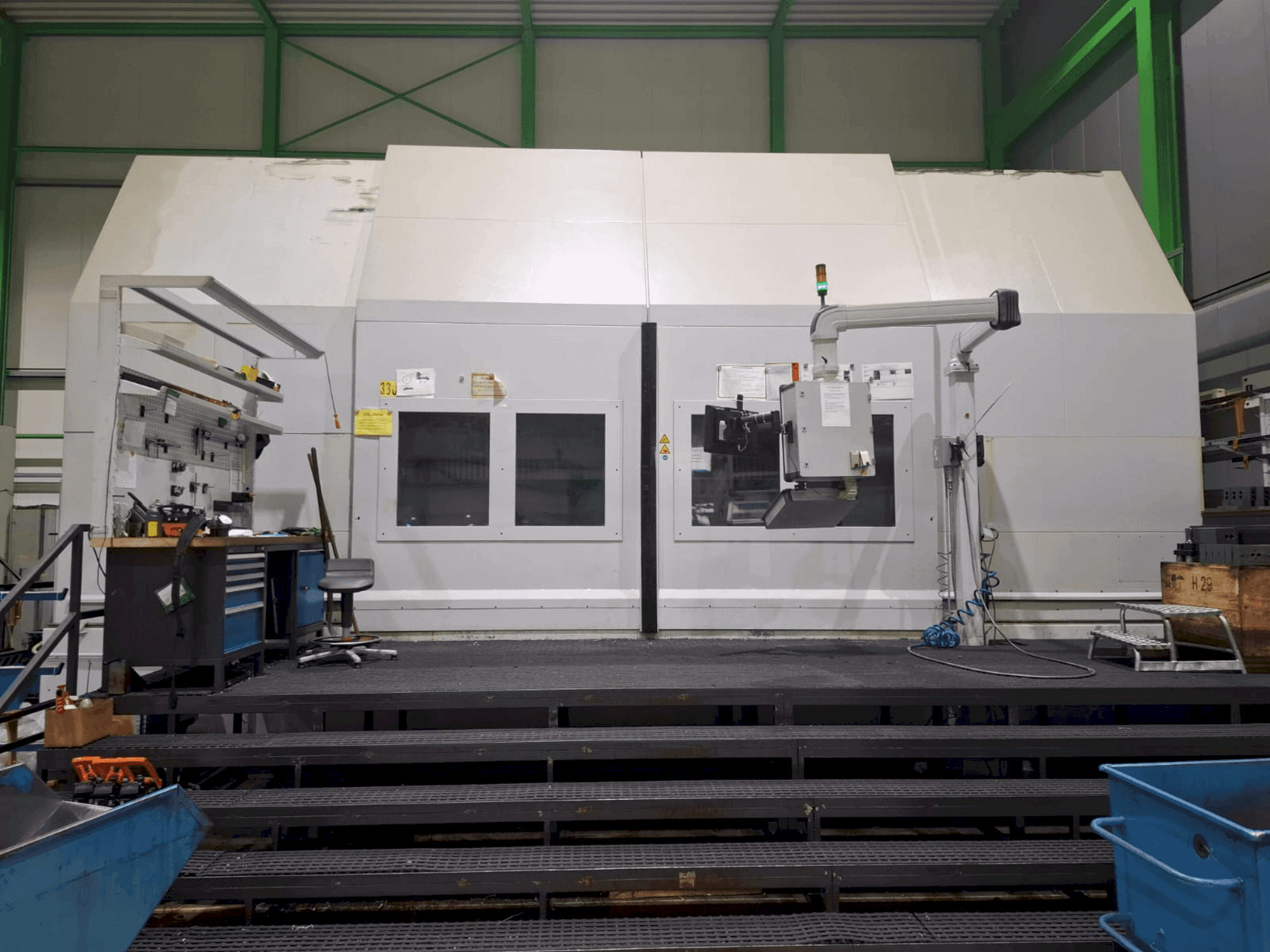

Pittler - PV4000DE-TUR-PIT-2018-00001

Additional Information

Machine Benefits

• Technical Machine Benefits:
  • - Axes: 5 / type: vertical turning machine with 1 turning spindle, 2 tool carriers on 2 cross slides / max. Swing diameter: 3800 mm / spindle load capacity (chuck + workpiece): 35000 kg / noise level: ≤80 db(a) according to en 12478
  • - X1-axis travel: 2800 mm / x2-axis travel: 3200 mm / z-axis travel: 1000 mm / rapid traverse speed: x: 32 m/min, z: 20 m/min / feed force: 22 kn (x and z) / guides: backlash-free roller linear guides / position measuring system: linear
  • - Type: siemens sinumerik 840 d sl / nc memory: 10 mb / user interface: hmi operate, op019 with 19" color display / software option: programsync / network interface: ethernet, dnc option / remote service: via teamviewer, teleservice for plc & nc
  • - Motor: liquid-cooled asynchronous motor with field-oriented control / max. Speed: 100 rpm / torque: 67000 nm at 40% duty cycle / drive power: 200 kw at 100% duty cycle / bearing: precision axial deep-groove ball bearing, Ø 1400 mm / spindle flange: Ø 1900 mm / features: collision protection, alignment aid, water cooling
  • - Tool system: capto c8 / 20 tool carriers with direct coolant supply / double tool holder (mfu): for turning & drilling, speed up to 6000 rpm, torque: 120 nm (100% duty cycle), b-axis: stepless angular positioning / tool magazine (left): 25 positions (chain type), max. Diameter: 150 mm, length: 400 mm, weight: 20 kg / tool magazine (right): 41 positions (for mfu head)
  • - Hydraulic unit: with proportional valve, selectable clamping pressure / electronic handwheel: siemens ht2 / siemens safety integrated: slide & spindle movements with door open / measuring probe: ≤5 µm accuracy, wireless, tool-changeable / air cleaner: uas smog hog sh-m20 225 / t tr e, 1. 5 kw, 4000 m³/h / automatic two-piece work area door / walk-in work area: with tread plate
  • - Coolant system: 6 bar, 80 l/min / paper band filter: knoll kf150/1550, 150 l/min, ~60 µm filtration, 1550 l tank / high-pressure pump: 70 bar, frequency controlled (parallel supply possible) / immersion cooler: installed in filter tank / oil belt skimmer: friess type 1u / chip conveyor: knoll, hinge belt type, discharge height 1150 mm
  • - Röhm 12-jaw compensating chuck (kfg 3500/3/6/12), Ø 3500 mm, height 500 mm / tandem cylinder with oil distributor & measuring system / jaw stroke: 55 mm / compensation per jaw: ±6 mm / piston stroke: 120 mm / max. Clamping pressure: 60 bar / total clamping force: 10–200 kn / max. Speed: 100 rpm / chuck weight: ~30000 kg
