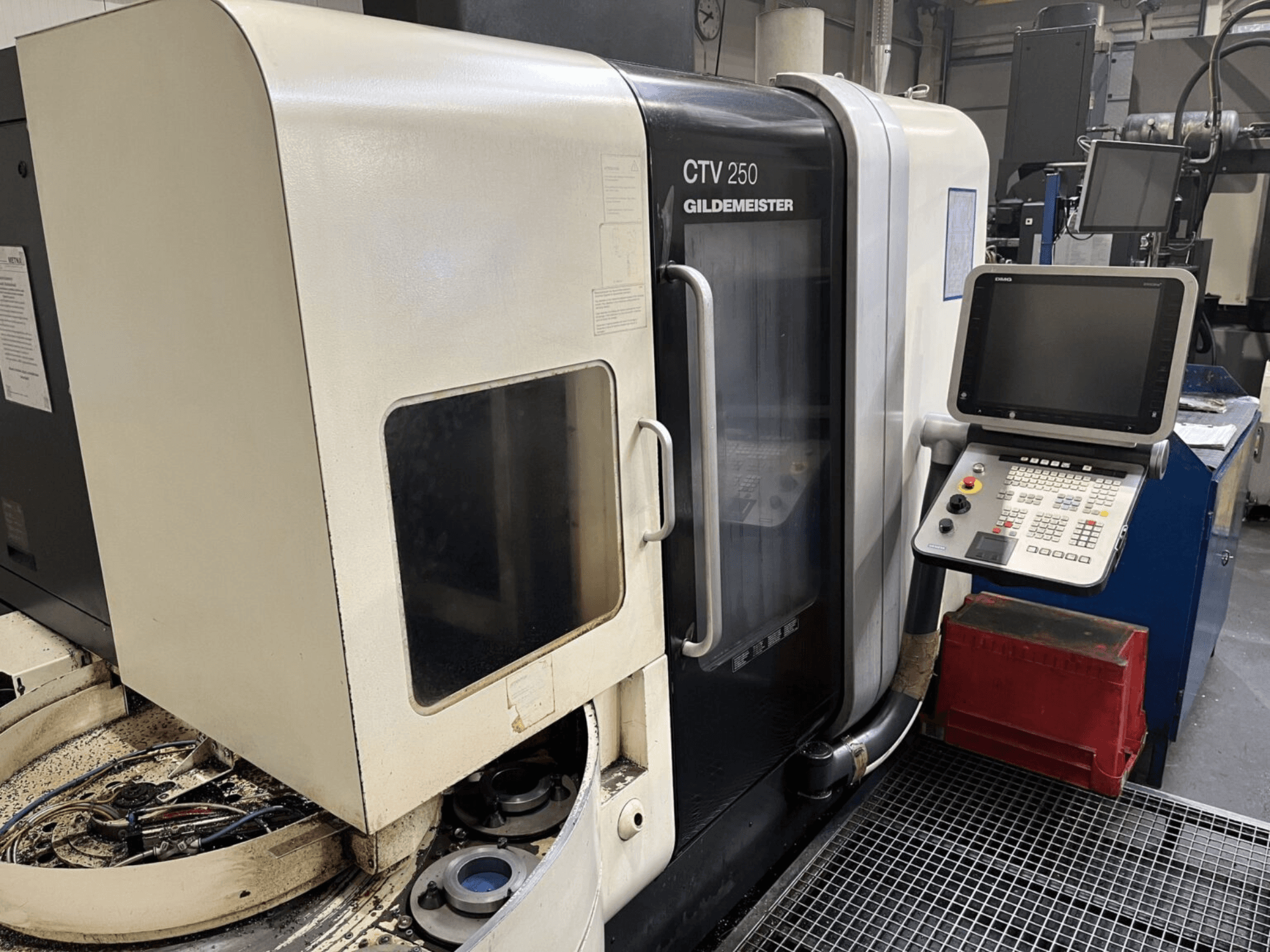

This 3-axis DMG CTV-250 was manufactured in 2012. It features a maximum workpiece diameter of approximately 350 mm and a chuck diameter of 250 mm. The machine is equipped with a 12-position turret and operates at spindle speeds of up to 5000 rpm. If you are looking to get high-quality turning capabilities, consider the DMG CTV-250 vertical turning machine we have for sale. Contact us for further details.
Overview
- brand: DMG
- year: 2012
- MODEL: CTV-250
- application type: Turning
- Location: Hungary
- machine type: Vertical Turning Machine
- control unit brand: SIEMENS
Technical Information - DMG CTV-250
Control Unit
- Control Brand: SIEMENS
- Control Model: Sinumerik 840D
Movement
- Number of Axes: 3
- X-axis Travel: 1100 mm
- Y-axis Travel: 180 mm
- Z-axis Travel: 500 mm
Technical Specification
- Driven Tools: No
- Spindle Speed: 5000 RPM
Additional Information
Spindle operating hours: 38,984 h
Axis travels (approx.): X 925–1100 mm; Z 300–350 mm; Y (optional) ±90 mm
Chuck diameter: 250 mm
Turret: 12 positions
Workpiece capacity (model typical): Max diameter approx. 350 mm; max length approx. 200 mm; max weight typically 100–300 kg (depending on setup)
Current configured workpiece diameter (turning): Ø 320 mm
Additional equipment
Chip conveyor
High-pressure coolant system with paper filter
Automatic workpiece loading from tray
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
