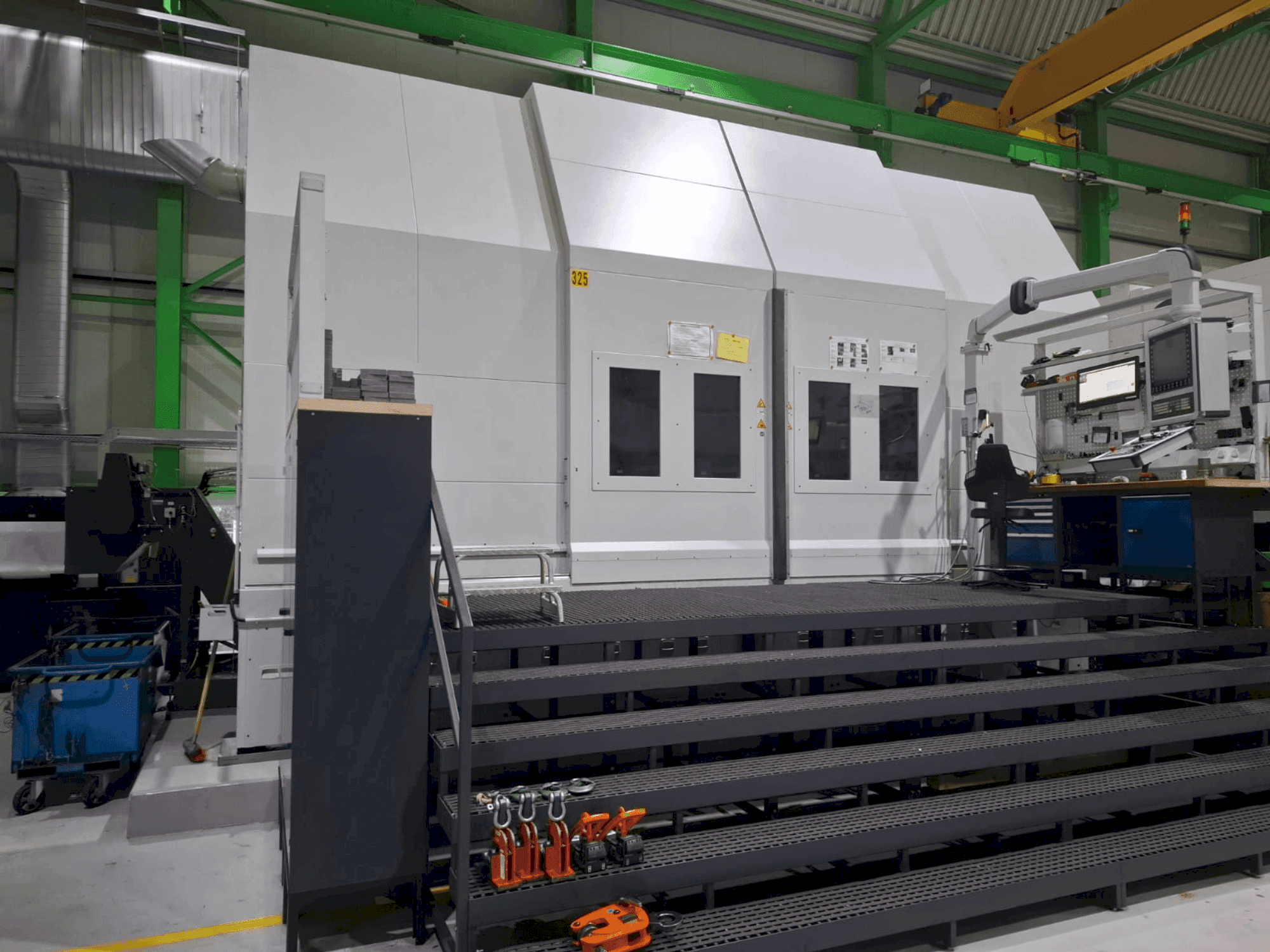

Pittler - PV2500DE-TUR-PIT-2021-00001

Additional equipment

• Measuring System: Linear in both axes

Machine Benefits

Technical Machine Benefits

• Operating voltage: 400 v, 50 hz with a resilient neutral conductor / control voltage: 24 v, dc / lighting voltage: 230 v, 50 hz / theoretical peak power: 245 kw / sound level: ≤80 db(a) / protection class: ip 54
• Microprocessor cnc path control: siemens sinumerik 840 d sl / nc memory: 10 mb / operating interface: hmi operate / remote maintenance: teamviewer installed / network interface: dnc-option with configurable ip address / air purifier: uas smog hog, type sh-m20 225/ttreo 15 kw / air capacity: 4000 m³/h / measuring probe accuracy: ≤5 μm
• Maximum torque: 53000 nm / drive power: 2×103 kw = 206 kw
• Horizontal (x-axis) travel: 2×2700 mm / vertical (y-axis) travel: 2×1000 mm / rapid traverse speed (x-axis): 40 m/min / rapid traverse speed (z-axis): 24 m/min / feed force (both axes): 22 kn
• Max. Swing diameter: 3000 mm / largest turning diameter: 2800 mm / spindle load capacity: 25000 kg
• Spindle diameter: 360 mm / cylindrical spindle flange diameter: 1100 mm
• Tool carrier: double tool holder with capto c8 interface / coolant pressure (through driven and turning tool): limited to 70 bar / high-pressure coolant pump: 70 bar / coolant supply: 6 bar, 80 l/min / paper band filter capacity: 400 l/min
• Left magazine: 25 positions, capto c8 / right magazine: 41 positions, capto c8 / maximum tool diameter: 150 mm / maximum tool weight: 20 kg / maximum tool length: 400 mm / driven tools: up to 6000 rpm
