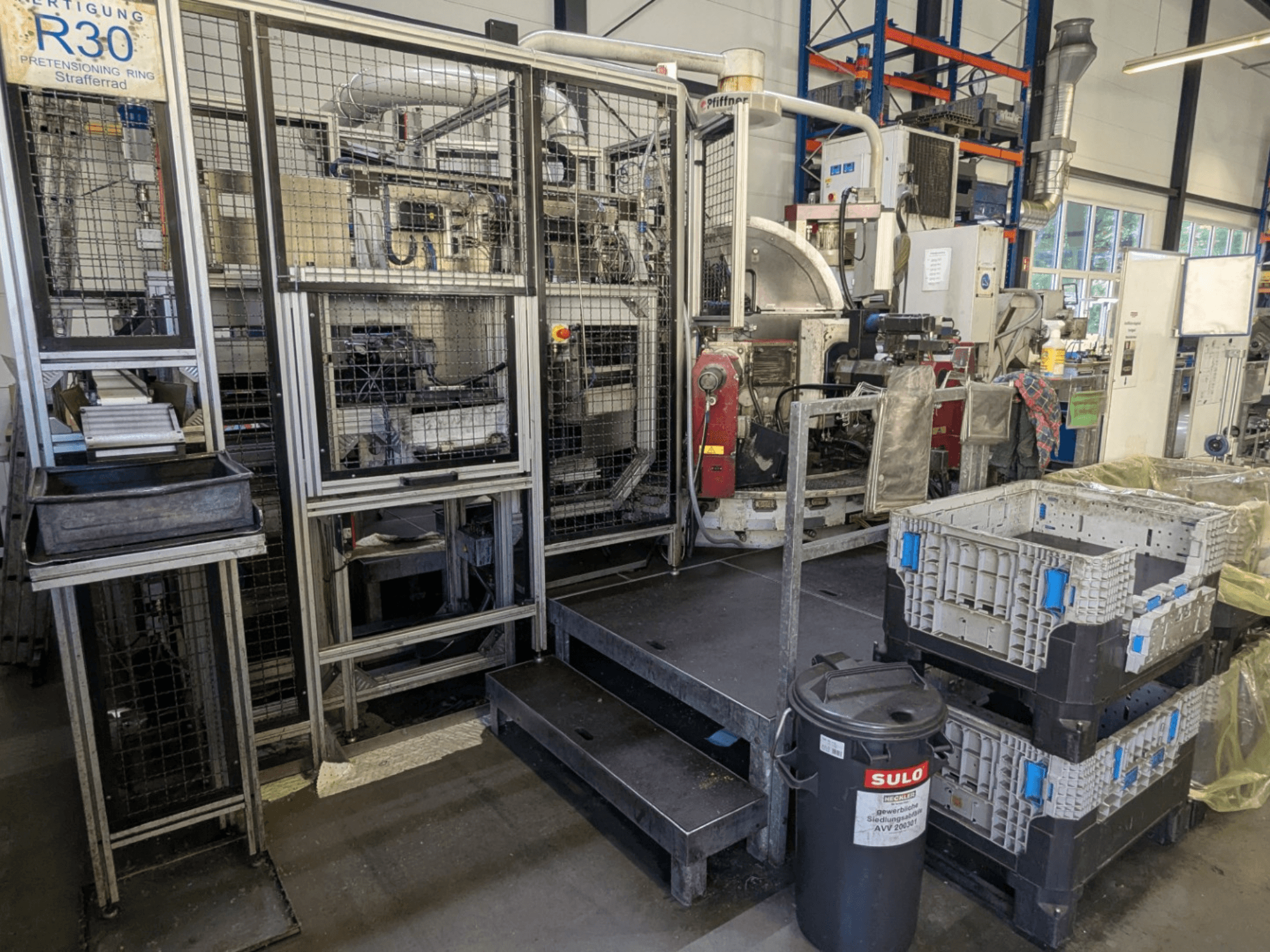

Horizontal Rotary Transfer System manufactured in 2008. This PFIFFNER HB 32/16 features complete machining on both sides in one process, with a maximum clamping diameter of 32 mm and a maximum workpiece length of 150 mm. It includes a 16-position rotary index table with an indexing time of 0.7 seconds. If you are looking to get high-quality machining capabilities, consider the PFIFFNER HB 32/16 machine we have for sale. Contact us for further details.
Overview
- brand: PFIFFNER
- year: 2008
- MODEL: HB 32/16
- application type: Other Machine Tools
- Location: Germany
- machine type: Machine Tool
- control unit brand: SIEMENS
Technical Information - PFIFFNER HB 32/16
Control Unit
- Control Brand: SIEMENS
- Control Model: SIMATIC S7
Dimensions
- Machine Height: 2900 mm
- Machine Length: 9800 mm
- Machine Width: 4000 mm
Technical Specification
- Tool Stations: 16
Additional Information
Horizontal Rotary Transfer System
Complete machining on both sides in one process
Number of Stations: 16
Maximum Horizontal Machining Units: 16
Maximum Vertical Machining Units: 8
Total Machining Units: 24
Rotary Index Table: 16-position
Indexing Time: 0.7 seconds
Number of Collets: 16
Collet Type: B32
Maximum Clamping Diameter: 32 mm
Maximum Workpiece Length: 150 mm
Machine Weight: Approx. 6,500 kg (including 4 m bar magazine)
Machine Dimensions:
Length: 9.8 m
Width: 4.0 m
Height: 2.9 m
Workpieces can be machined from both sides.
Special turning unit rotates workpieces by 180°
Machine control based on Siemens SIMATIC S7
Prepared for Siemens SINUMERIK 840D
Integrated AS-i and PROFIBUS
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
