C.M. - T-10DE-OTH-CMX-2006-00001

Name: C.M. T-10
Brand: C.M.
SKU: DE-OTH-CMX-2006-00001
Price: 21446 GBP
Availability: InStock

£ 21,446

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used C.M. T-10 - Machine Tool For Sale | gindumac.com

Show in original language

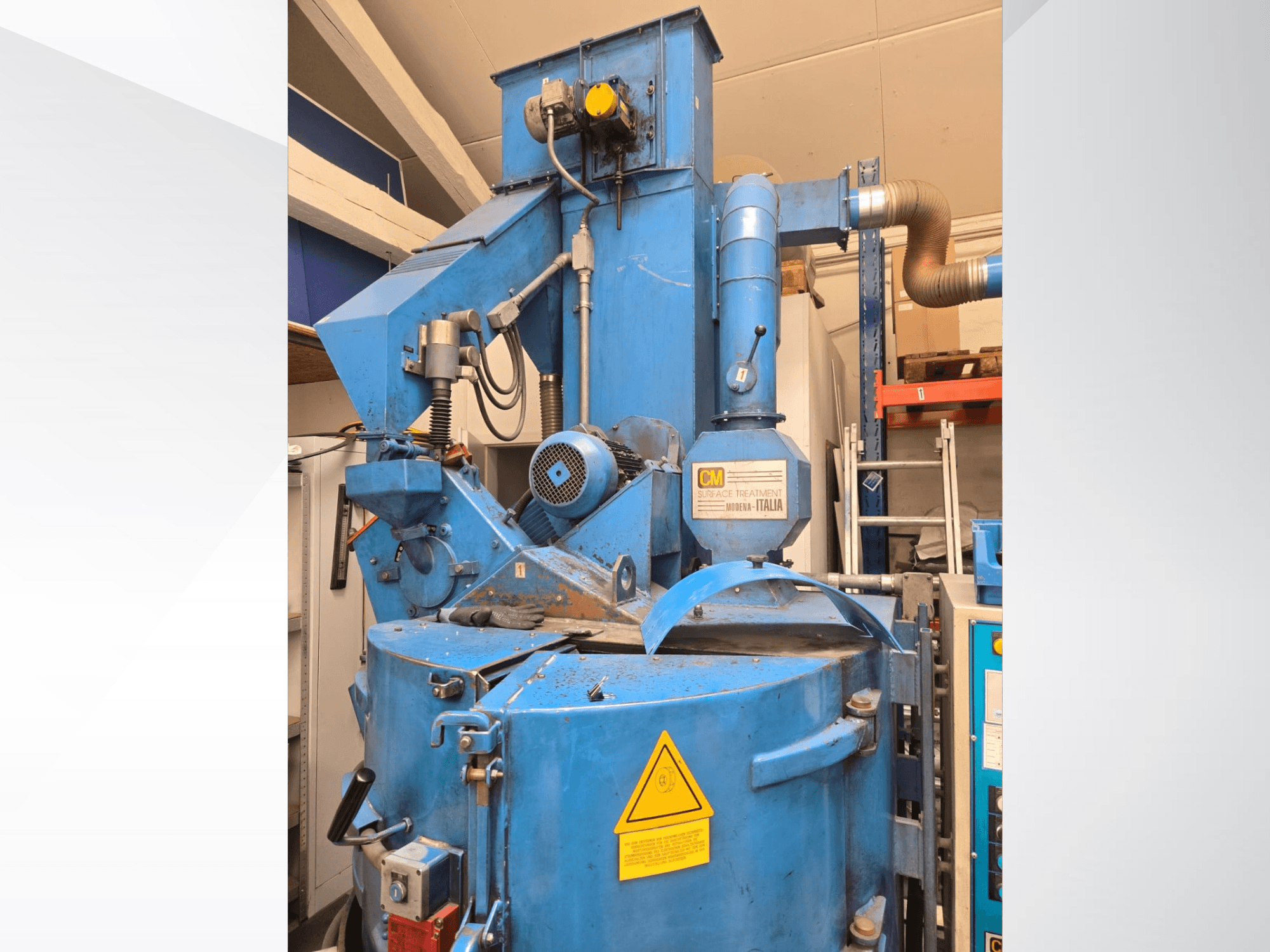

Rotary table wheel blast machine manufactured in 2006. This C.M. T-10 features a turntable diameter of 1,000 mm and a usable height in the workspace of 450 mm. It has a maximum permissible table load of 900 kg and operates with a blast wheel power of 5.5 kW. If you are looking to get high-quality blasting capabilities, consider the C.M. T-10 machine we have for sale. Contact us for further details.

Overview

brand: C.M.
year: 2006
MODEL: T-10
production hours: 12169
application type: Other Machine Tools
Location: Germany
machine type: Machine Tool

Technical Information - C.M. T-10

Dimensions

Machine Weight: 1400 kg

Additional Information

- Mains Voltage: 400 V

- Number of Phases: 3 Ph / 3+PE

- Frequency: 50 Hz

- Operating Load (Power): 4.741 kW

- Operating Load (Current): 10.02 A

- Short Circuit Protection / Interrupting Capacity: 30 kA

- Max. Motor Current: 7.90 A

- Blast Wheel Power: 5.5 kW

- Turntable Diameter: 1,000 mm

- Usable Height in Workspace: 450 mm

- Max. Permissible Table Load: 900 kg

- Control Unit / HMI: ESA VT50

- Safety Interlock Switch: Telemecanique XC2SE7311 / XC2SE

- Included Equipment / Scope of Delivery: All required cables and hoses for direct commissioning, screw holders for angular positioning of workpieces inside the blasting chamber

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

** The default scope of delivery includes the machine only. Accessories and peripheral equipment will be confirmed through binding agreements during the purchasing process.
