➤ Used PANHANS POLYPAN 47 Panel Saw For sale | gindumac.com

Show in original language

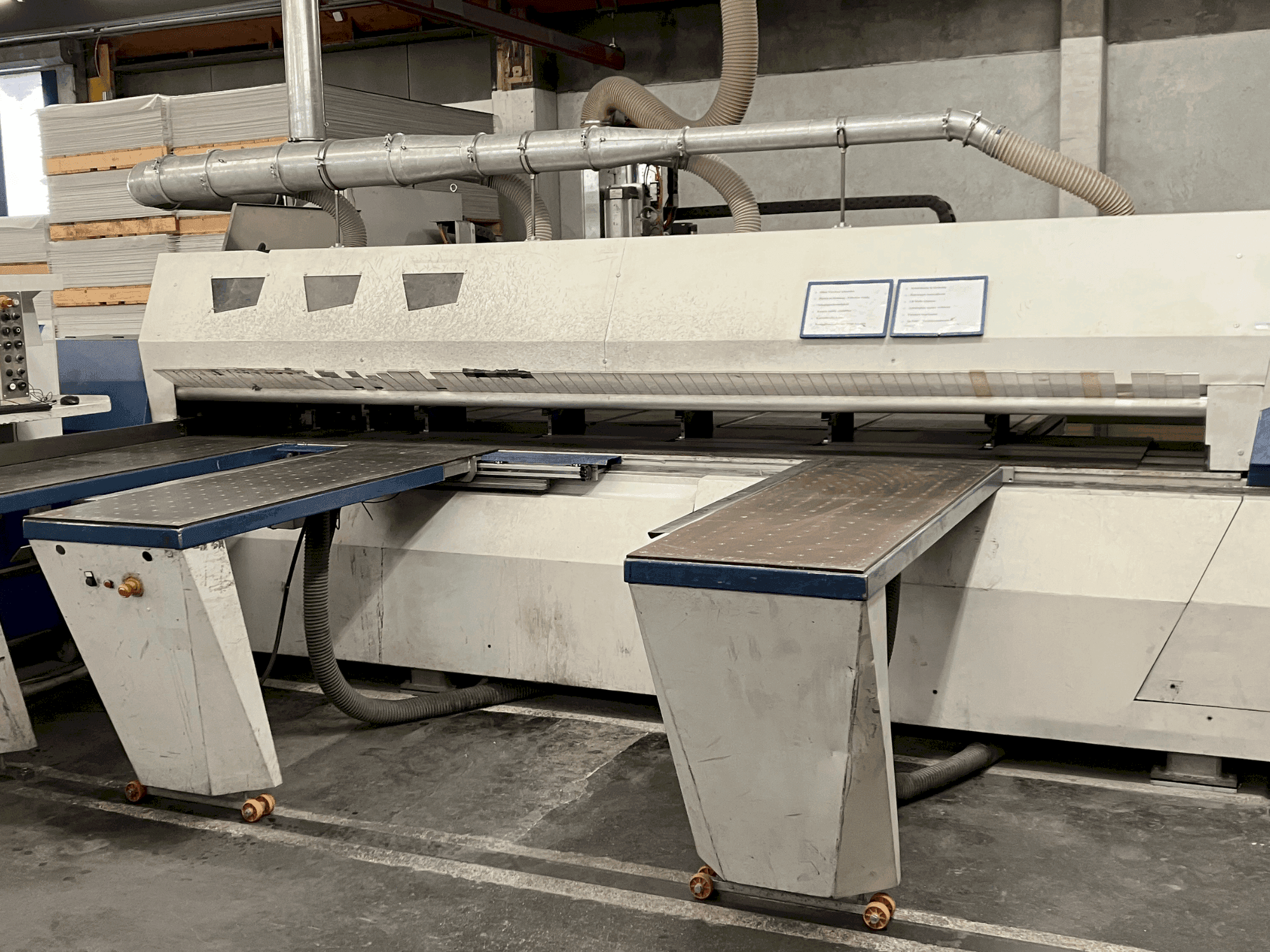

This 3-axis PANHANS POLYPAN 47 was manufactured in 2006. It features 4200 mm cutting length and width, maximum cutting heights of 72 mm at 0° and 40 mm at 47°, and a saw carriage speed up to 100 m/min. Main motor power is 13.5 kW, with a scoring unit. Weighs 8100 kg. If you are looking to get high quality sawing capabilities consider the PANHANS POLYPAN 47 machine we have for sale. Contact us for further details.

Overview

brand: PANHANS
year: 2006
MODEL: 2006
production hours: 27750
application type: Sawing (Wood)
Location: Germany
machine type: Panel Saw

Technical Information - PANHANS 2006

General Data

Machine weight: 8100 kg

Main drive

Spindle speed range: 6840 1/MIN
Number of axis: 3

Movement

X-AXIS Movement: 300 mm
X-AXIS Rapid traverse: 80 m/min
Y-AXIS Movement: 100 mm
Y-AXIS Rapid traverse: 80 m/min
Z-AXIS Rapid traverse: 20 m/min

Additional Information

Configuration: Machine including control cabinet
Cutting length (SL): 4200 mm
Cutting width (SB): 4200 mm
Max cutting height (saw blade vertical 0°): 72 mm
Max cutting height (saw blade swiveled 47°): 40 mm
Cutting accuracy (saw blade vertical 0°): +/- 0.1 mm
Cutting accuracy (saw blade swiveled): +/- 0.2 mm
Angle accuracy (feed speed < 10 m/min): +/- 1 mm
Angle accuracy (feed speed > 10 m/min): +/- 2.5 mm
Feed speed (saw carriage forward/reverse): 0–100 m/min
Feed speed (width stop forward): 25 m/min
Feed speed (width stop reverse): 100 mm
Axis travels (minimum plate size): X = 300 mm, Y = 100 mm
Axis travels (maximum plate size): X = 2800 mm, Y = 750 mm
Max drilling diameter: 13 mm
Max total length: 115 mm
Number of tools: 1 drilling spindle
Tool holder: Quick-release chuck DM 1-13
Connection values
Total connection value: 21.0 kVA
Nominal current: 3x 32 A
Pneumatic connection: 8 bar (minimum 6 bar)
Air consumption: 3 liters/min per clamp
Sound pressure level (Lpa) at operator position: 86 dB(A)
Sound power level (LWA): 103 dB(A)

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
